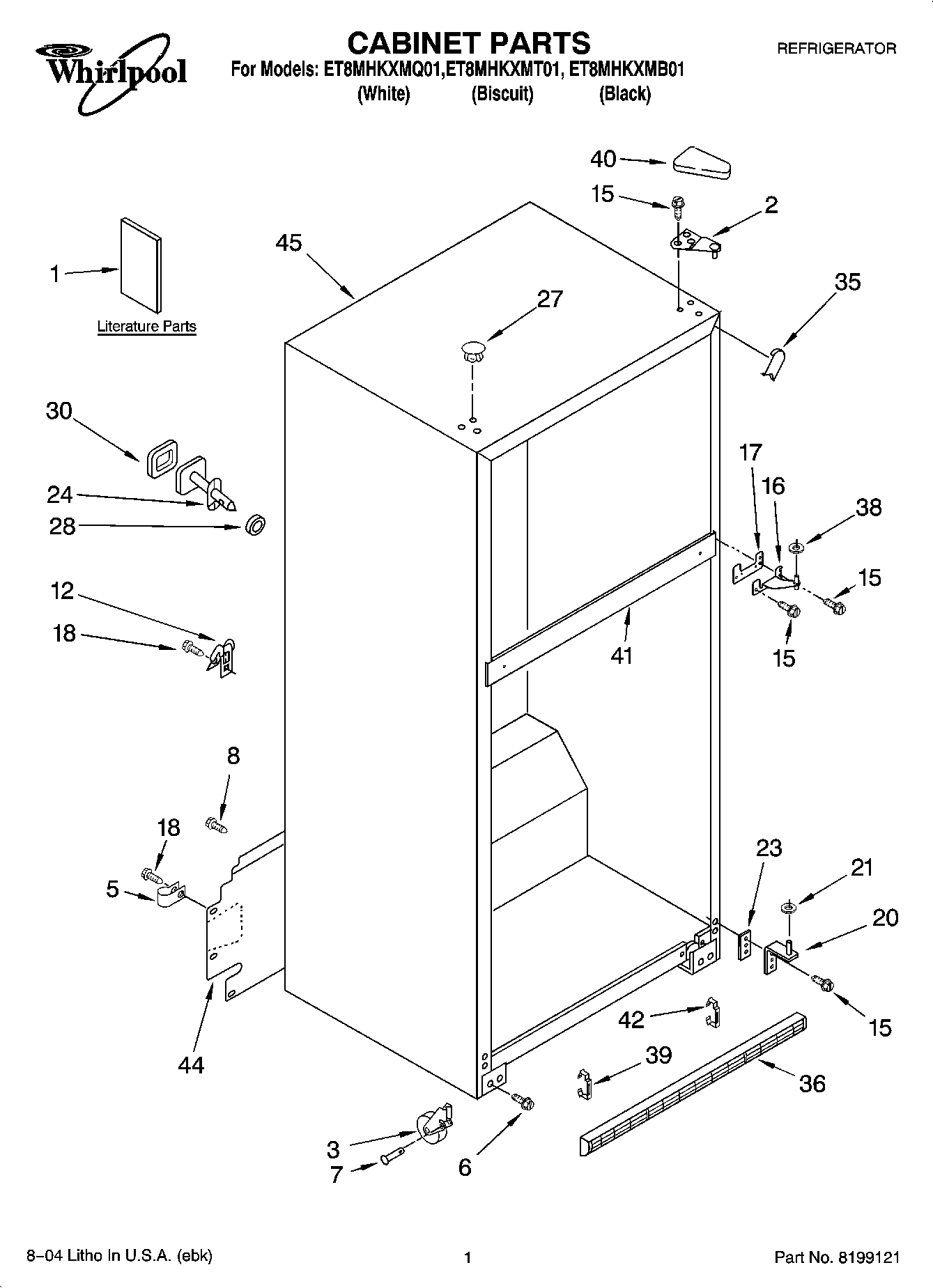

ET8MHKXMB01 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Customer Instructions
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	Use & Care Guide
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP489427 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	WP487576 Whirlpool Washer
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2183998 Whirlpool Refrigerator Button Plug
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
35	W11252732 Whirlpool Refrigerator Filler
35	WPW10283959 Whirlpool Refrigerator Filler
35	W10283958 Whirlpool Refrigerator Filler
36	WP2254386 Whirlpool Refrigerator Grille
36	Grille (Includes Illus. 4 & 24) (Black)
38	WP489467 Whirlpool Hinge Shim
39	CLIP, GRILLE
40	WP2213360 Whirlpool Refrigerator Cover
40	WP2213363 Whirlpool Refrigerator Cover
40	2213364 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
42	2254385 Whirlpool Refrigerator Clip
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
