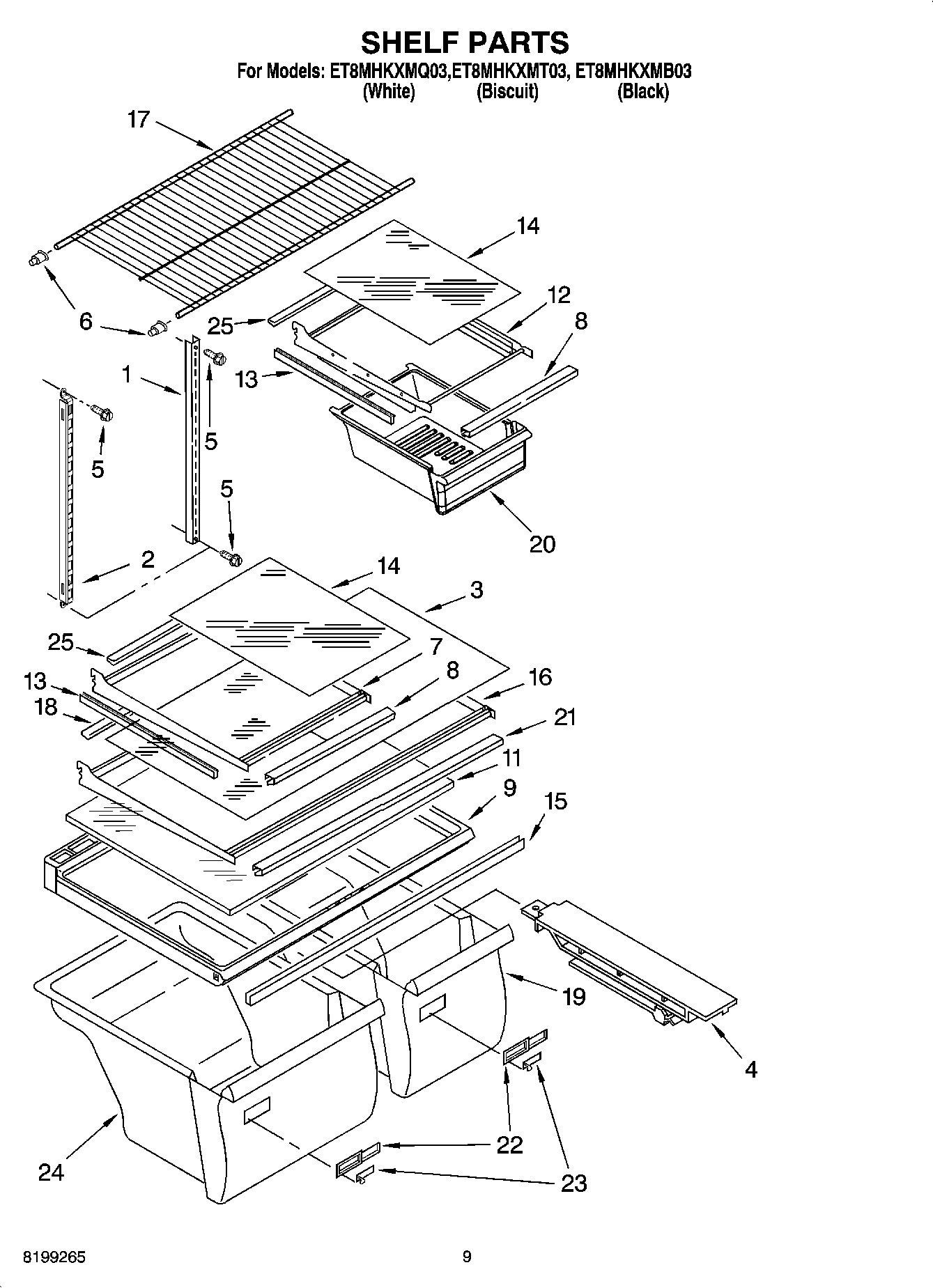

ET8MHKXMB03 05 – SHELF PARTS, OPTIONAL PARTS

ET8MHKXMB03 05 – SHELF PARTS, OPTIONAL PARTS

Written by

in

ET8MHKXMB03 05 – SHELF PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI53672A3
WPL ARI53671A8
WPL ARI53670A7
WPL ARI53669A5
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI53673A5
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WPL ARI53674A1
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Glass, Full Shelf
4WP2163835 Whirlpool Track Assembly
5WP489478 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Shelf, Cantilever (Complete)
7Shelf, Catnilever
8Trim, Shelf Front
9WP2314548 Whirlpool Refrigerator Cover
11WP2169921 Whirlpool Refrigerator Glass Shelf
12Shelf, Cantilever Meat Pan
12Shelf, Cantilever Meat Pan (Complete)
13Trim, Shelf Side
14Glass, Half Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
16(Complete Shelf Not Shown Includes Items 3,13,16,18 & 21)
17Shelf, Freezer
19W10856580 Whirlpool Crisper Pan
20PAN-MEAT
21Trim, Shelf (Front)
22WP2212446 Whirlpool Refrigerator Control Body
23WP2176222 Whirlpool Refrigerator Slide
24W10854037 Whirlpool Refrigerator Crisper Pan
25WP2188689 Whirlpool Refrigerator Shelf Trim
