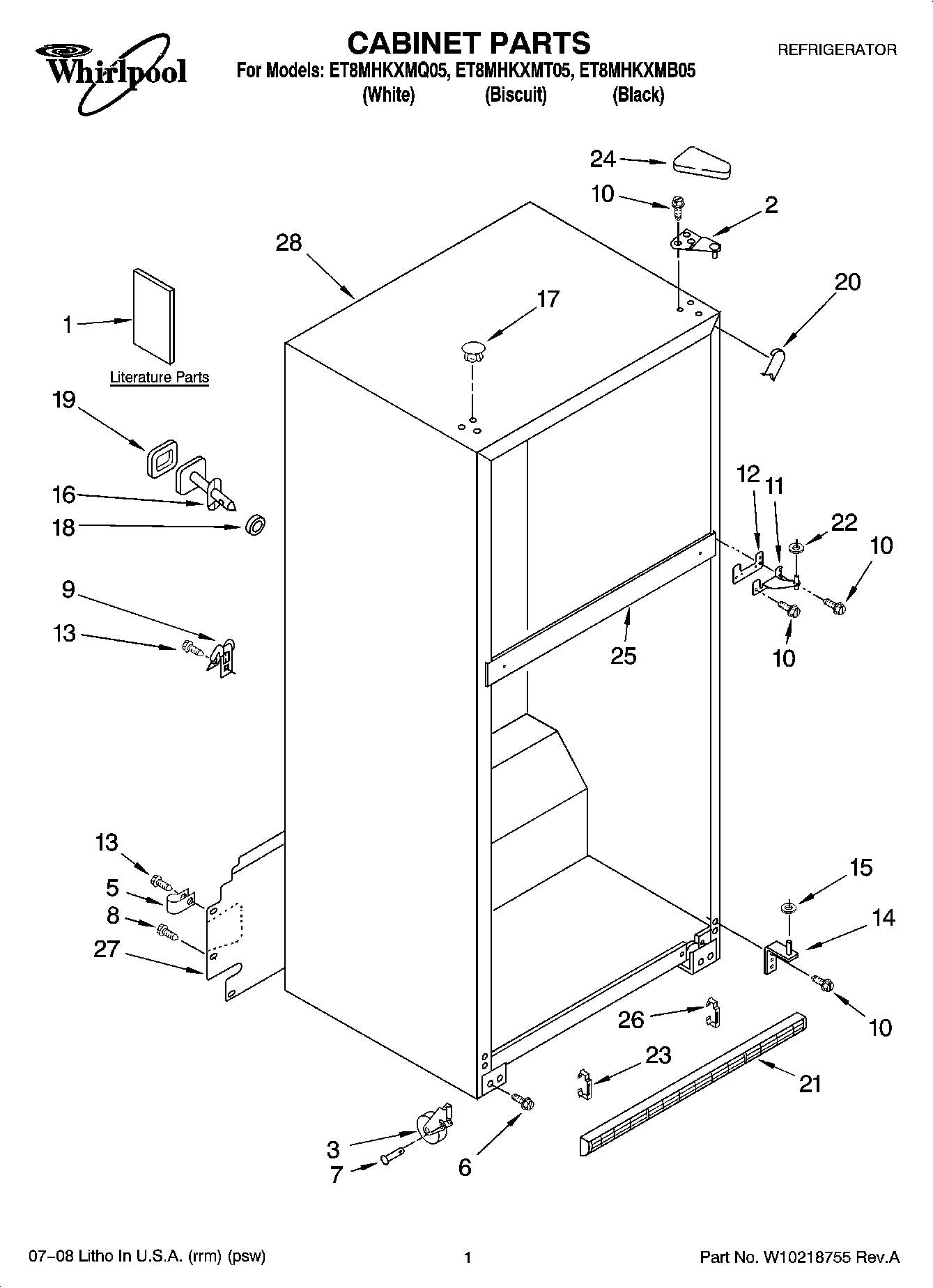

ET8MHKXMB05 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide (Bilingual)
1Use & Care Guide (Trilingual)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Service & Wiring Sheet
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
6WP3400504 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
8WP489427 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
15WP487576 Whirlpool Washer
16Fitting, Water Tube (Not Serviced)
17Hole Plug (6) (Biscuit)
17WP2183998 Whirlpool Refrigerator Button Plug
17WP2151652 Whirlpool Refrigerator Button Plug
18Seal, Front (Not Serviced)
19Seal, Rear (Not Serviced)
20WPW10283959 Whirlpool Refrigerator Filler
20W11252732 Whirlpool Refrigerator Filler
20W10283958 Whirlpool Refrigerator Filler
21WP2254386 Whirlpool Refrigerator Grille
21Grille (Includes Illus. 4 & 24) (Black)
22WP489467 Whirlpool Hinge Shim
23CLIP, GRILLE
242213364 Whirlpool Refrigerator Cover
24WP2213360 Whirlpool Refrigerator Cover
24WP2213363 Whirlpool Refrigerator Cover
25Rail, Center (Not Serviced)
262254385 Whirlpool Refrigerator Clip
27Cover, Unit
28Cabinet, (Not A Serviceable Part)
