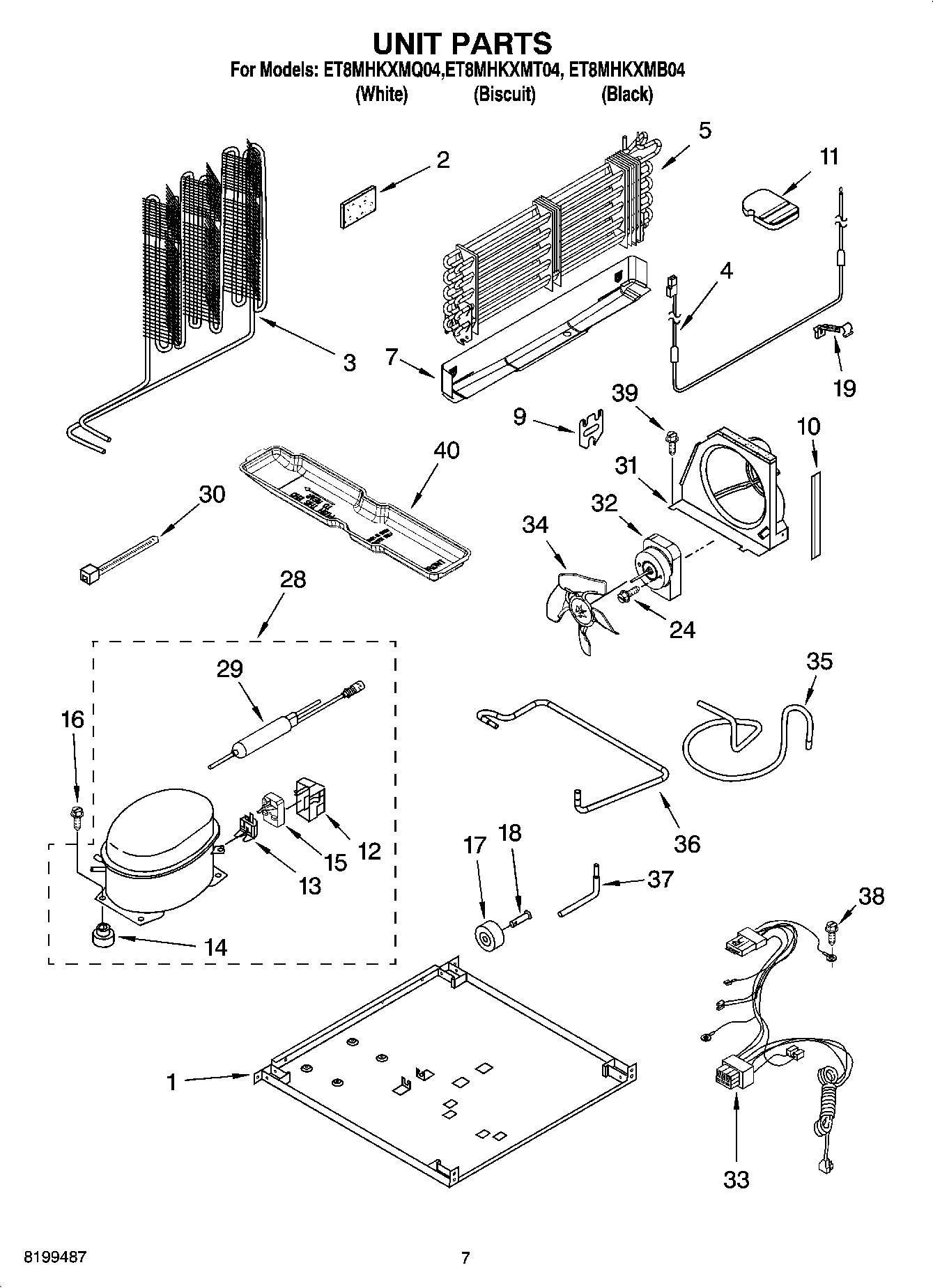

ET8MHKXMQ04 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	Support Block
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2302290 Whirlpool Refrigerator Overload
13	WP4387938 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WP2258450 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
24	WPW10171469 Whirlpool Refrigerator Screw
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	Air Baffle
32	WP2188874 Whirlpool Refrigerator Condenser Motor
33	Wire Assy. Unit
34	W11458267 Whirlpool Refrigerator Fan Blade
35	Tube, Discharge
36	2205293 Whirlpool Refrigerator Tube
37	W11676464 Whirlpool Tube
38	WP489128 Whirlpool Refrigerator Screw
39	3400518 Whirlpool Oven Foot Mount Screw
40	WP978025 Whirlpool Refrigerator Valve
40	Following Parts Not Illustrated and Optional Parts Not Included
40	8201826 Whirlpool Refrigerator Evaporator Tray
40	VALVE, ACCESS (5/8“)
40	978026 Whirlpool Refrigerator Primary Valve
40	VALVE, ACCESS (1/2“)
40	876764 Whirlpool Refrigerator Primary Valve
40	978027 Whirlpool Refrigerator Primary Valve
40	978030 Whirlpool Refrigerator Valve
40	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
