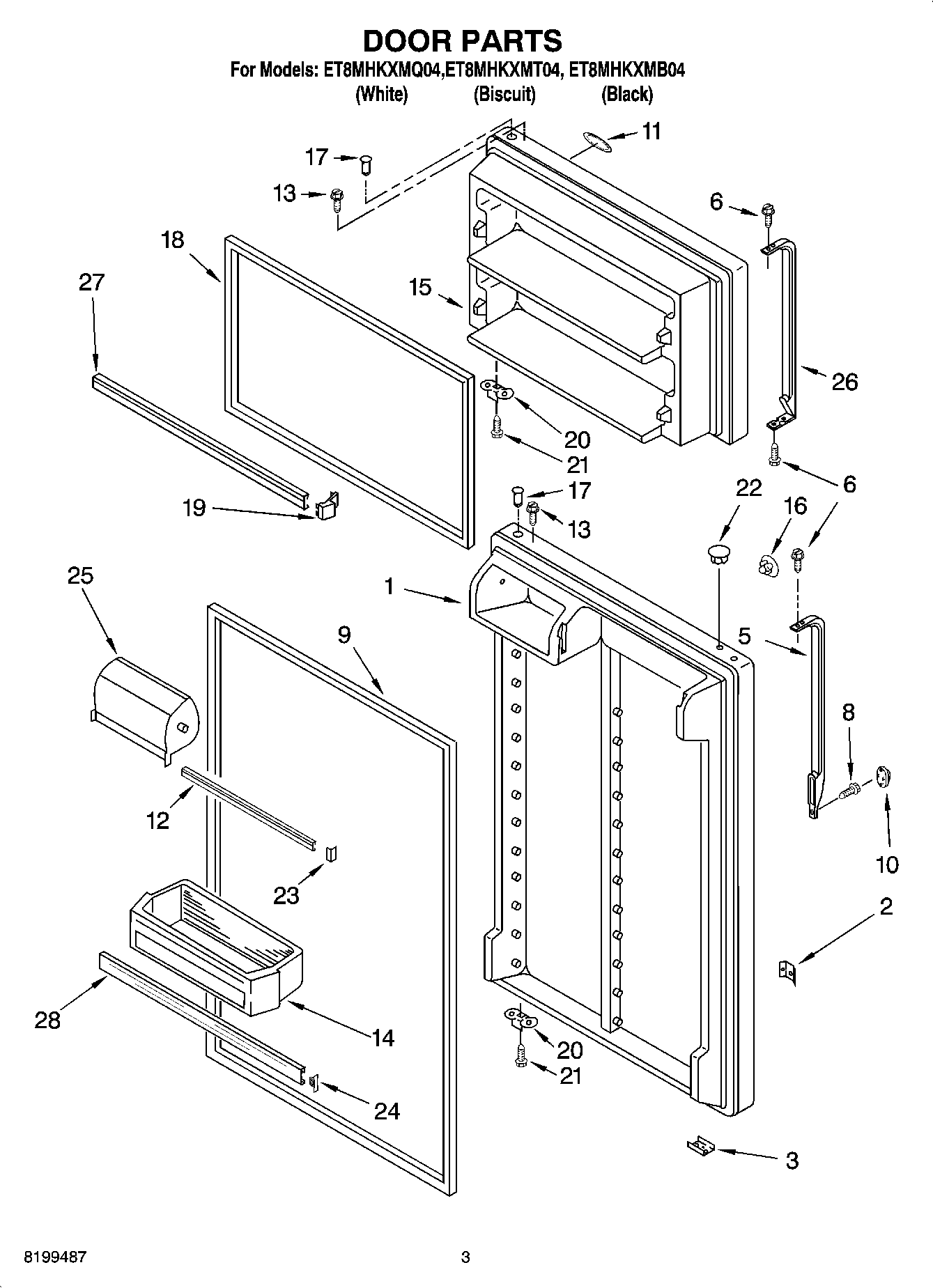

ET8MHKXMT04 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2	WP939101 Whirlpool Refrigerator Plate
3	W10833053 Whirlpool Refrigerator Plate
5	Handle Center (Biscuit)
5	WP2202807W Whirlpool Handle Door
5	Handle, Refrigerator (Black)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2177305 Whirlpool Refrigerator Door FIP Gasket
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	WP2202819W Whirlpool Refrigerator Cover
10	WP2202819B Whirlpool Refrigerator Cover
10	Cover, Screw (Biscuit)
11	WP2213265 Whirlpool Refrigerator Nameplate
12	TRIM-DOOR
13	WP8281206 Whirlpool Refrigerator Screw
14	WP2204810 Whirlpool Refrigerator Cantilever Bin
15	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
15	Freezer Door (Includes Illus. 4,17 & 18) (Black)
15	Freezer Door (Includes Illus. 4, 17 & 18) (White)
16	WP2200936 Whirlpool Refrigerator Handle Plug
16	WP2189009 Whirlpool Refrigerator Handle Plug
16	WP2189000 Whirlpool Refrigerator Handle Plug
17	WP2183003 Whirlpool Thimble
18	2159327 Whirlpool Refrigerator Door Gasket
18	2177304 Whirlpool Refrigerator FIP Gasket
19	ENDCAP
20	W11745278 Whirlpool Bracket
21	WP488921 Whirlpool Refrigerator Screw
22	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
22	WP2212651 Whirlpool Refrigerator Button Plug
22	WP2212649 Whirlpool Refrigerator Button Plug
23	ENDCAP-TRM
24	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
25	WP2218113 Whirlpool Dairy Door
26	WP2202806W Whirlpool Refrigerator Handle
26	Handle, F.C. (Biscuit)
26	WP2202806B Whirlpool Refrigerator Handle
27	Trim-Door (2)
28	WPW10421484 Whirlpool Refrigerator Door Trim
