ET8MTEXKT01 02 – DOOR

ET8MTEXKT01 02 – DOOR

Written by

in

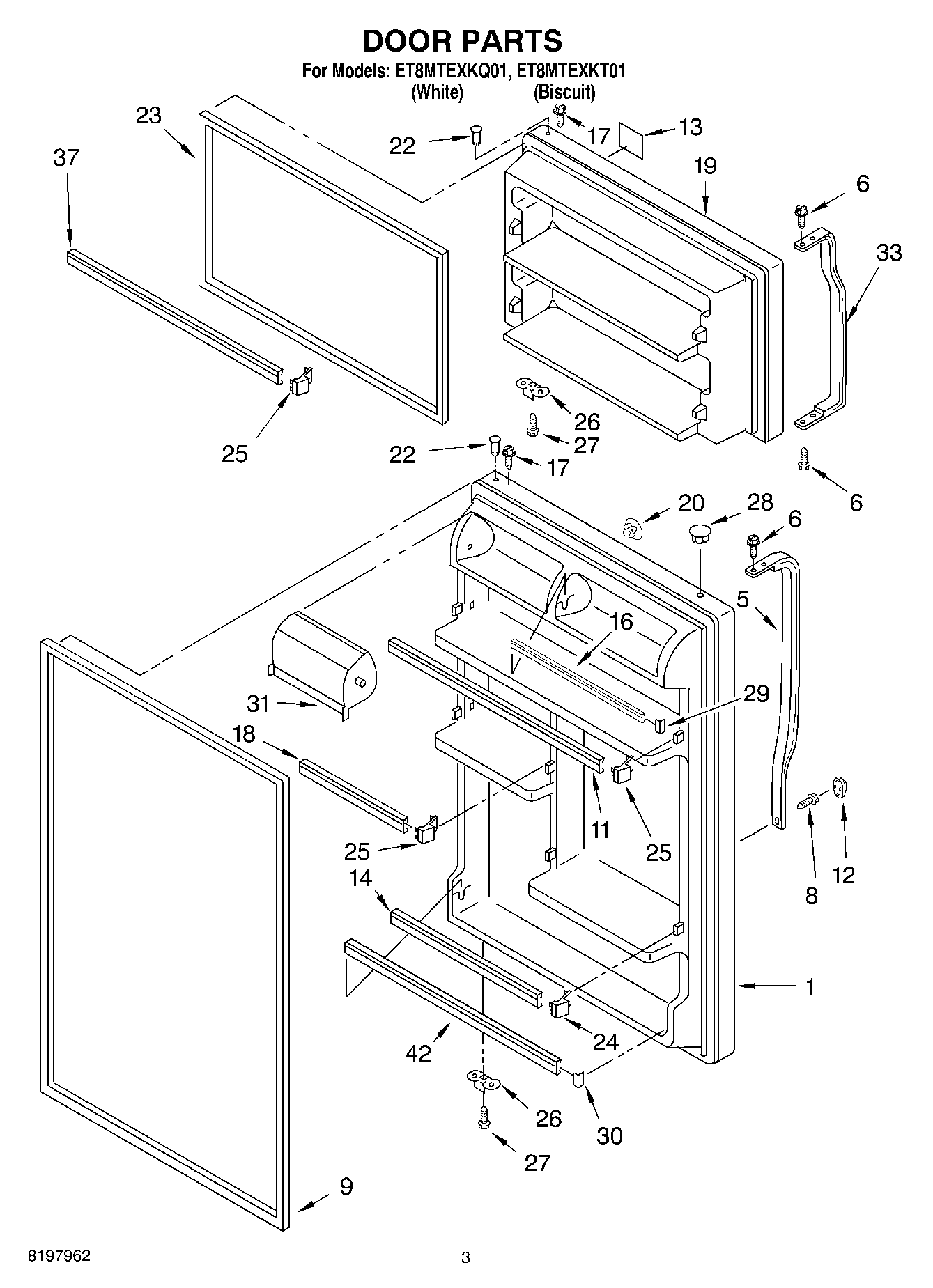

ET8MTEXKT01 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.22) (White)
1Refrigerator Door (Includes No.9 & No.22) (Biscuit)
5WP2202807W Whirlpool Handle Door
5Handle Center (Biscuit)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
11Trim, Door Shelf
12Cover, Screw (Biscuit)
12WP2202819W Whirlpool Refrigerator Cover
13Nameplate (White)
13Nameplate (Biscuit)
14WP2195943 Whirlpool Shelf Retainer Bar
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18Trim, Door
19Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
19Freezer Door (Includes Illus. 4, 17 & 18) (White)
20WP2189000 Whirlpool Refrigerator Handle Plug
20WP2200936 Whirlpool Refrigerator Handle Plug
22WP2183003 Whirlpool Thimble
232159327 Whirlpool Refrigerator Door Gasket
24WP2195915 Whirlpool Door Shelf Support
25WP2156003 Whirlpool Refrigerator Door Shelf End Cap
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28WP2212649 Whirlpool Refrigerator Button Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218113 Whirlpool Dairy Door
33WP2202806W Whirlpool Refrigerator Handle
33Handle, F.C. (Biscuit)
37Trim-Door (2)
42WPW10421484 Whirlpool Refrigerator Door Trim
