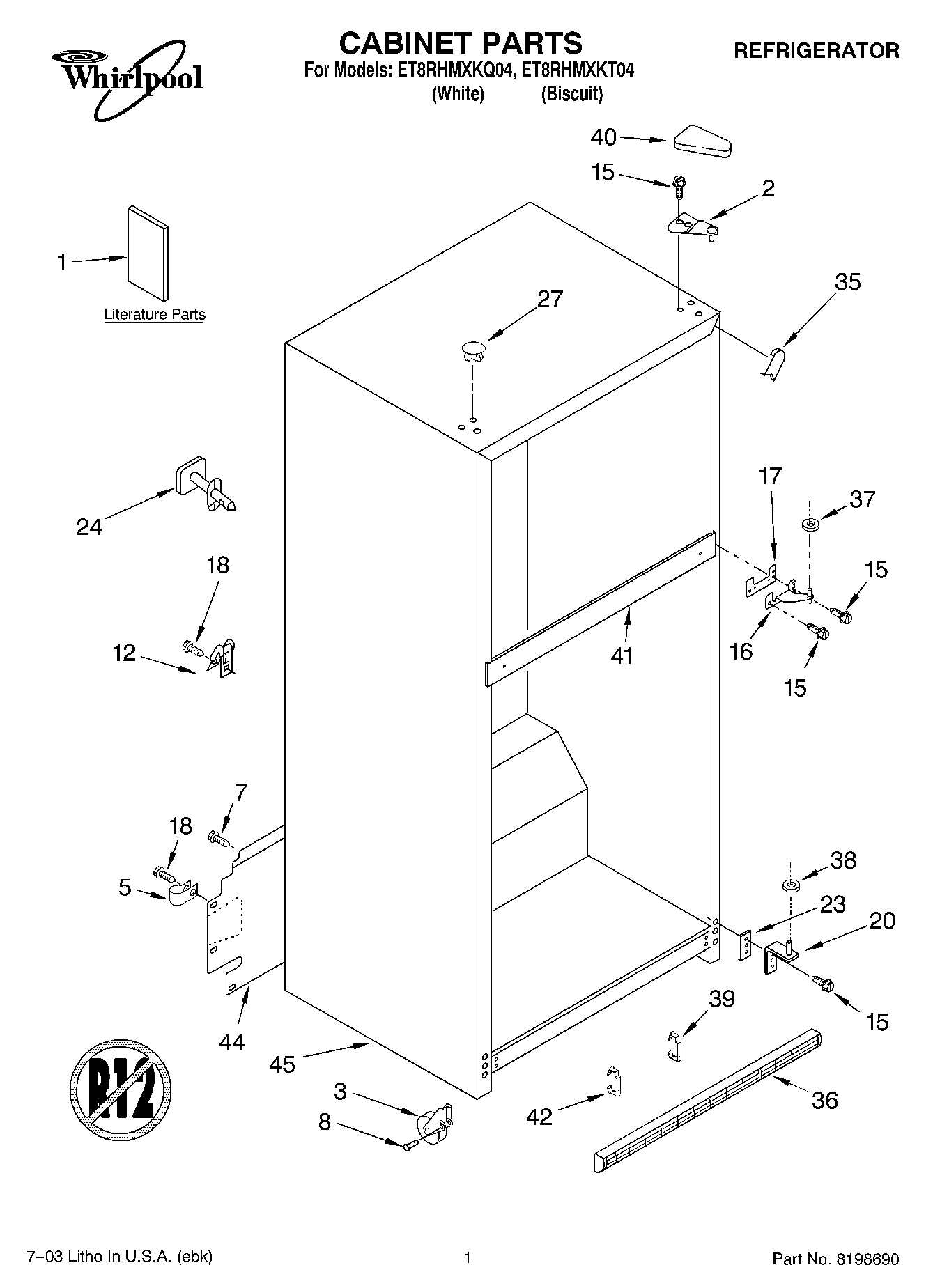

ET8RHMXKQ04 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Service & Wiring Sheet)
1	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Literature Parts (Use & Care Guide)
1	Modular Icemaker Service Sheet
1	Literature Parts (Energy Label)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Customer Instructions)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
7	WP489442 Whirlpool Refrigerator Screw
8	W11594405 Whirlpool Axle
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2151652 Whirlpool Refrigerator Button Plug
35	W10283958 Whirlpool Refrigerator Filler
35	WPW10283959 Whirlpool Refrigerator Filler
36	WP2254386 Whirlpool Refrigerator Grille
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	2254385 Whirlpool Refrigerator Clip
40	2213364 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
42	CLIP, GRILLE
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
