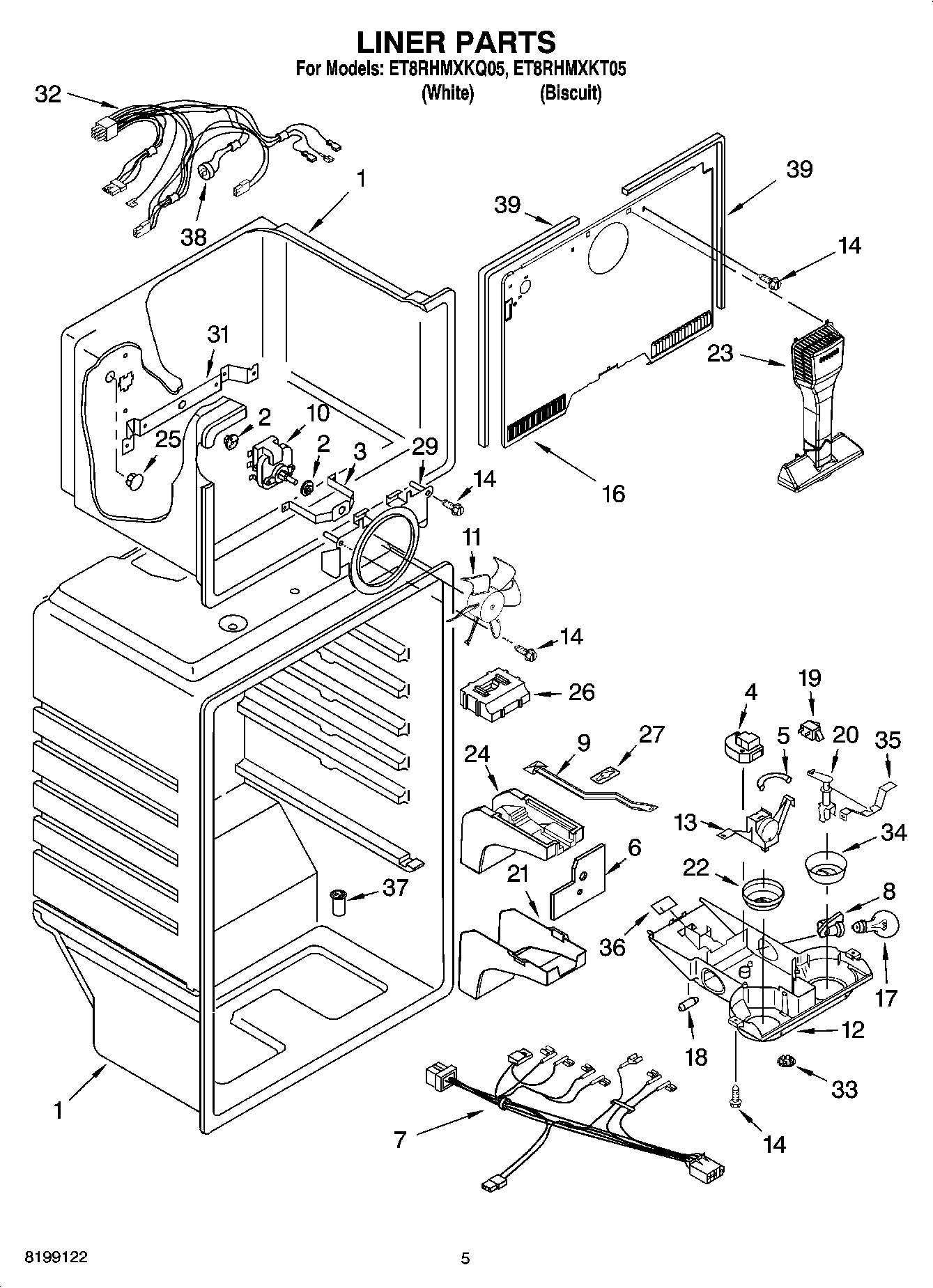

ET8RHMXKQ05 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	Bracket, Evap. Fan, Front
4	Defrost Timer
5	Thermostat Tube Barrier
6	Shield, heat
7	2310174 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	WP489478 Whirlpool Refrigerator Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	WP941839 Whirlpool Refrigerator Button Plug
26	Air Diffuser, Top
27	Clip, Defrost Timer
29	Bracket, Fan Motor
31	Bracket, Evap. Fan, Rear
32	Wire Assembly, Freezer Compartment
33	940014 Whirlpool Refrigerator Primary Button Plug
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2210509 Whirlpool Refrigerator Tub Valve
38	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39	WP2254360 Whirlpool Refrigerator Gasket
