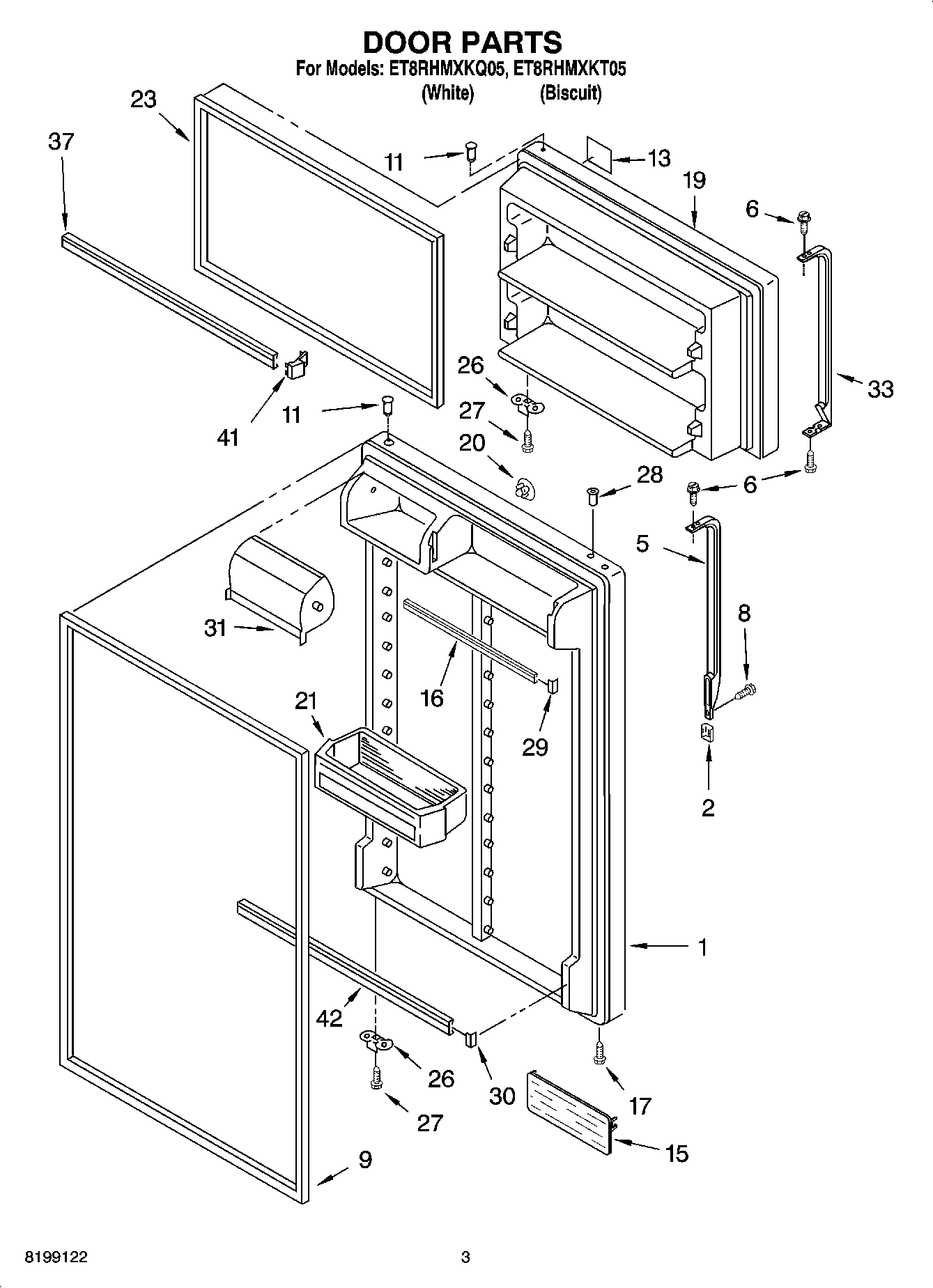

ET8RHMXKT05 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2	WP2193353W Whirlpool Refrigerator Trim Handle
2	Cover, Trim (Biscuit)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	WP2183003 Whirlpool Thimble
13	Nameplate (Biscuit Model)
13	Nameplate (White)
15	WP2188234 Whirlpool Shelf
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
19	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2200936 Whirlpool Refrigerator Handle Plug
21	WP2204810 Whirlpool Refrigerator Cantilever Bin
23	2159327 Whirlpool Refrigerator Door Gasket
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212649 Whirlpool Refrigerator Button Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
33	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
33	4388949 Whirlpool Refrigerator Handle
37	Trim-Door (2)
41	ENDCAP
42	WPW10421484 Whirlpool Refrigerator Door Trim
