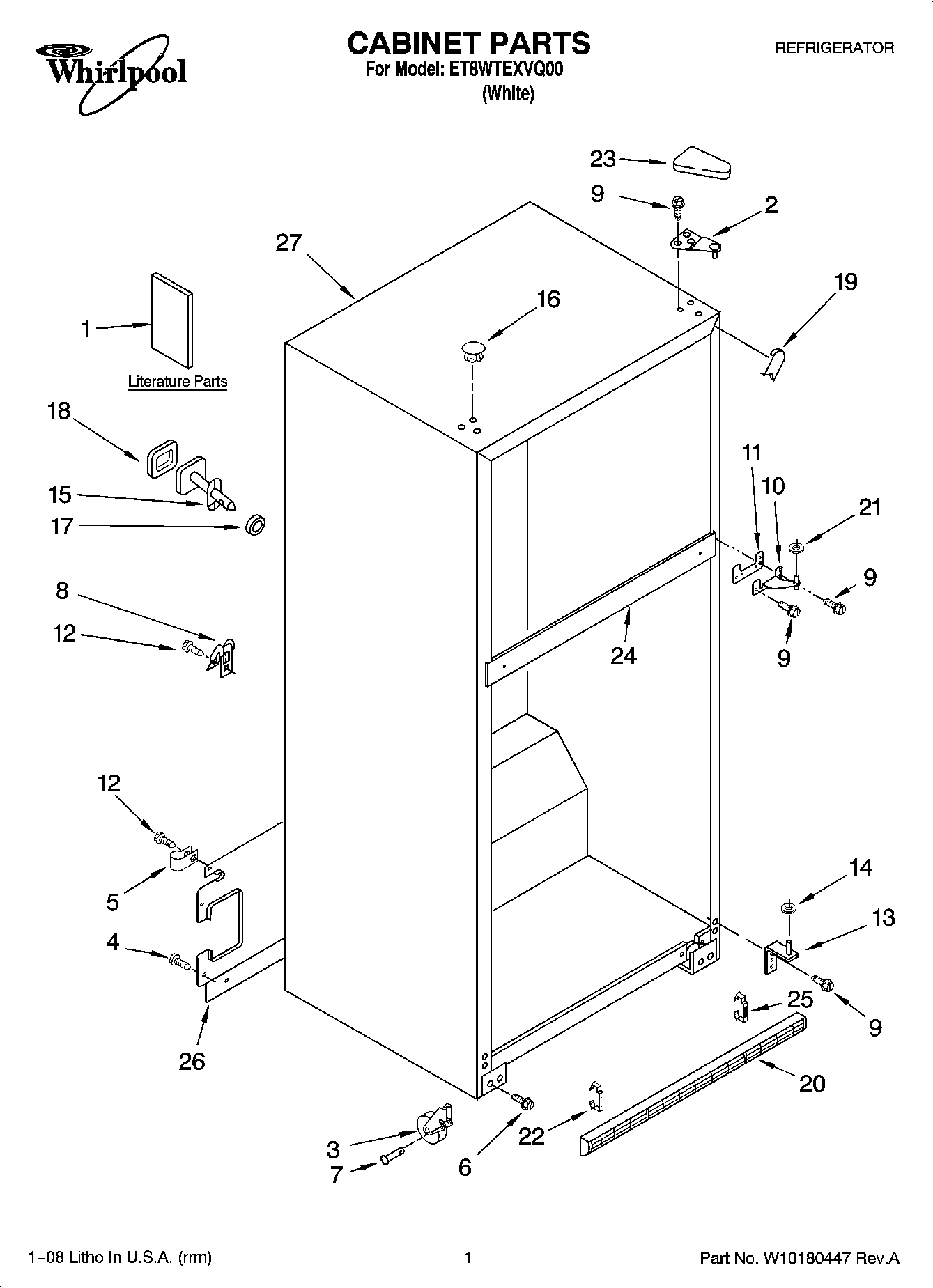

ET8WTEXVQ00 01 – CABINET PARTS
Written by
in
ET8WTEXVQ00 01 – CABINET PARTS
Products
Position
Product
1
DO-IT-YOURSELF MANUAL, REF./ FZR.
1
Use & Care Guide (Bilingual)
1
Use & Care Guide (Trilingual)
1
Energy Guide
1
Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1
Service & Wiring Sheet
2
WP2261963 Whirlpool Refrigerator Door Hinge
3
WP2166108 Whirlpool Refrigerator Cabinet Roller
4
WP489427 Whirlpool Refrigerator Screw
5
WP488366 Whirlpool Refrigerator Clamp
6
WP3400504 Whirlpool Refrigerator Screw
7
W11594405 Whirlpool Axle
8
549193 Whirlpool Refrigerator Power Clamp
9
WP489497 Whirlpool Screw
10
WP2254618 Whirlpool Center Door Hinge
11
WP2183852 Whirlpool Refrigerator Shim
12
WP489464 Whirlpool Refrigerator Screw
13
WP2254473 Whirlpool Refrigerator Door Hinge
14
WP487576 Whirlpool Washer
15
Fitting, Water Tube (Not Serviced)
16
WP2151652 Whirlpool Refrigerator Button Plug
17
Seal, Front (Not Serviced)
18
Seal, Rear (Not Serviced)
19
WPW10283959 Whirlpool Refrigerator Filler
20
WP2254386 Whirlpool Refrigerator Grille
21
WP489467 Whirlpool Hinge Shim
22
CLIP, GRILLE
23
WP2213360 Whirlpool Refrigerator Cover
24
Rail, Center (Not Serviced)
25
2254385 Whirlpool Refrigerator Clip
26
Cover, Unit
27
Cabinet, (Not A Serviceable Part)
←
