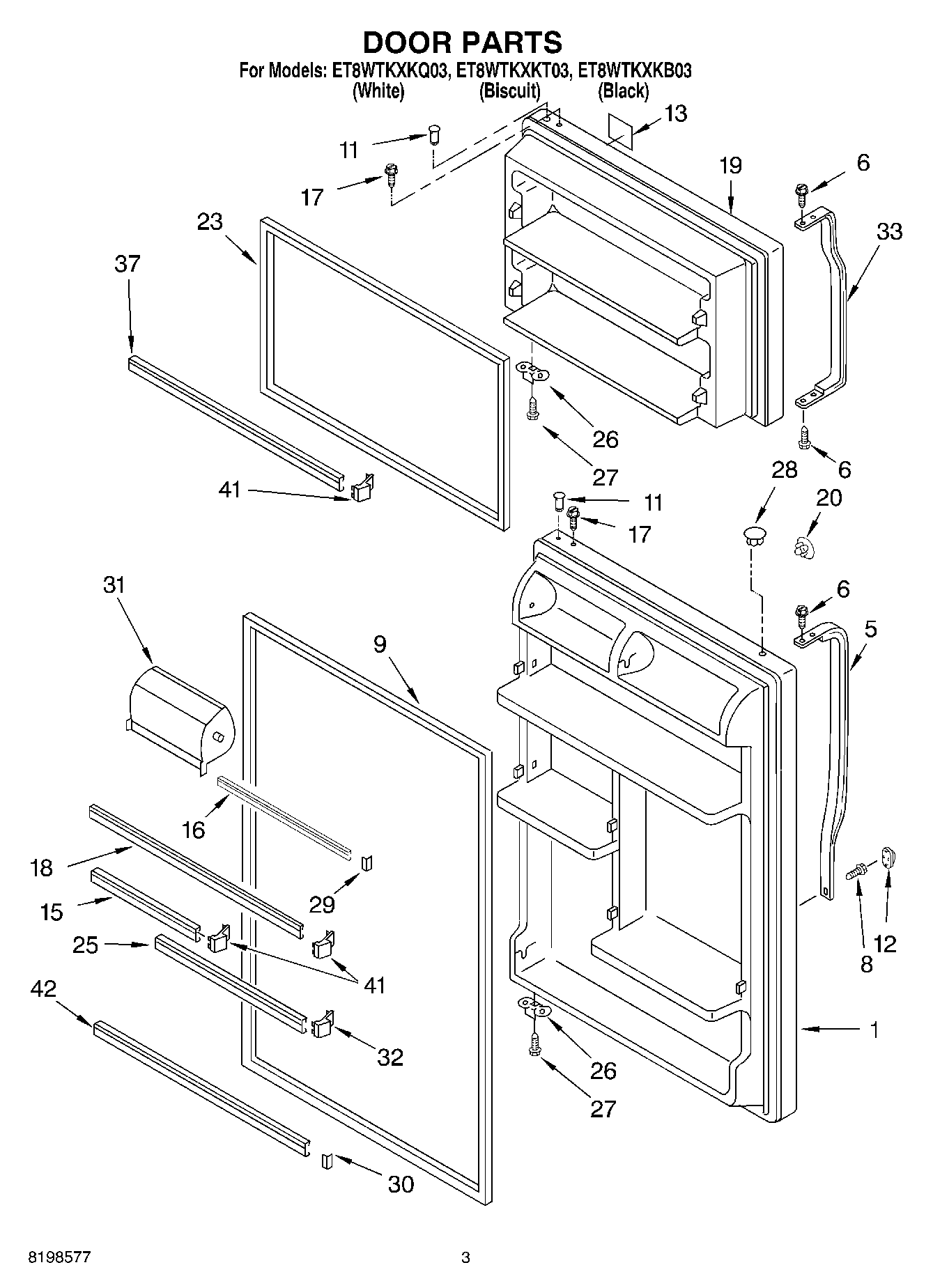

ET8WTKXKB03 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (White)
1	Refrigerator Door (Includes No.9 & No.11) (Black)
1	Refrigerator Door (Includes No.9 & No.22) (Biscuit)
5	WP2202807W Whirlpool Handle Door
5	Handle, Refrigerator (Black)
5	Handle Center (Biscuit)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
9	Door Gasket, Magnetic (Black)
11	WP2183003 Whirlpool Thimble
12	WP2202819B Whirlpool Refrigerator Cover
12	Cover, Screw (Biscuit)
12	WP2202819W Whirlpool Refrigerator Cover
13	Nameplate (Biscuit)
13	Nameplate (White)
13	Nameplate
15	Trim, Door
16	TRIM-DOOR
17	WP489464 Whirlpool Refrigerator Screw
18	Trim, Door Shelf
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
19	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
19	Freezer Door (Includes Illus. 4,17 & 18) (Black)
20	WP2189009 Whirlpool Refrigerator Handle Plug
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2200936 Whirlpool Refrigerator Handle Plug
23	2159327 Whirlpool Refrigerator Door Gasket
23	2177304 Whirlpool Refrigerator FIP Gasket
25	WP2195943 Whirlpool Shelf Retainer Bar
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212651 Whirlpool Refrigerator Button Plug
28	WP2212649 Whirlpool Refrigerator Button Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
32	WP2195915 Whirlpool Door Shelf Support
33	Handle, F.C. (Biscuit)
33	WP2202806B Whirlpool Refrigerator Handle
33	WP2202806W Whirlpool Refrigerator Handle
37	Trim-Door (2)
41	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42	WPW10421484 Whirlpool Refrigerator Door Trim
