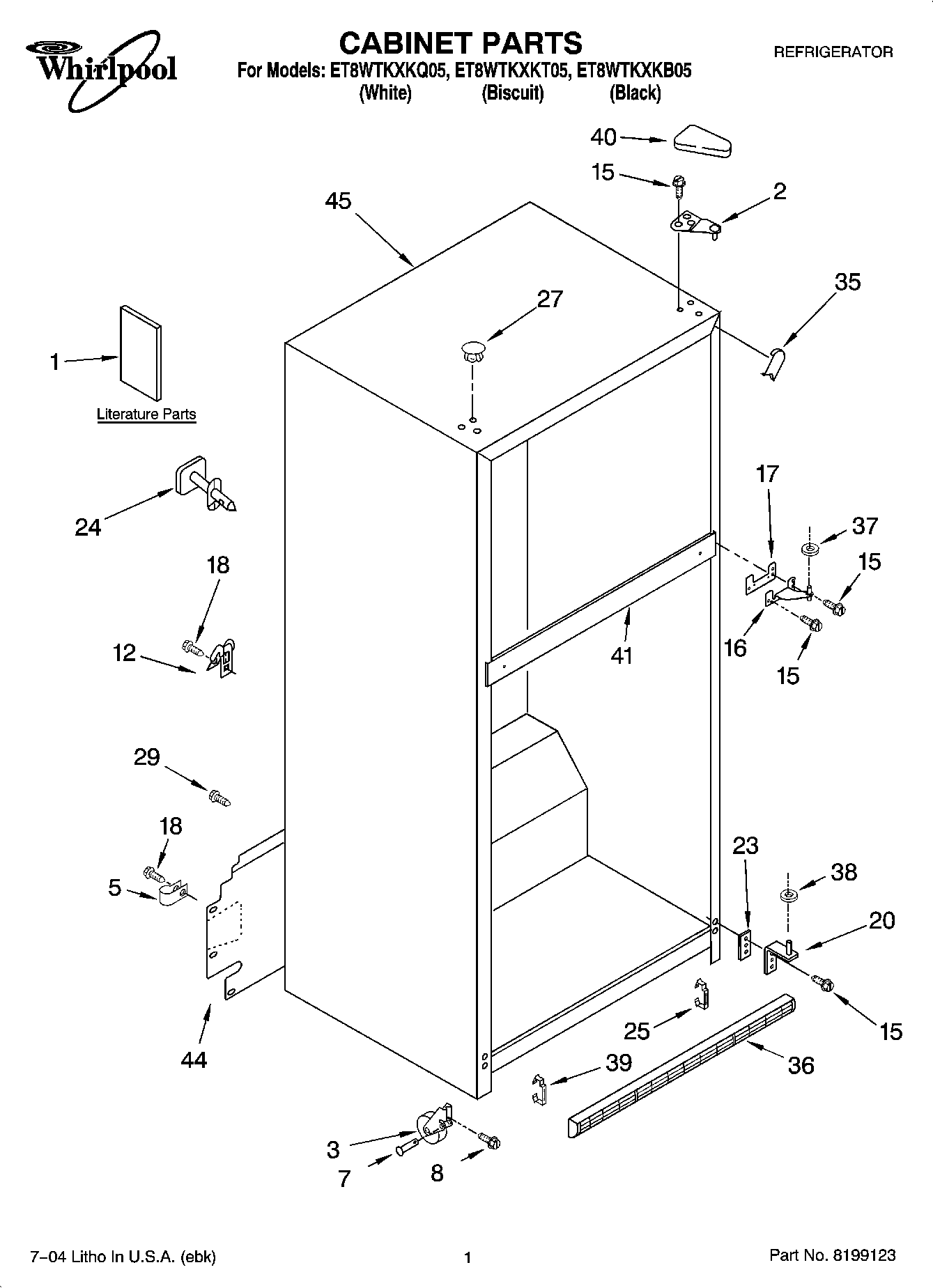

ET8WTKXKB05 01 – CABINET PARTS

Products

PositionProduct
1Customer Instructions
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
252254385 Whirlpool Refrigerator Clip
27Hole Plug (6) (Biscuit)
27WP2151652 Whirlpool Refrigerator Button Plug
27WP2183998 Whirlpool Refrigerator Button Plug
29WP8281206 Whirlpool Refrigerator Screw
35W11252732 Whirlpool Refrigerator Filler
35WPW10283959 Whirlpool Refrigerator Filler
35W10283958 Whirlpool Refrigerator Filler
36Grille (Includes Illus. 4 & 24) (Black)
36WP2254386 Whirlpool Refrigerator Grille
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
39CLIP, GRILLE
40WP2213363 Whirlpool Refrigerator Cover
40WP2213360 Whirlpool Refrigerator Cover
402213364 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44Cover, Unit
45Cabinet (Not A Serviceable Part)
