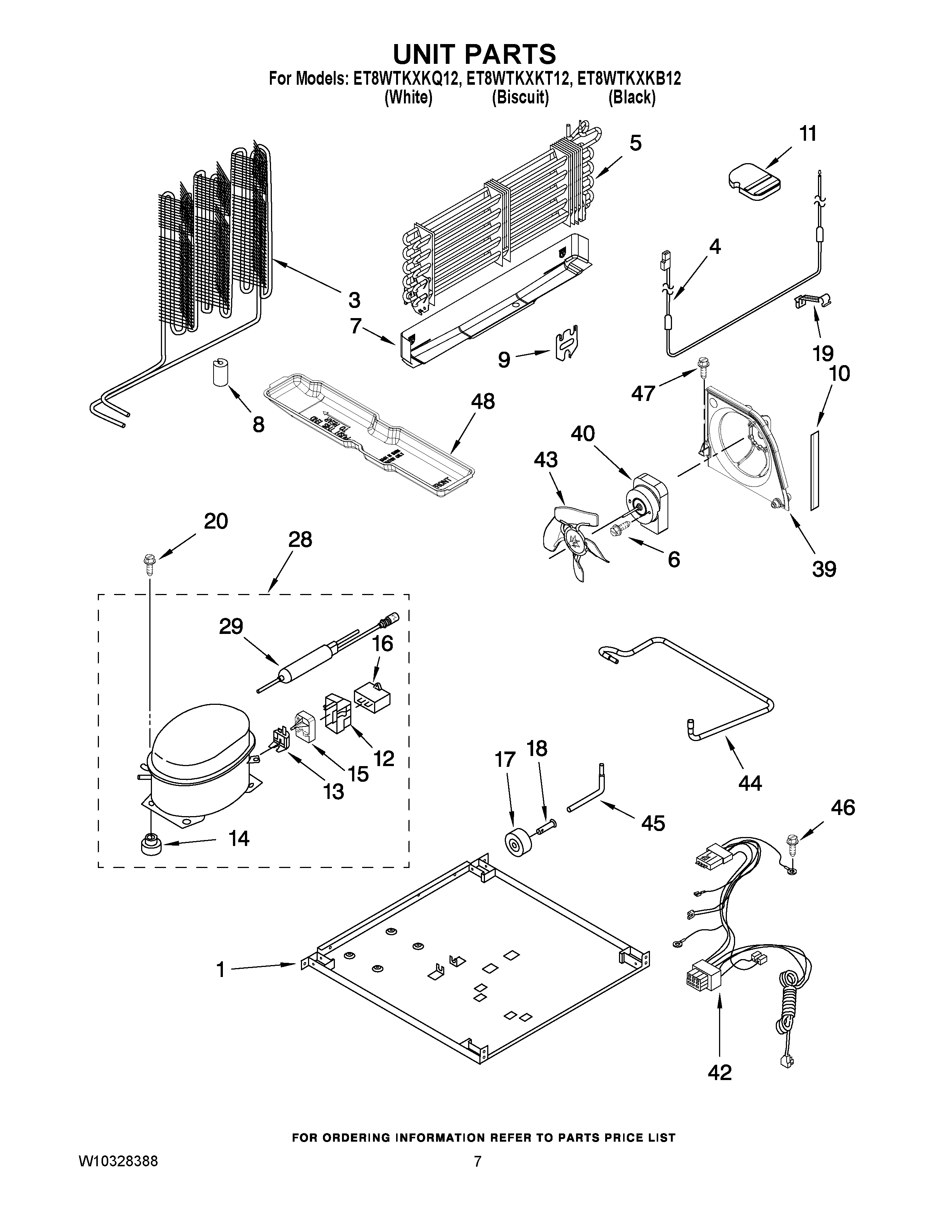

ET8WTKXKB12 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
1	Plate, Unit Mounting
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
11	Support Block
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2302290 Whirlpool Refrigerator Overload
13	WP4387938 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	8201647 Whirlpool Refrigerator Start Device
16	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
29	W10843121 Whirlpool Refrigerator Tube
39	WP2315541 Whirlpool Refrigerator Air Baffle
40	WP2188874 Whirlpool Refrigerator Condenser Motor
42	2187382 Whirlpool Refrigerator Wire Harness
43	W11458267 Whirlpool Refrigerator Fan Blade
44	2205293 Whirlpool Refrigerator Tube
45	W11676464 Whirlpool Tube
46	WP489128 Whirlpool Refrigerator Screw
47	3400518 Whirlpool Oven Foot Mount Screw
48	WP2254574 Whirlpool Refrigerator Evaporator Tray
