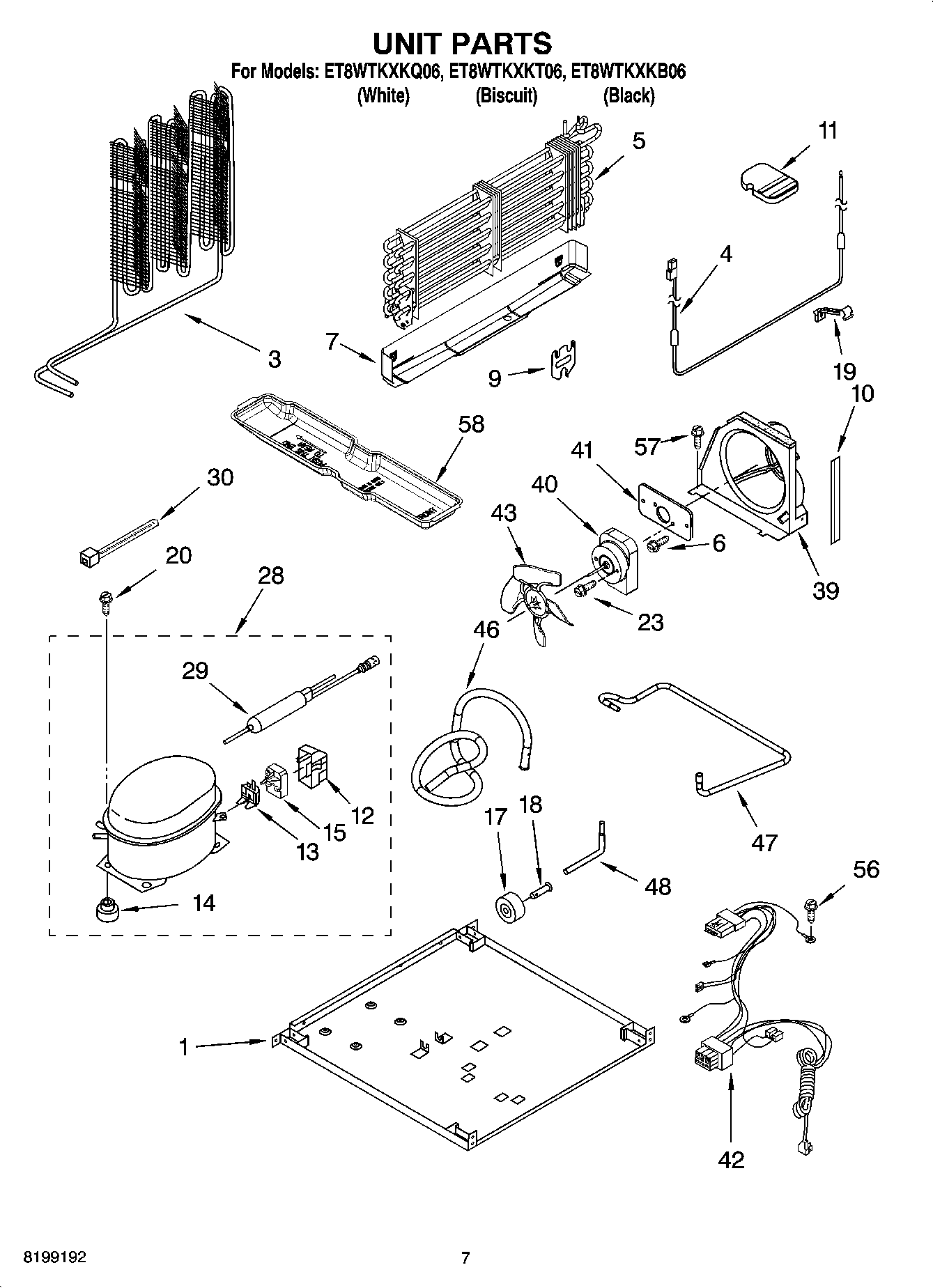

ET8WTKXKQ06 04 – UNIT PARTS

ET8WTKXKQ06 04 – UNIT PARTS

Written by

in

ET8WTKXKQ06 04 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
11Support Block
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2302290 Whirlpool Refrigerator Overload
13WP4387938 Whirlpool Refrigerator Overload
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15WP2258450 Whirlpool Refrigerator Start Device
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
238281197 Whirlpool Refrigerator Screw
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
39Air Baffle
40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
41Plate
42Wire Assy. Unit
43W11458267 Whirlpool Refrigerator Fan Blade
46Tube, Discharge
472205293 Whirlpool Refrigerator Tube
48W11676464 Whirlpool Tube
56WP489128 Whirlpool Refrigerator Screw
573400518 Whirlpool Oven Foot Mount Screw
58WP978025 Whirlpool Refrigerator Valve
58Following Parts Not Illustrated and Optional Parts Not Included
588201826 Whirlpool Refrigerator Evaporator Tray
58VALVE, ACCESS (5/8“)
58978026 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58876764 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58REFRIGERANT CHARGE 4.00 Ozs. (R134A)
