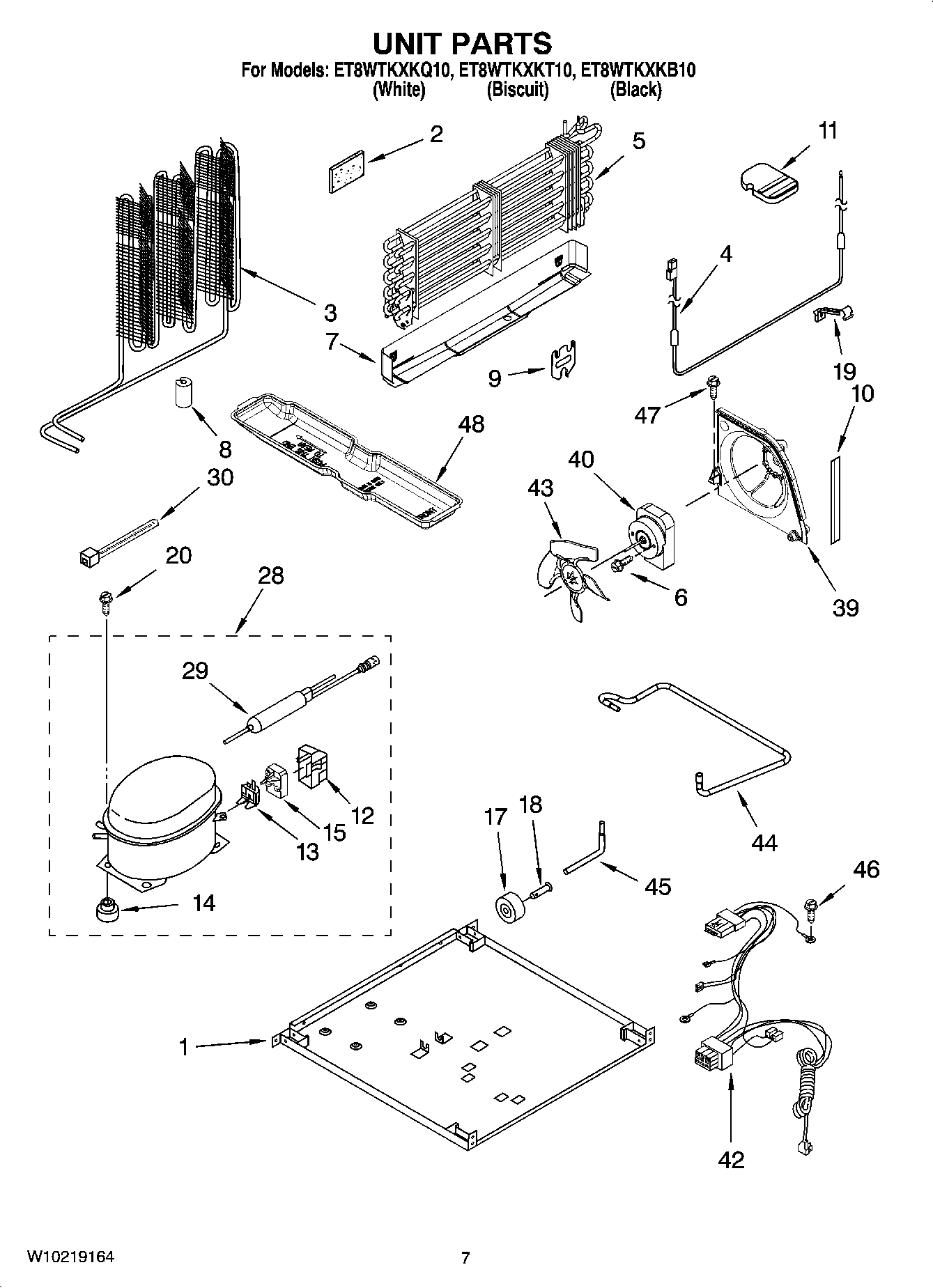

ET8WTKXKQ10 04 – UNIT PARTS

Products

PositionProduct
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 3.75 Ozs. (R134A)
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1Plate, Unit Mounting
2W11553819 Whirlpool Refrigerator Insulation
3Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6W11501418 Whirlpool Refrigerator Screw
7Drain Pan
8W10852725 Whirlpool Refrigerator Grommet
9Bracket, Heater
10Extension, Air Baffle
11Support Block
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387938 Whirlpool Refrigerator Overload
13WP2302290 Whirlpool Refrigerator Overload
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2258450 Whirlpool Refrigerator Start Device
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
28W10823815 Whirlpool Refrigerator Compressor
29WPW10143759 Whirlpool Dryer Filter
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
39WP2315541 Whirlpool Refrigerator Air Baffle
40WP2188874 Whirlpool Refrigerator Condenser Motor
42Wire Assy. Unit
43W11458267 Whirlpool Refrigerator Fan Blade
442205293 Whirlpool Refrigerator Tube
45W11676464 Whirlpool Tube
46WP489128 Whirlpool Refrigerator Screw
473400518 Whirlpool Oven Foot Mount Screw
48WP2254574 Whirlpool Refrigerator Evaporator Tray
