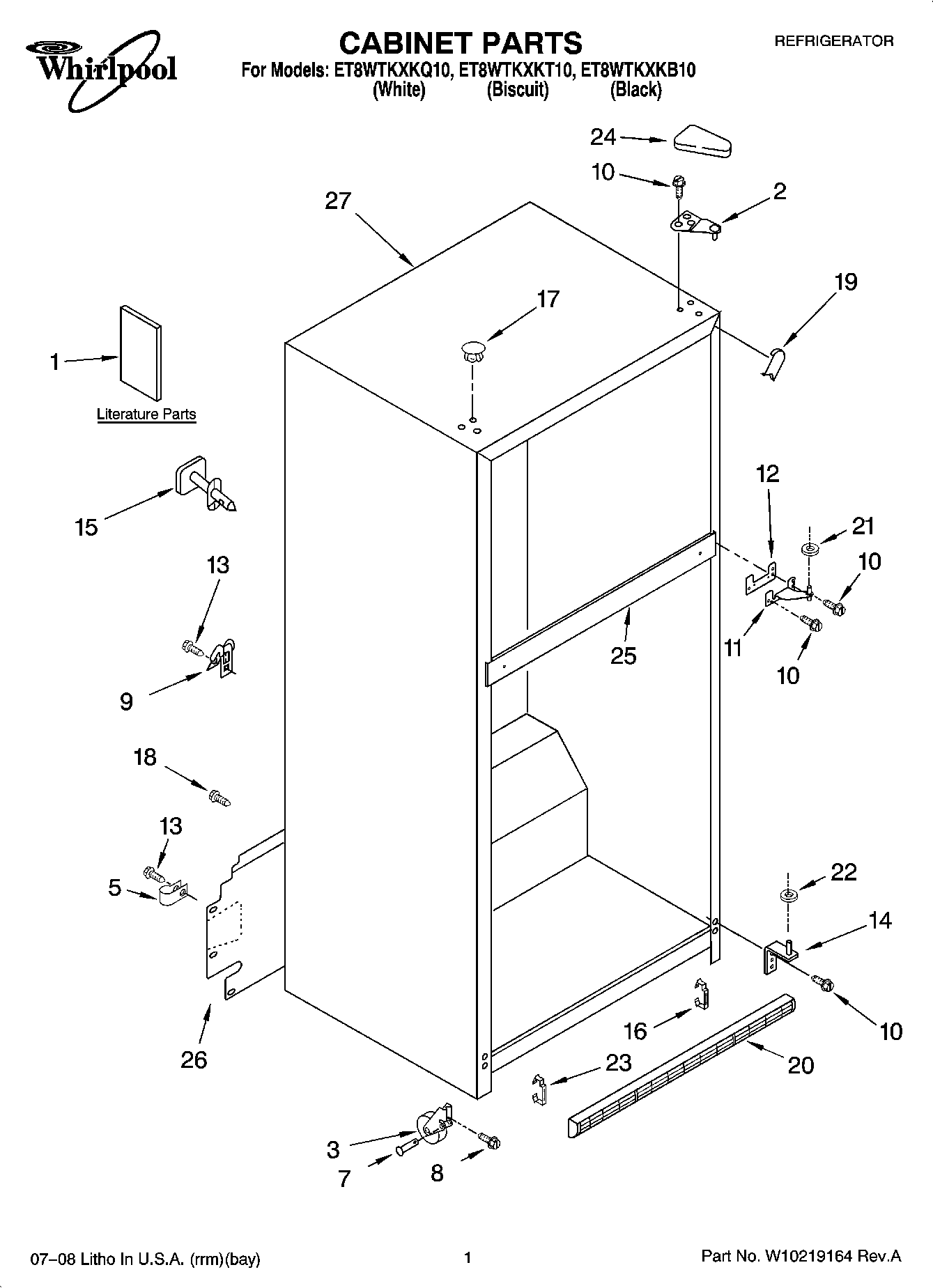

ET8WTKXKT10 01 – CABINET PARTS

ET8WTKXKT10 01 – CABINET PARTS

Written by

in

ET8WTKXKT10 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1Service & Wiring Sheet
1Use & Care Guide (Trilingual)
1Use & Care Guide (Bilingual)
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
15Fitting, Water Tube (Not Serviced)
162254385 Whirlpool Refrigerator Clip
17WP2183998 Whirlpool Refrigerator Button Plug
17WP2151652 Whirlpool Refrigerator Button Plug
17Hole Plug (6) (Biscuit)
18WP489427 Whirlpool Refrigerator Screw
19WPW10283959 Whirlpool Refrigerator Filler
19W11252732 Whirlpool Refrigerator Filler
19W10283958 Whirlpool Refrigerator Filler
20WP2254386 Whirlpool Refrigerator Grille
20Grille (Includes Illus. 4 & 24) (Black)
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23CLIP, GRILLE
242213364 Whirlpool Refrigerator Cover
24WP2213360 Whirlpool Refrigerator Cover
24WP2213363 Whirlpool Refrigerator Cover
25Rail, Center (Not Serviced)
26Cover, Unit
27Cabinet, (Not A Serviceable Part)
