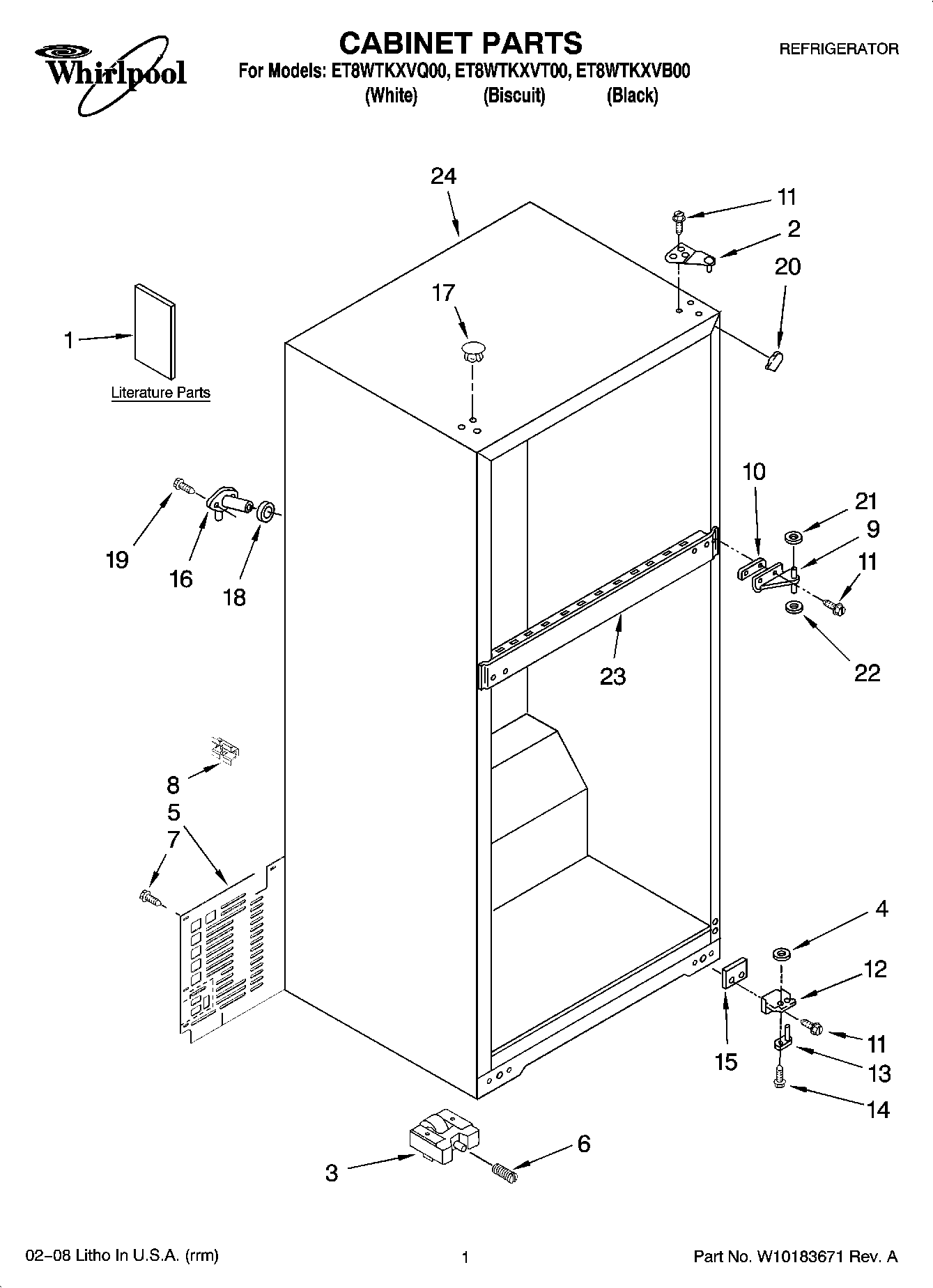

ET8WTKXVB00 01 – CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Guide
1	Use & Care Guide
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP488296 Whirlpool Washer Refrigerator
5	WP2264132 Whirlpool Refrigerator Unit Cover
6	2222100 Whirlpool Refrigerator Screw
7	WP489442 Whirlpool Refrigerator Screw
8	2266506 Whirlpool Refrigerator Spacer
9	WP2166037 Whirlpool Refrigerator Door Hinge
10	2166043 Whirlpool Refrigerator Shim
11	WP489497 Whirlpool Screw
12	WP2325482 Whirlpool Bottom Hinge
13	Hinge-Pin Bott.
14	WP3428970 Whirlpool Refrigerator Screw
15	WP2201567 Whirlpool Hinge Shim
16	WP2196157 Whirlpool Fill Tube
17	WP2183998 Whirlpool Refrigerator Button Plug
17	Hole Plug (6) (Biscuit)
17	WP2151652 Whirlpool Refrigerator Button Plug
18	WP1106508 Whirlpool Refrigerator Gasket
19	WP488729 Whirlpool Refrigerator Door Screw
20	W11500943 Whirlpool Refrigerator Filler
20	2202282 Whirlpool Refrigerator Filler
20	W10859322 Whirlpool Refrigerator Filler
21	WP489467 Whirlpool Hinge Shim
22	WP487576 Whirlpool Washer
23	Rail, Center (Not Serviced)
24	Cabinet, (Not A Serviceable Part)
