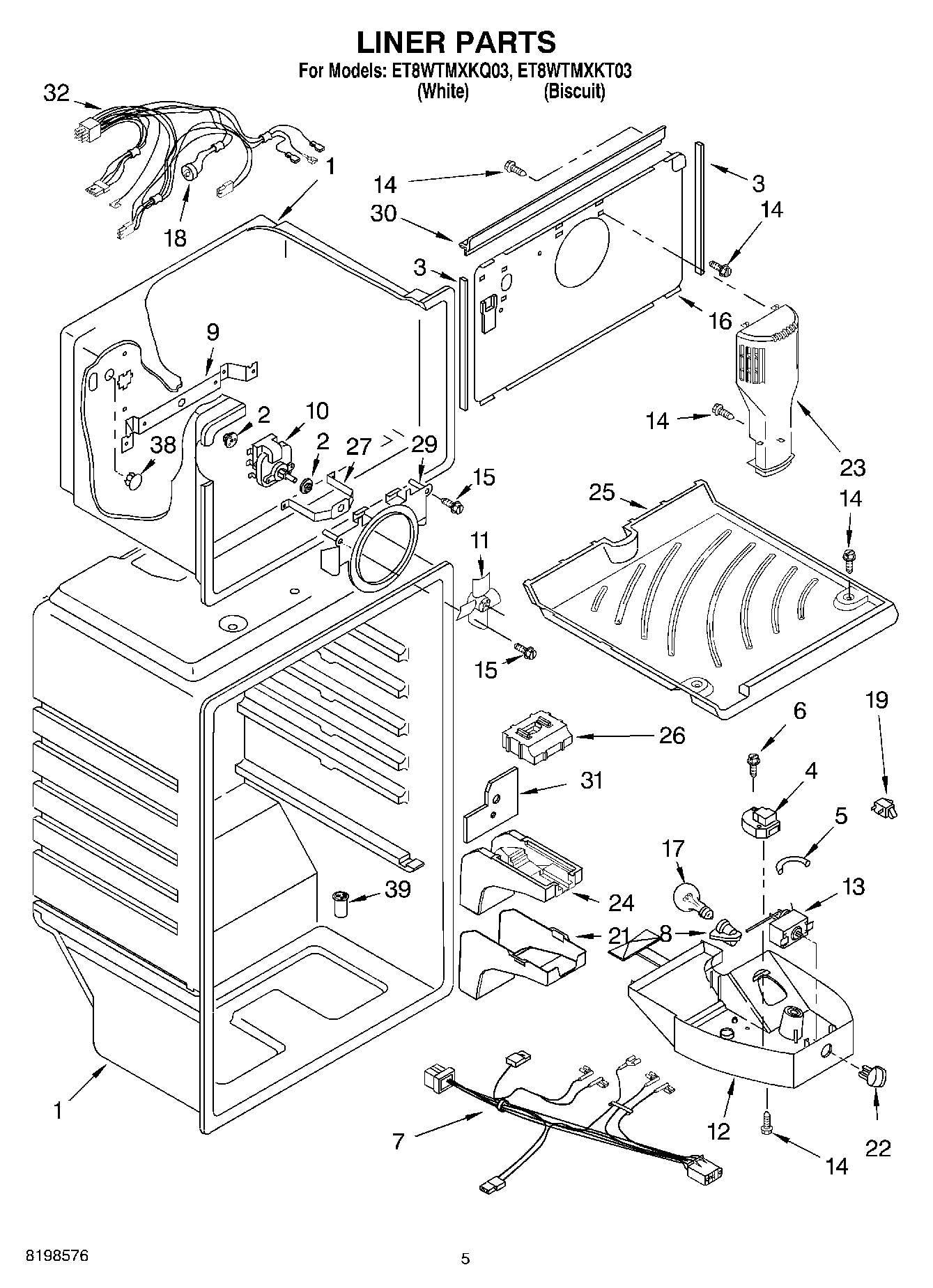

ET8WTMXKQ03 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
4	Defrost Timer
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP98129 Whirlpool Screw
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Bracket, Evap. Fan, Rear
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	WP2204605 Whirlpool Refrigerator Thermostat
14	WP489478 Whirlpool Refrigerator Screw
15	WP693995 Whirlpool Screw
16	Cover-Evaporator
17	W10887190 Whirlpool Refrigerator Light Bulb
18	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
19	W11384469 Whirlpool Door Switch
21	Cover, Air Diffuser
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	Bracket, Evap. Fan, Front
29	Bracket, Fan Motor
30	WP2254360 Whirlpool Refrigerator Gasket
31	Shield, heat
32	Wire Assembly, Freezer Compartment
38	WP941839 Whirlpool Refrigerator Button Plug
39	WP2210509 Whirlpool Refrigerator Tub Valve
