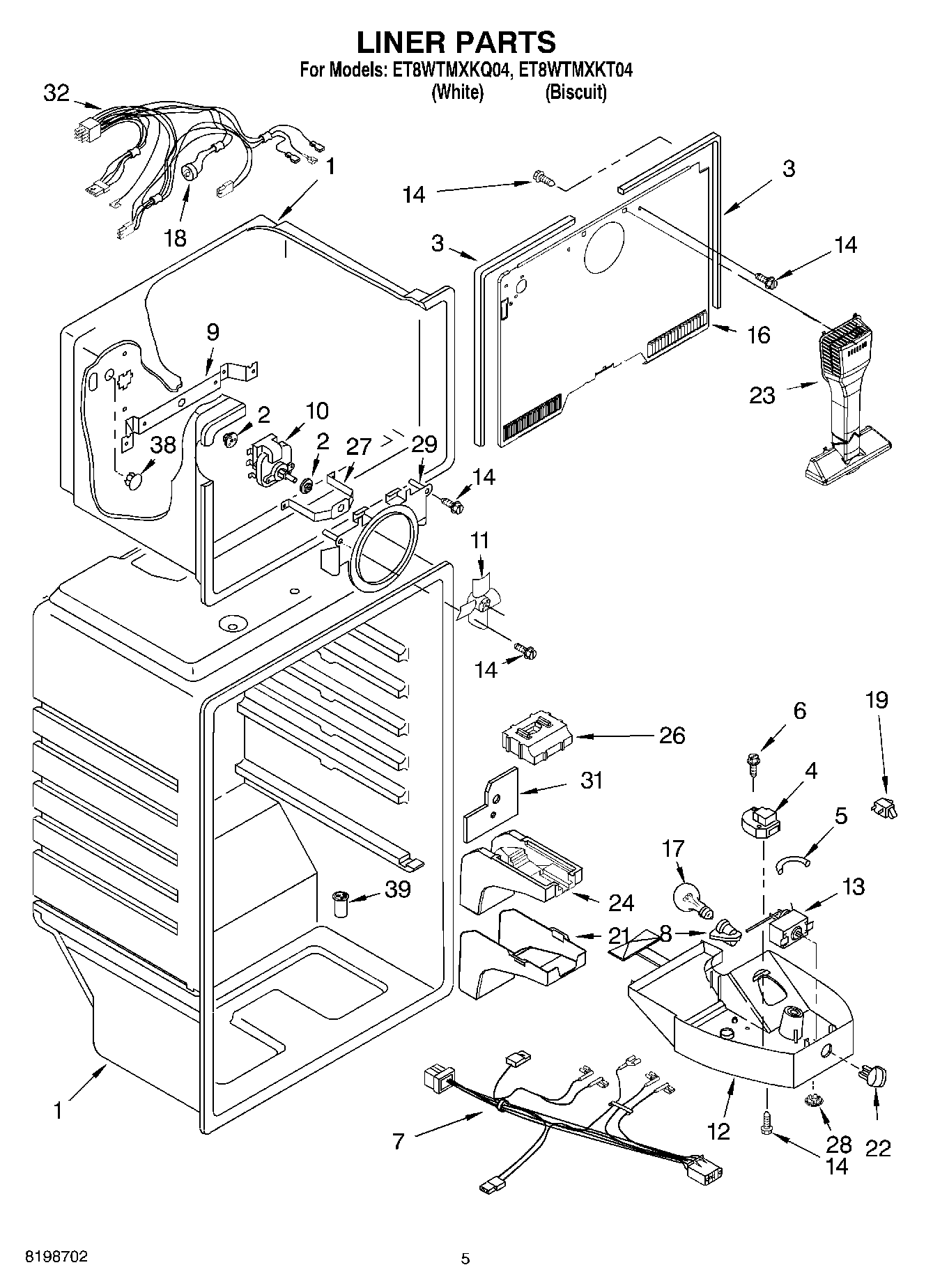

ET8WTMXKQ04 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Defrost Timer
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP98129 Whirlpool Screw
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
9Bracket, Evap. Fan, Rear
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2204605 Whirlpool Refrigerator Thermostat
14WP489478 Whirlpool Refrigerator Screw
16Cover-Evaporator
17W10887190 Whirlpool Refrigerator Light Bulb
18WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
19W11384469 Whirlpool Door Switch
21Cover, Air Diffuser
22WP2202885 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Diffuser, Top
27Bracket, Evap. Fan, Front
28940014 Whirlpool Refrigerator Primary Button Plug
29Bracket, Fan Motor
31Shield, heat
32Wire Assembly, Freezer Compartment
38WP941839 Whirlpool Refrigerator Button Plug
39WP2210509 Whirlpool Refrigerator Tub Valve
