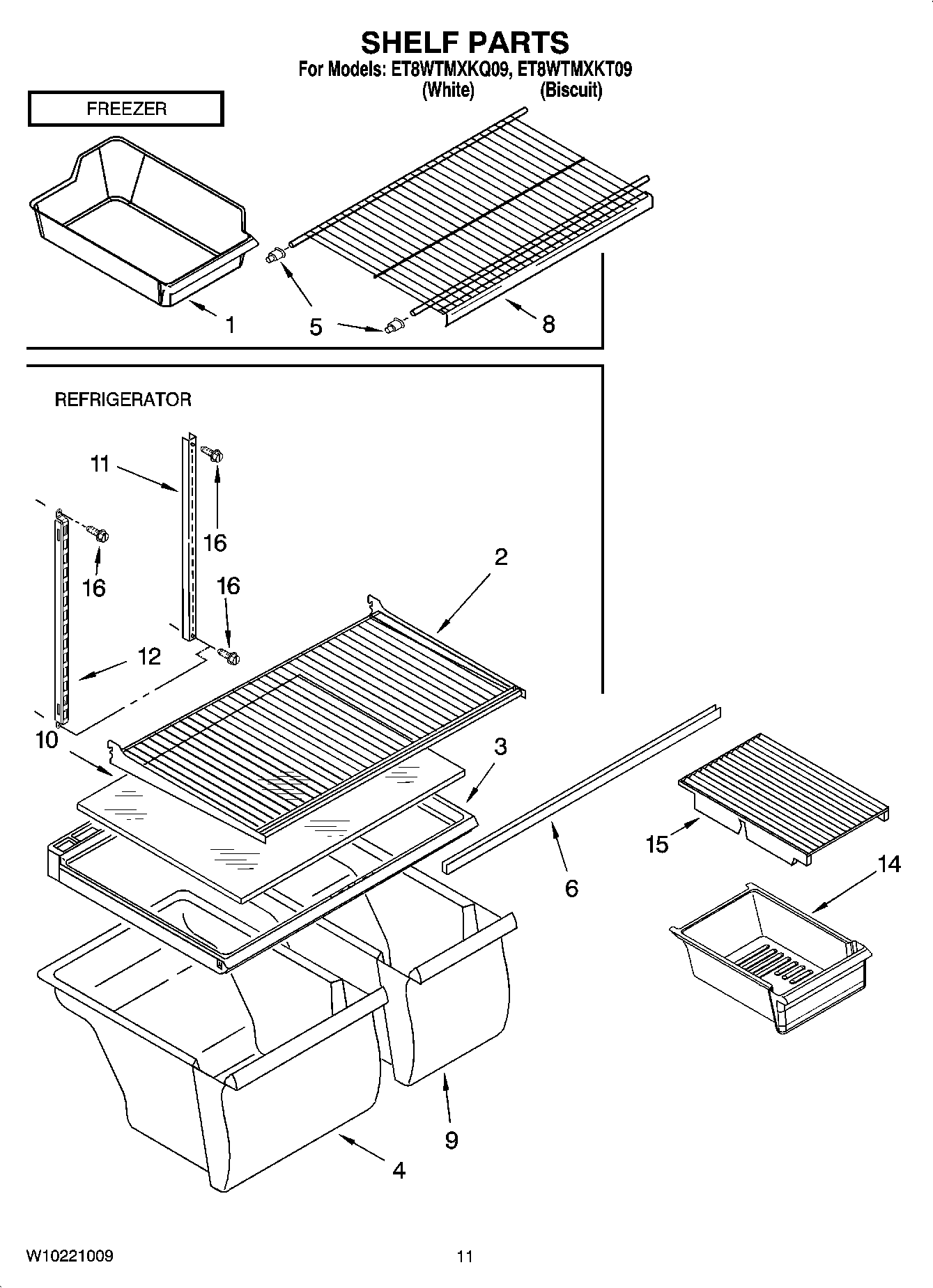

ET8WTMXKQ09 06 – SHELF PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI54896A5
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
WPL 876029
Parts Not Illustrated and Optional Parts (Not Included)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI54897A1
Miscellaneous
Customer Touch-Up Material
REFINISHING MATER
Torx Key
WP542638 Whirlpool Refrigerator Grease
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
4392901 Whirlpool Biscuit Spray Paint
876370 Whirlpool Refrigerator Insulation
WP505587 Whirlpool Refrigerator Sealer
12254352A Whirlpool Refrigerator Ice Container
2Shelf, Full Cantilever
3WP2314548 Whirlpool Refrigerator Cover
4W10854037 Whirlpool Refrigerator Crisper Pan
52163762 Whirlpool Refrigerator Cup Assembly
6WP2172748 Whirlpool Drawer Support
8Shelf, Freezer
9W10856580 Whirlpool Crisper Pan
10WP2169921 Whirlpool Refrigerator Glass Shelf
11Shelf, Ladder (2)
12Shelf, Ladder Center
14PAN-MEAT
15Cover, Meat Pan
16WP489478 Whirlpool Refrigerator Screw
