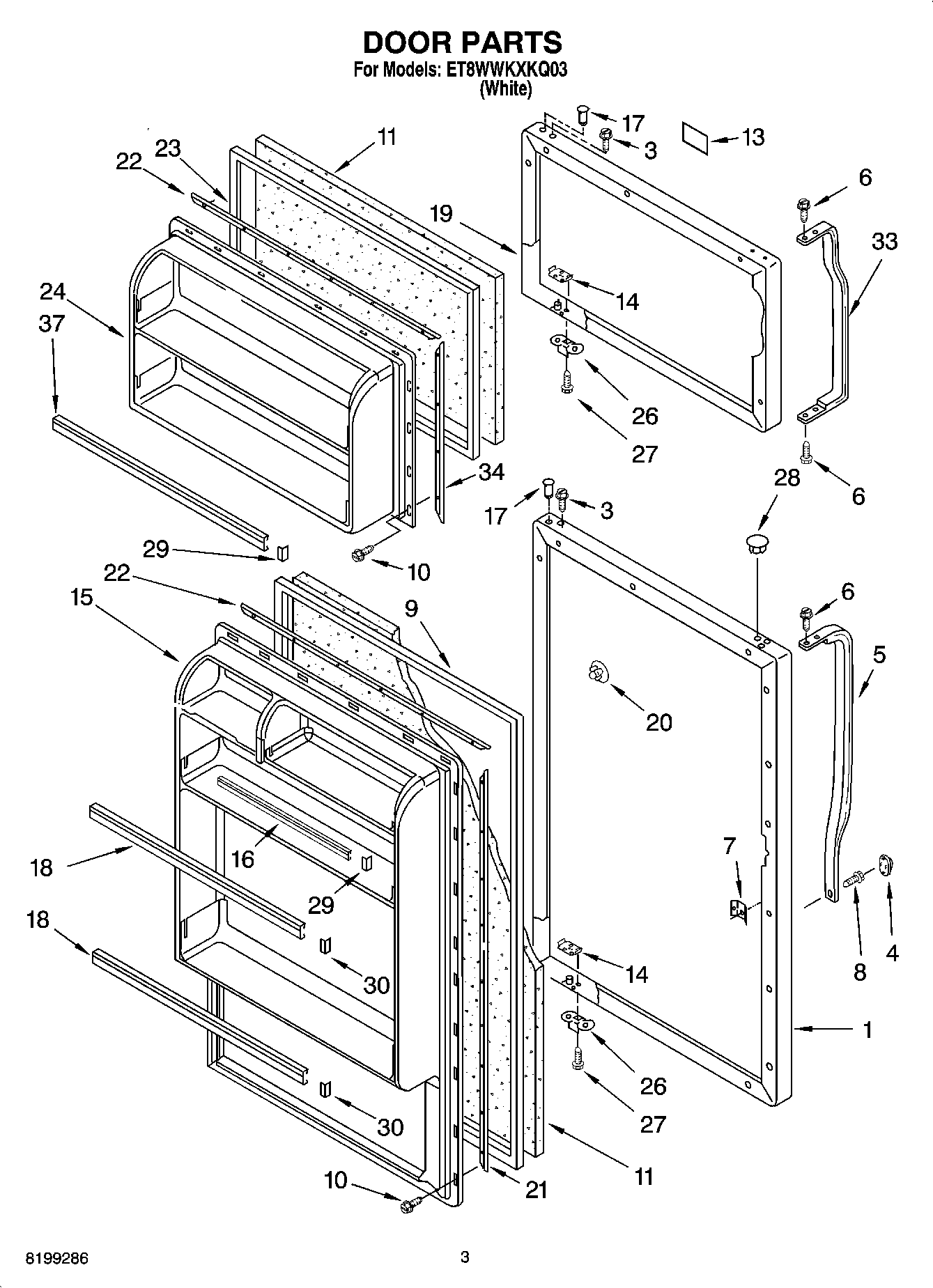

ET8WWKXKQ03 02 – DOOR PARTS

ET8WWKXKQ03 02 – DOOR PARTS

Written by

in

ET8WWKXKQ03 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (White)
3WP8281206 Whirlpool Refrigerator Screw
4WP2202819W Whirlpool Refrigerator Cover
5HANDLE
6WP489357 Whirlpool Recessed Screw
7WP939101 Whirlpool Refrigerator Plate
8WP8281146 Whirlpool Screw
9WP2319264T Whirlpool Door Gasket
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
13WP2213265 Whirlpool Refrigerator Nameplate
14Tap Plate
15Interior Door Panel (Refrigerator)
17WP2183003 Whirlpool Thimble
18Trim, Door (Middle)
19Freezer Door Panel (Also Order Item 11) (White)
20WP2189000 Whirlpool Refrigerator Handle Plug
21Retainer, Gasket
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
33HANDLE
34Retainer, Gasket
37WP2163629 Whirlpool Refrigerator Door Trim
