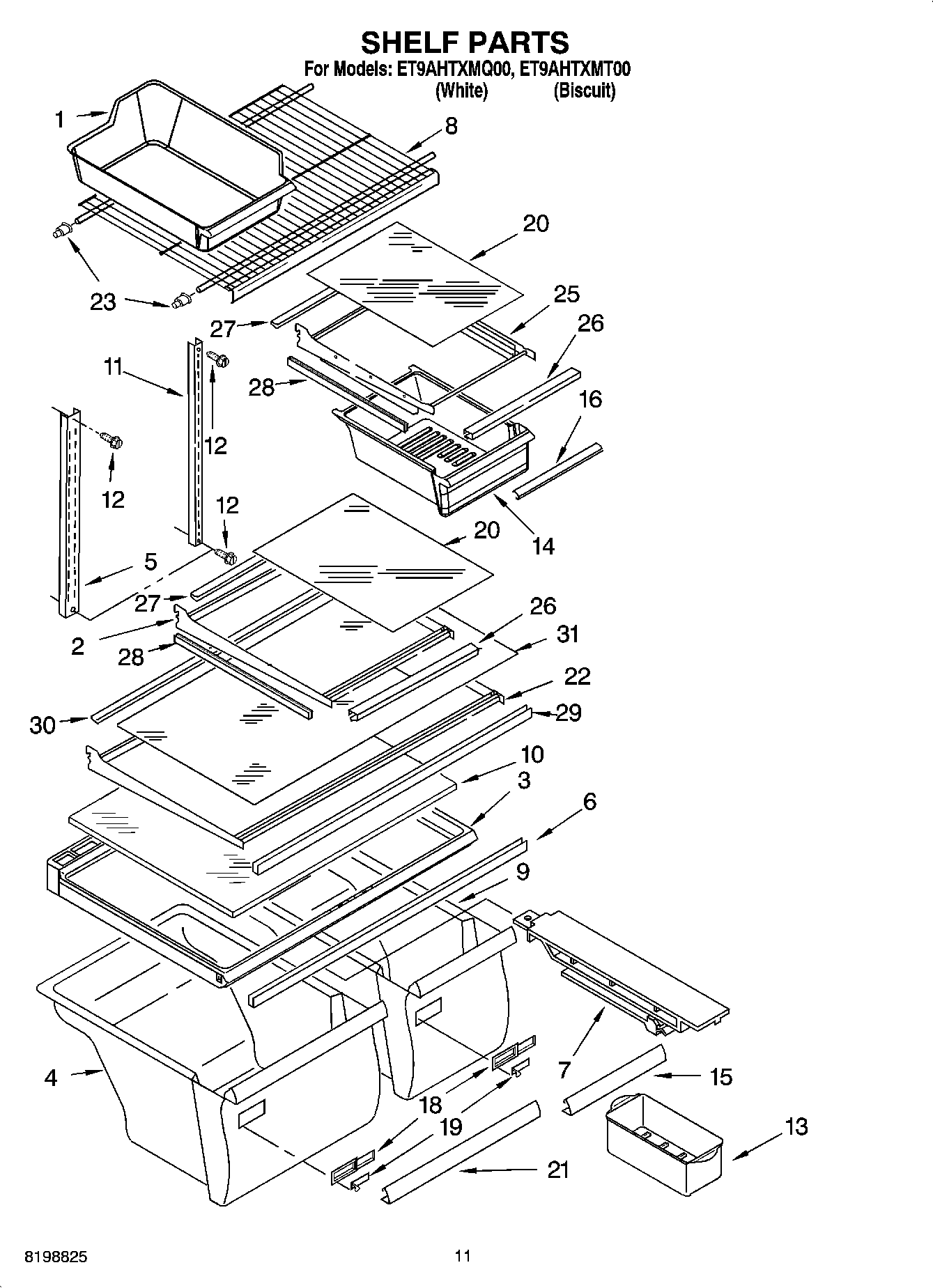

ET9AHTXMQ00 06 – SHELF PARTS

Products

Position	Product
1	2254352A Whirlpool Refrigerator Ice Container
2	Shelf, Cantilever (Complete)
3	WP2314548 Whirlpool Refrigerator Cover
4	W10854037 Whirlpool Refrigerator Crisper Pan
5	Shelf, Ladder
6	WP2172748 Whirlpool Drawer Support
7	WP2163835 Whirlpool Track Assembly
8	WP2176275 Whirlpool Refrigerator Wire Shelf
9	W10856580 Whirlpool Crisper Pan
10	WP2169921 Whirlpool Refrigerator Glass Shelf
11	Shelf, Ladder (2)
12	WP489478 Whirlpool Refrigerator Screw
13	W10136387A Whirlpool Refrigerator Egg Container
14	PAN-MEAT
15	Trim, Crisper Pan
16	Trim, Meat Pan
18	WP2212446 Whirlpool Refrigerator Control Body
19	WP2176222 Whirlpool Refrigerator Slide
20	Glass, Half Shelf
21	WP2195341 Whirlpool Refrigerator Pan Trim
22	(Complete Shelf Not Shown Includes Items 3,13,16,18 & 21)
23	2163762 Whirlpool Refrigerator Cup Assembly
25	Shelf, Cantilever Meat Pan (Complete)
26	Trim, Shelf Front
27	WP2188689 Whirlpool Refrigerator Shelf Trim
28	Trim, Shelf Side
29	Trim, Shelf (Front)
31	Glass, Full Shelf
