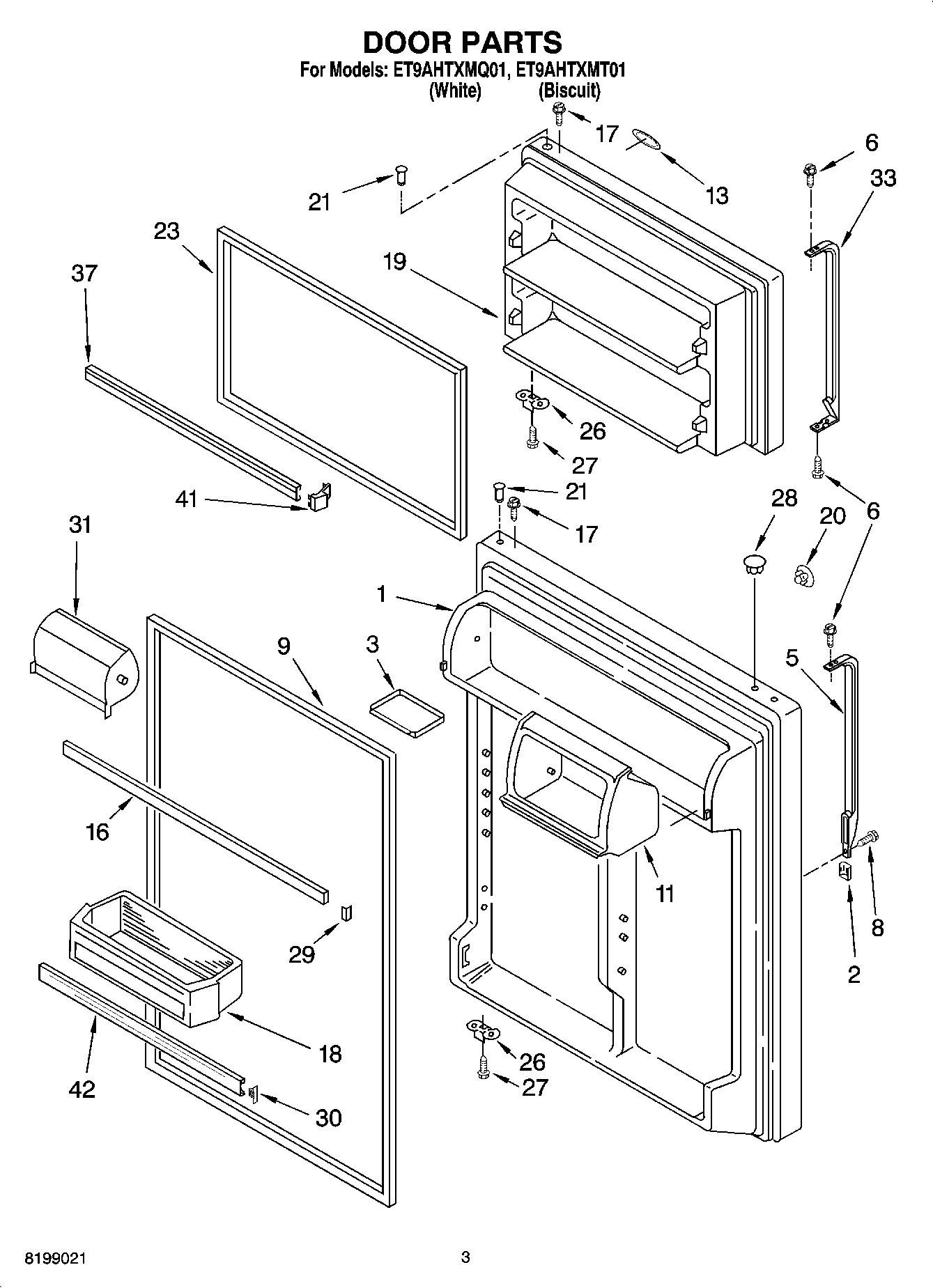

ET9AHTXMT01 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 2,3,6 & 8)
1	Refrigerator Door (Includes No.9 & No.21) (Biscuit)
2	WP2193353W Whirlpool Refrigerator Trim Handle
2	Cover, Trim (Biscuit)
3	Tray, Door
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	Housing Compartment
13	WP2213265 Whirlpool Refrigerator Nameplate
16	WP2159312 Whirlpool Refrigerator Door Trim
17	WP8281206 Whirlpool Refrigerator Screw
18	Bin, Door (4)
19	Freezer Door Panel (Biscuit)
19	Freezer Door (Includes Illus. 2,6 & 8)
20	WP2200936 Whirlpool Refrigerator Handle Plug
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212649 Whirlpool Refrigerator Button Plug
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	Endcap, Door Trim
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	DOOR-COMP
33	4388949 Whirlpool Refrigerator Handle
33	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
37	Trim-Door (2)
41	ENDCAP
42	WPW10421484 Whirlpool Refrigerator Door Trim
