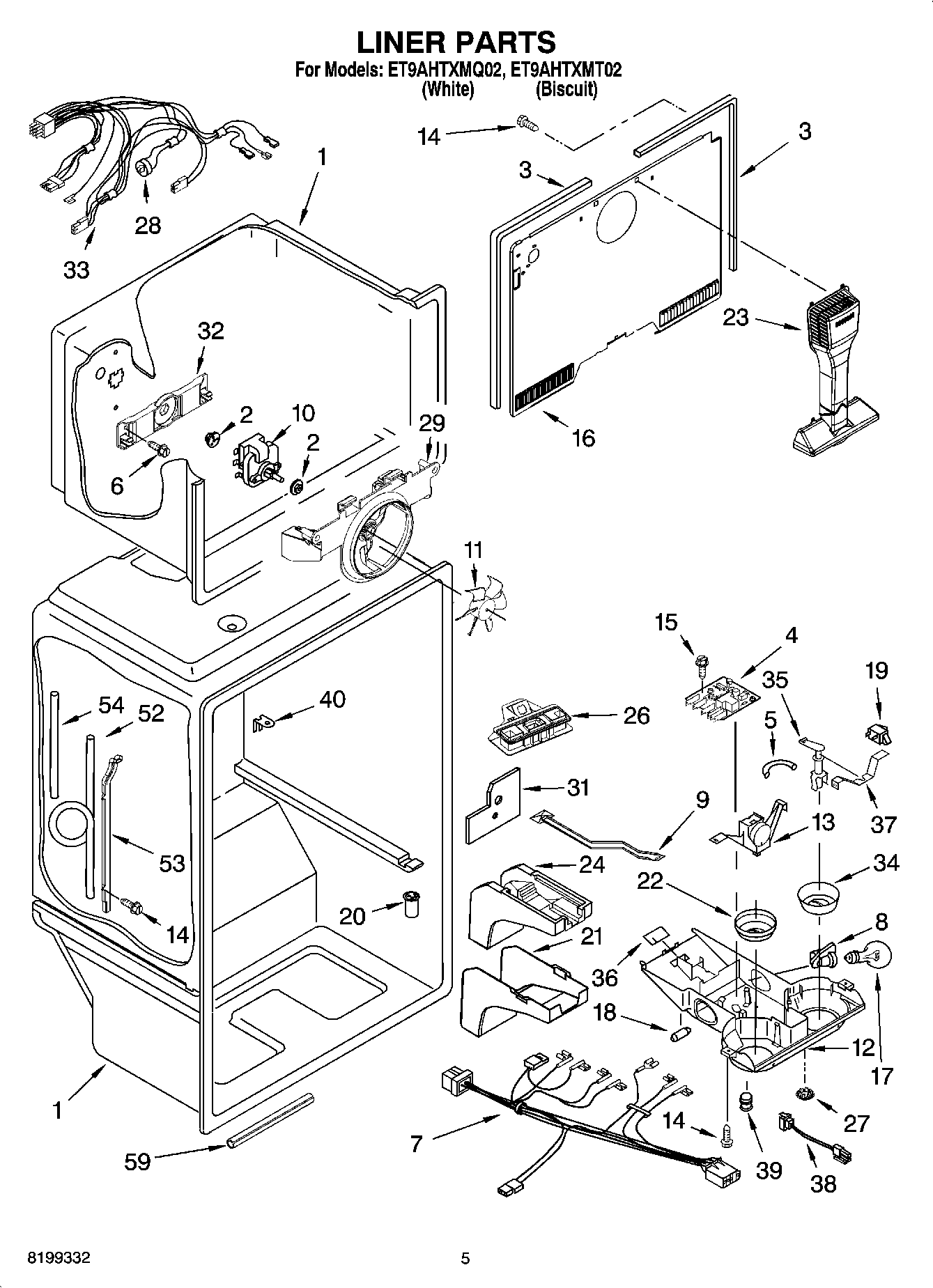

ET9AHTXMT02 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304093 Whirlpool Refrigerator Electronic Control Board
5	Thermostat Tube Barrier
6	WP488163 Whirlpool Refrigerator Screw
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	WP489478 Whirlpool Refrigerator Screw
15	Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	WP2210509 Whirlpool Refrigerator Tub Valve
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	Air Separator Assembly
27	940014 Whirlpool Refrigerator Primary Button Plug
28	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
29	BRACKET, FAN MOTOR
31	Shield, heat
32	2254454 Whirlpool Refrigerator Bracket
33	Wire Assembly Freezer Compt. (Includes Illus. 25)
34	Knob, Damper
35	Post, Damper
36	WP2205079 Whirlpool Refrigerator Seal
37	Bracket, Damper Knob
38	W10853646 Whirlpool Indicator Light
39	Lens-LED
40	Clip, Retainer
52	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
53	Cover, Tubing
54	Tube, Water Filter
59	Insulation, Water Tube
