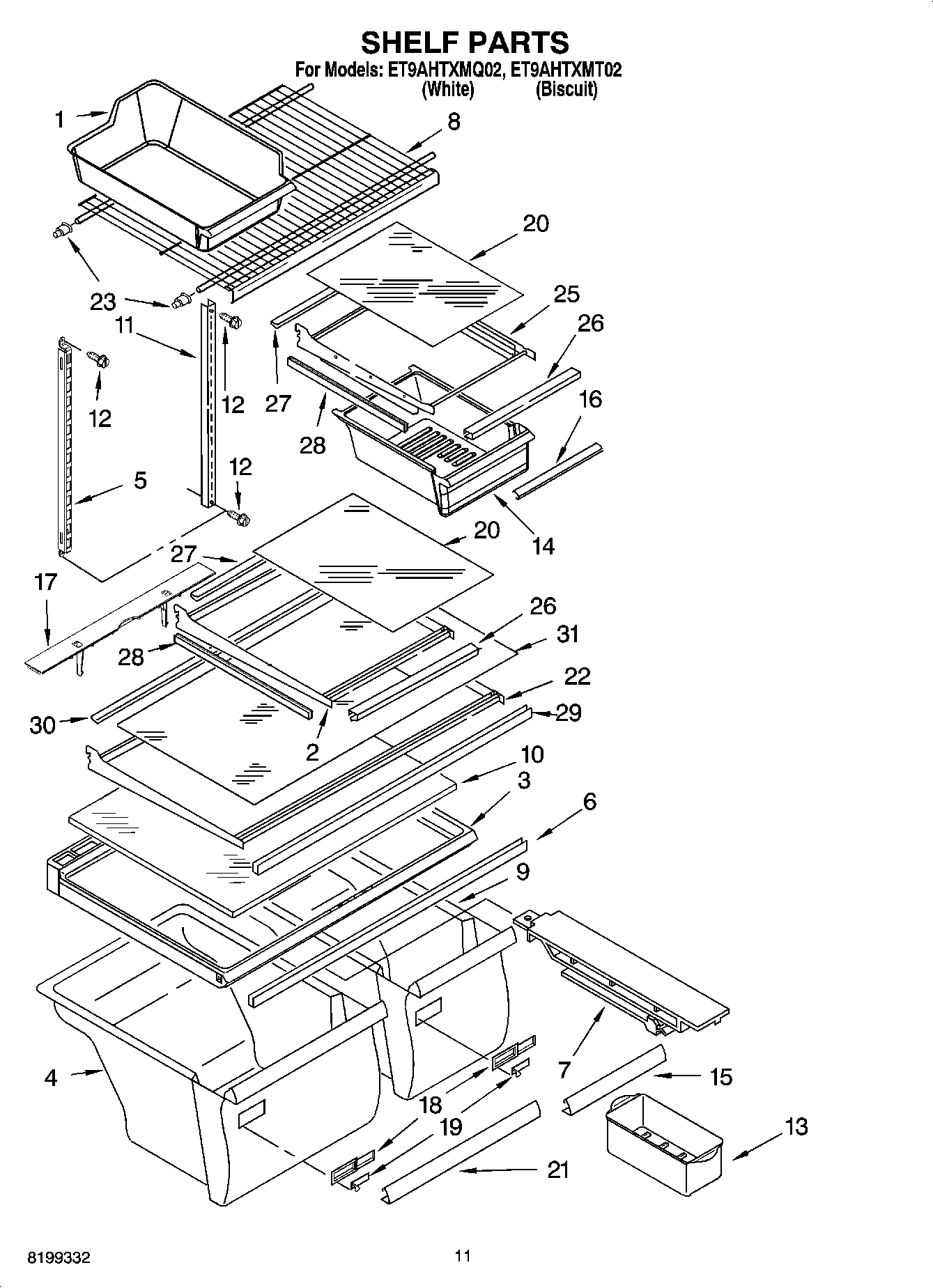

ET9AHTXMT02 06 – SHELF PARTSadmin2025-04-26T11:10:36+00:00ET9AHTXMT02 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | 2254352A Whirlpool Refrigerator Ice Container |
| 2 | Shelf, Cantilever (Complete) |
| 3 | WP2314548 Whirlpool Refrigerator Cover |
| 4 | W10854037 Whirlpool Refrigerator Crisper Pan |
| 5 | Shelf, Ladder Center |
| 6 | WP2172748 Whirlpool Drawer Support |
| 7 | WP2163835 Whirlpool Track Assembly |
| 8 | WP2176275 Whirlpool Refrigerator Wire Shelf |
| 9 | W10856580 Whirlpool Crisper Pan |
| 10 | WP2169921 Whirlpool Refrigerator Glass Shelf |
| 11 | Shelf, Ladder (2) |
| 12 | WP489478 Whirlpool Refrigerator Screw |
| 13 | W10136387A Whirlpool Refrigerator Egg Container |
| 14 | PAN-MEAT |
| 15 | Trim, Crisper Pan |
| 16 | Trim, Meat Pan |
| 17 | Deflector-Air |
| 18 | WP2212446 Whirlpool Refrigerator Control Body |
| 19 | WP2176222 Whirlpool Refrigerator Slide |
| 20 | Glass, Half Shelf |
| 21 | WP2195341 Whirlpool Refrigerator Pan Trim |
| 22 | (Complete Shelf Not Shown Includes Items 3,13,16,18 & 21) |
| 23 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 25 | Shelf, Cantilever Meat Pan (Complete) |
| 26 | Trim, Shelf Front |
| 27 | WP2188689 Whirlpool Refrigerator Shelf Trim |
| 28 | Trim, Shelf Side |
| 29 | Trim, Shelf (Front) |
| 31 | Glass, Full Shelf |
