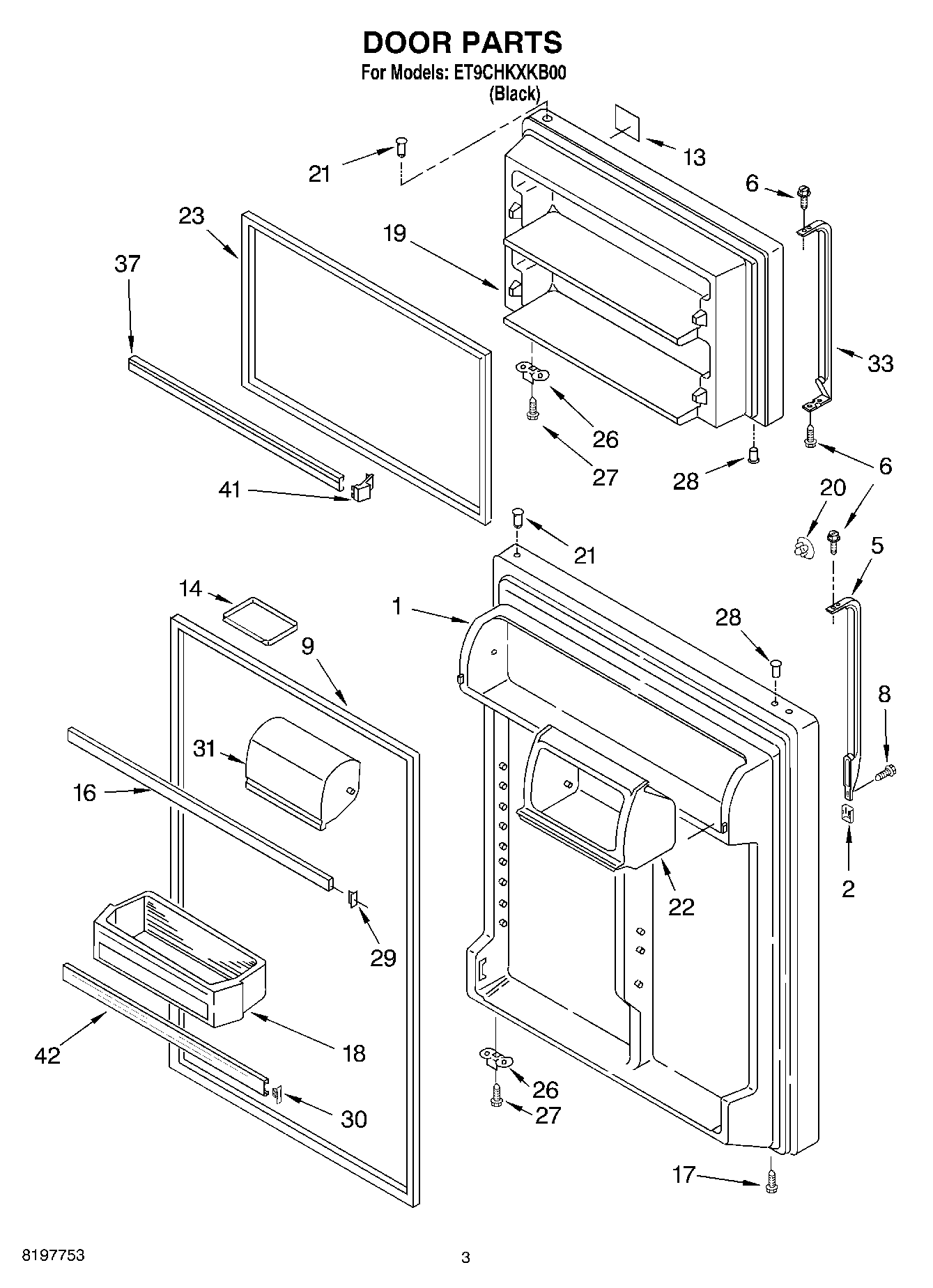

ET9CHKXKB00 02 – DOOR

ET9CHKXKB00 02 – DOOR

Written by

in

ET9CHKXKB00 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.21) (Black)
2Cover, Trim (Black)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92177305 Whirlpool Refrigerator Door FIP Gasket
13Nameplate (Black)
14Tray, Door
16WP2159312 Whirlpool Refrigerator Door Trim
17WP8281206 Whirlpool Refrigerator Screw
18Bin, Door (4)
19Freezer Door Panel (Black)
20WP2189009 Whirlpool Refrigerator Handle Plug
21WP2183003 Whirlpool Thimble
22Housing Compartment
232177304 Whirlpool Refrigerator FIP Gasket
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212651 Whirlpool Refrigerator Button Plug
29Endcap, Door Trim
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31DOOR-COMP
334388950 Whirlpool Refrigerator Handle
37Trim-Door (2)
41ENDCAP
42WPW10421484 Whirlpool Refrigerator Door Trim
