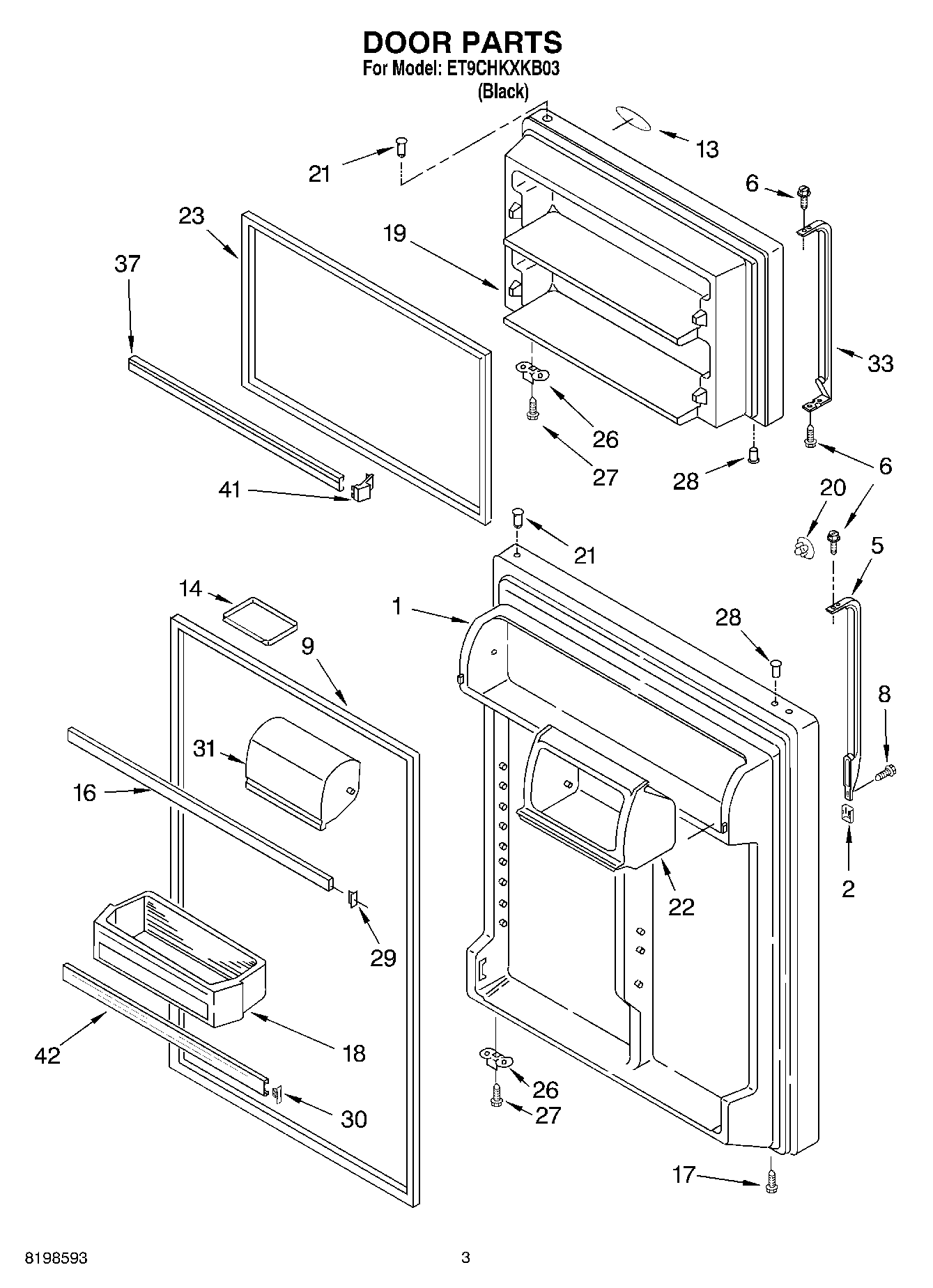

ET9CHKXKB03 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.21) (Black)
2	Cover, Trim (Black)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2177305 Whirlpool Refrigerator Door FIP Gasket
13	WP2213265 Whirlpool Refrigerator Nameplate
14	Tray, Door
16	WP2159312 Whirlpool Refrigerator Door Trim
17	WP8281206 Whirlpool Refrigerator Screw
18	Bin, Door (4)
19	Freezer Door Panel (Black)
20	WP2189009 Whirlpool Refrigerator Handle Plug
21	WP2183003 Whirlpool Thimble
22	Housing Compartment
23	2177304 Whirlpool Refrigerator FIP Gasket
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212651 Whirlpool Refrigerator Button Plug
29	Endcap, Door Trim
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	DOOR-COMP
33	4388950 Whirlpool Refrigerator Handle
37	Trim-Door (2)
41	ENDCAP
42	WPW10421484 Whirlpool Refrigerator Door Trim
