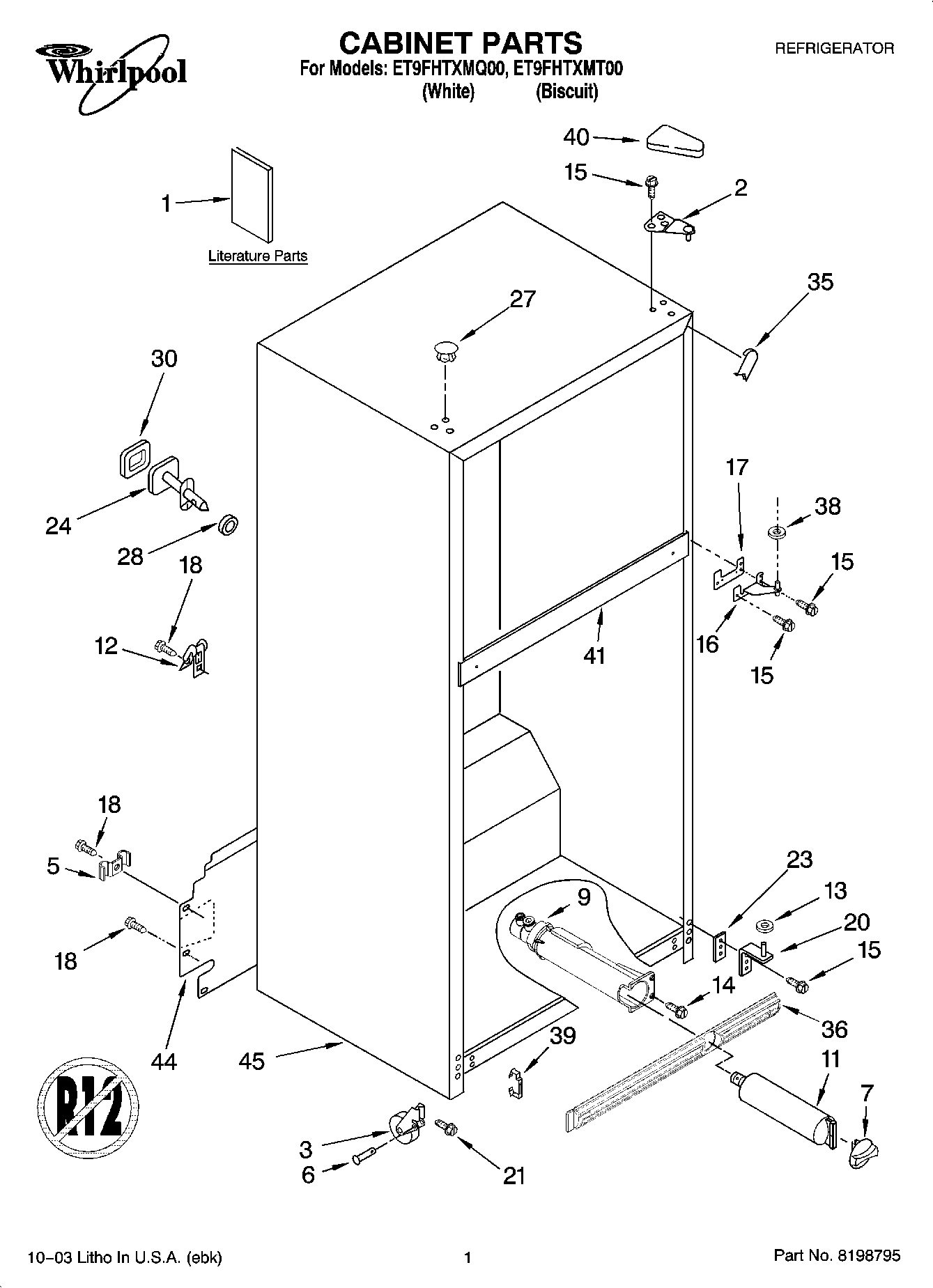

ET9FHTXMQ00 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Literature Parts (Energy Label)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Customer Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Instruction Sheet, Water Filter)
1	Literature Parts (Service & Wiring Sheet)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	Clamp, Tube (Water Supply Line)
6	W11594405 Whirlpool Axle
7	WP2186494T Whirlpool Water Filter Cap
7	WP2186494W Whirlpool Water Filter Cap
9	WP2225521 Whirlpool Water Filter Housing
11	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
12	549193 Whirlpool Refrigerator Power Clamp
13	WP487576 Whirlpool Washer
14	SCREW
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	WP3400504 Whirlpool Refrigerator Screw
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
35	W10283958 Whirlpool Refrigerator Filler
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille (Includes Illus. 27) (White)
36	Grille (Biscuit)
38	WP489467 Whirlpool Hinge Shim
39	CLIP, GRILLE
40	2213364 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
