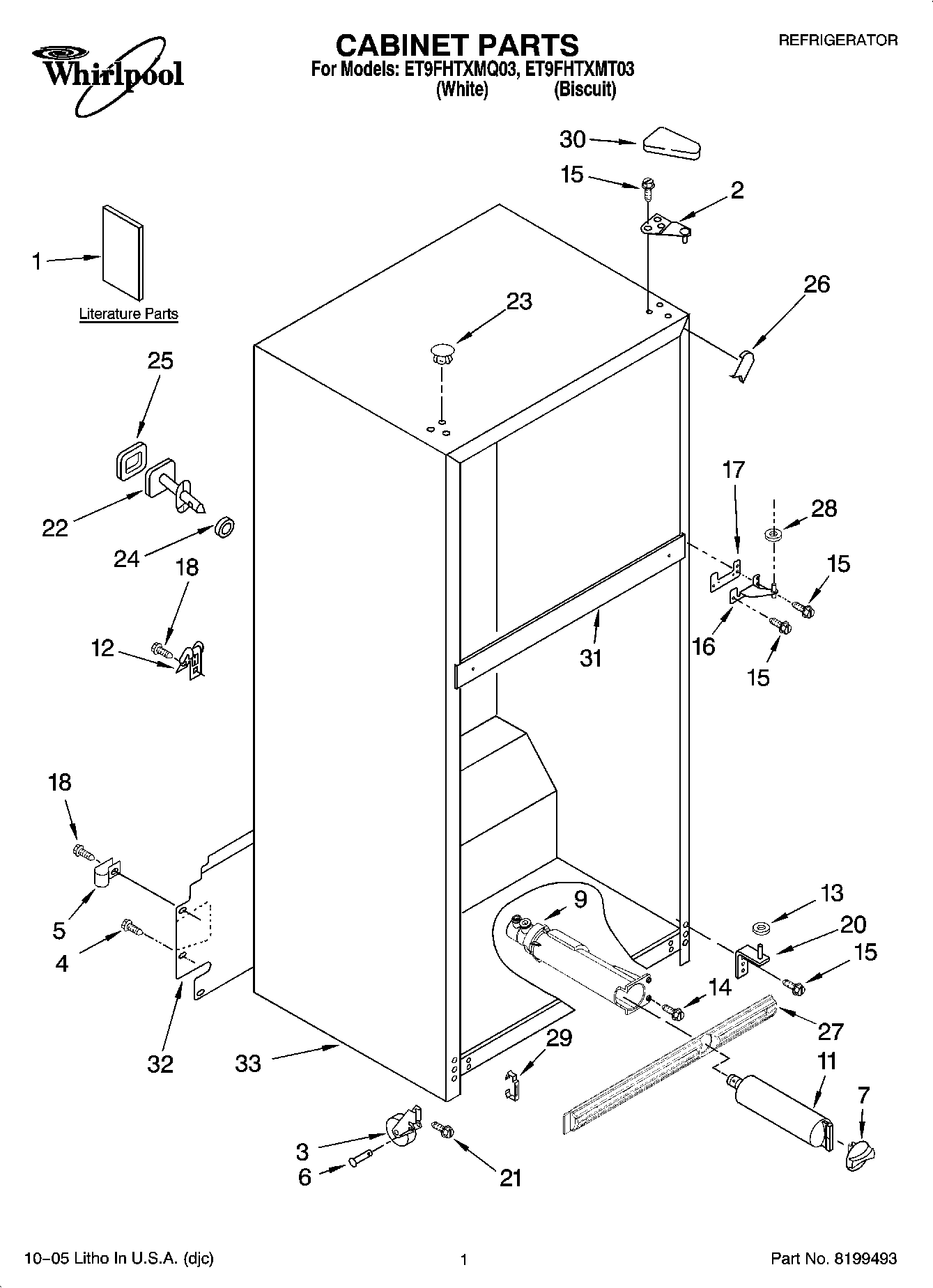

ET9FHTXMQ03 01 – CABINET PARTS

Products

Position	Product
1	Customer Instructions
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
1	Use & Care Guide
1	Modular Icemaker Service Sheet
1	Customer Instruct Sheet, Wtr Filter
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489427 Whirlpool Refrigerator Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	W11594405 Whirlpool Axle
7	WP2186494T Whirlpool Water Filter Cap
7	WP2186494W Whirlpool Water Filter Cap
9	WP2225521 Whirlpool Water Filter Housing
11	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
12	549193 Whirlpool Refrigerator Power Clamp
13	WP487576 Whirlpool Washer
14	SCREW
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	WP3400504 Whirlpool Refrigerator Screw
22	Fitting, Water Tube (Not Serviced)
23	WP2151652 Whirlpool Refrigerator Button Plug
23	Hole Plug (6) (Biscuit)
24	Seal, Front (Not Serviced)
25	Seal, Rear (Not Serviced)
26	WPW10283959 Whirlpool Refrigerator Filler
26	W10283958 Whirlpool Refrigerator Filler
27	Grille (Includes Illus. 27) (White)
27	Grille (Biscuit)
28	WP489467 Whirlpool Hinge Shim
29	CLIP, GRILLE
30	WP2213360 Whirlpool Refrigerator Cover
30	2213364 Whirlpool Refrigerator Cover
31	Rail Center (Not Serviced)
32	Cover, Unit
33	Cabinet (Not A Serviceable Part)
