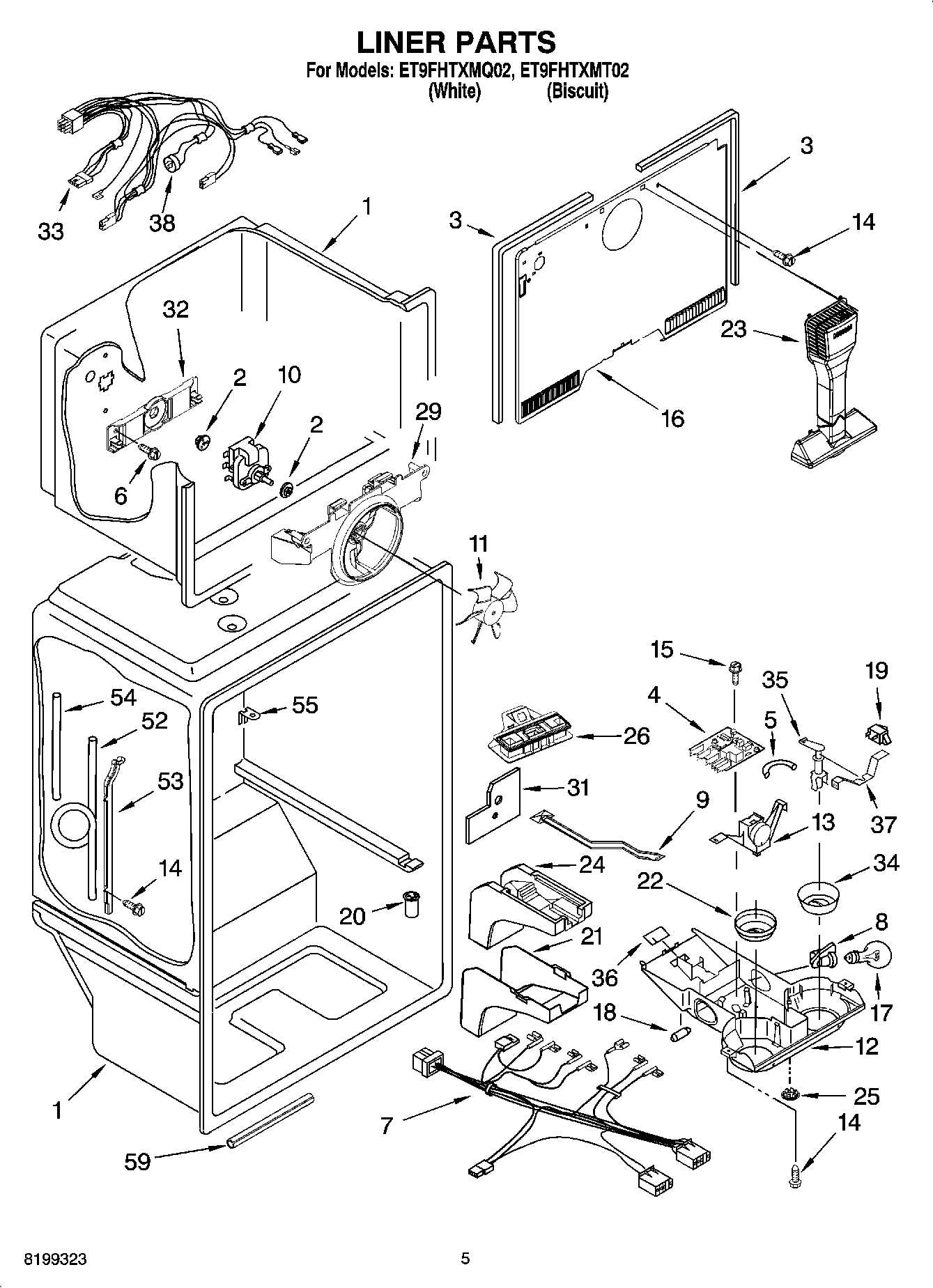

ET9FHTXMT02 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5Thermostat Tube Barrier
6WP488163 Whirlpool Refrigerator Screw
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Illus. 5 & 18)
14WP489478 Whirlpool Refrigerator Screw
15Screw
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20WP2210509 Whirlpool Refrigerator Tub Valve
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25940014 Whirlpool Refrigerator Primary Button Plug
26Air Separator Assembly
29BRACKET, FAN MOTOR
31Shield, heat
322254454 Whirlpool Refrigerator Bracket
33Wire Assembly Freezer Compt. (Includes Illus. 25)
34Knob, Damper
35Post, Damper
36WP2205079 Whirlpool Refrigerator Seal
37Bracket, Damper Knob
38WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
528201597 Whirlpool Inlet Water Fill Tube Kit Filter
53Cover, Tubing
54Tube, Water Filter
55Clip, Retainer
59Insulation, Water Tube
