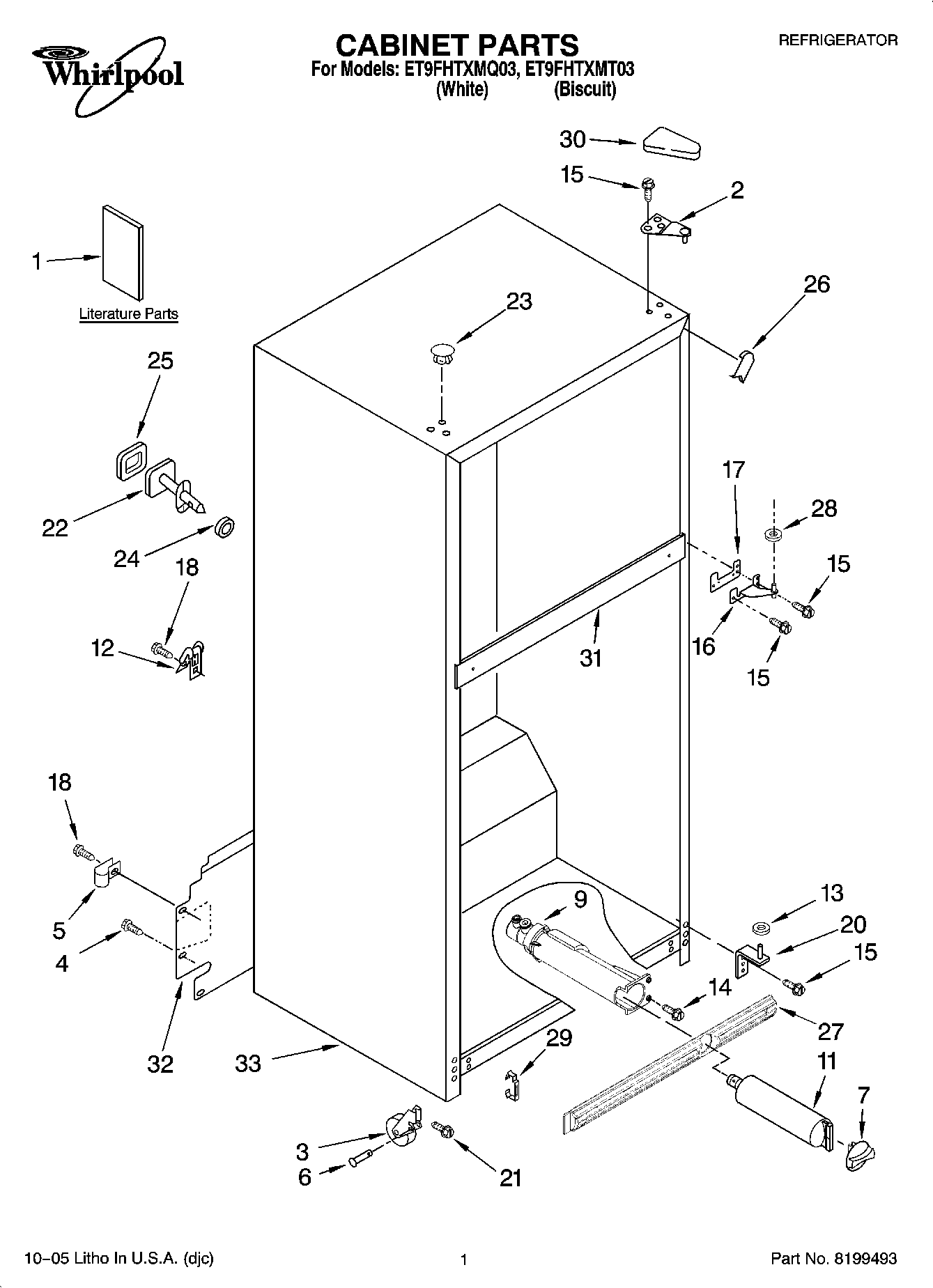

ET9FHTXMT03 01 – CABINET PARTS

ET9FHTXMT03 01 – CABINET PARTS

Written by

in

ET9FHTXMT03 01 – CABINET PARTS

Products

PositionProduct
1Customer Instructions
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Modular Icemaker Service Sheet
1Customer Instruct Sheet, Wtr Filter
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Service & Wiring Sheet
1Use & Care Guide
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
7WP2186494W Whirlpool Water Filter Cap
7WP2186494T Whirlpool Water Filter Cap
9WP2225521 Whirlpool Water Filter Housing
11EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
12549193 Whirlpool Refrigerator Power Clamp
13WP487576 Whirlpool Washer
14SCREW
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21WP3400504 Whirlpool Refrigerator Screw
22Fitting, Water Tube (Not Serviced)
23Hole Plug (6) (Biscuit)
23WP2151652 Whirlpool Refrigerator Button Plug
24Seal, Front (Not Serviced)
25Seal, Rear (Not Serviced)
26W10283958 Whirlpool Refrigerator Filler
26WPW10283959 Whirlpool Refrigerator Filler
27Grille (Includes Illus. 27) (White)
27Grille (Biscuit)
28WP489467 Whirlpool Hinge Shim
29CLIP, GRILLE
302213364 Whirlpool Refrigerator Cover
30WP2213360 Whirlpool Refrigerator Cover
31Rail Center (Not Serviced)
32Cover, Unit
33Cabinet (Not A Serviceable Part)
