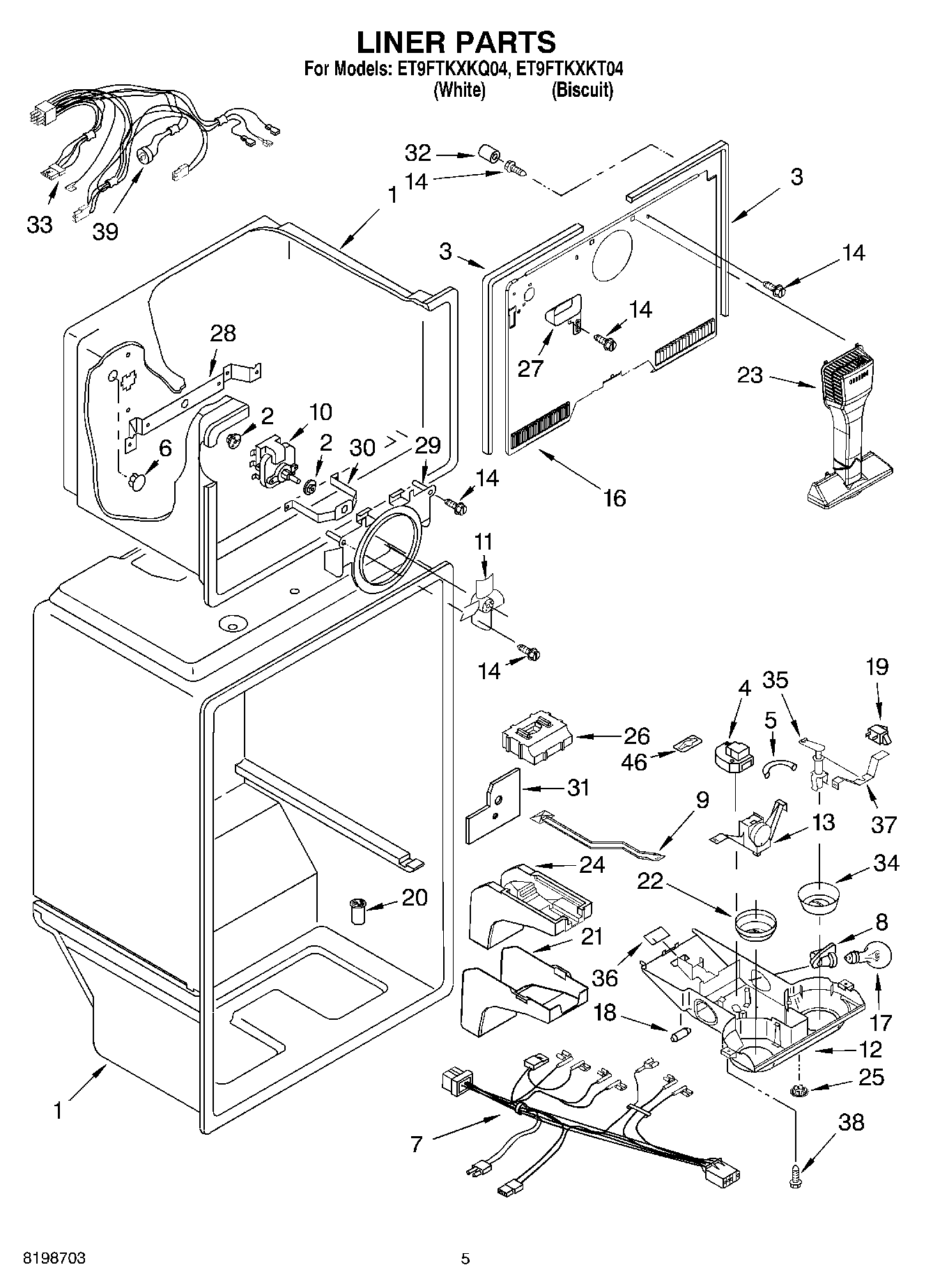

ET9FTKXKT04 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	Thermostat Tube Barrier
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	WP489478 Whirlpool Refrigerator Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	WP2210509 Whirlpool Refrigerator Tub Valve
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	940014 Whirlpool Refrigerator Primary Button Plug
26	Air Diffuser, Top
27	Cover, Hole
28	Bracket, Evap. Fan, Rear
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	Shield, heat
32	WP487996 Whirlpool Refrigerator Cap Tube
33	Wire Assembly, Freezer Compartment
34	Knob, Damper
35	Post, Damper
36	WP2205079 Whirlpool Refrigerator Seal
37	Bracket, Damper Knob
38	WP489442 Whirlpool Refrigerator Screw
39	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
46	Clip, Defrost Timer
