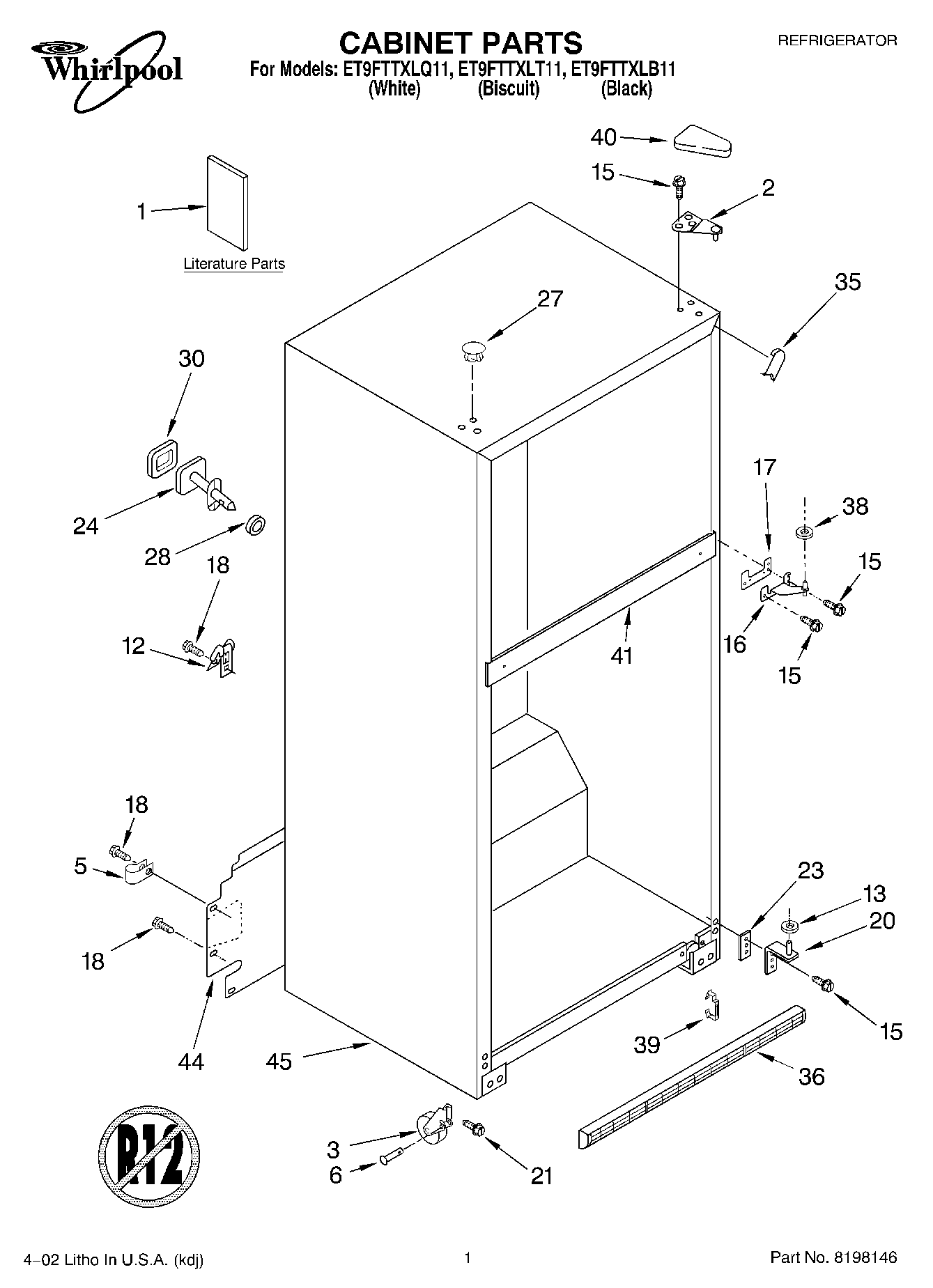

ET9FTTXLB11 01 – CABINET, LITERATURE

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Modular Icemaker Service Sheet
1	LITERATURE PARTS (Customer Quick Tips)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Instruction Sheet, Water Filter)
1	Literature Parts (Service & Wiring Sheet)
1	Literature Parts (Energy Label)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	W11594405 Whirlpool Axle
12	549193 Whirlpool Refrigerator Power Clamp
13	WP487576 Whirlpool Washer
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	WP3400504 Whirlpool Refrigerator Screw
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2183998 Whirlpool Refrigerator Button Plug
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
35	W10283958 Whirlpool Refrigerator Filler
35	W11252732 Whirlpool Refrigerator Filler
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille (Black)
36	WP2254386 Whirlpool Refrigerator Grille
38	WP489467 Whirlpool Hinge Shim
39	CLIP, GRILLE
40	2213364 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
40	WP2213363 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
