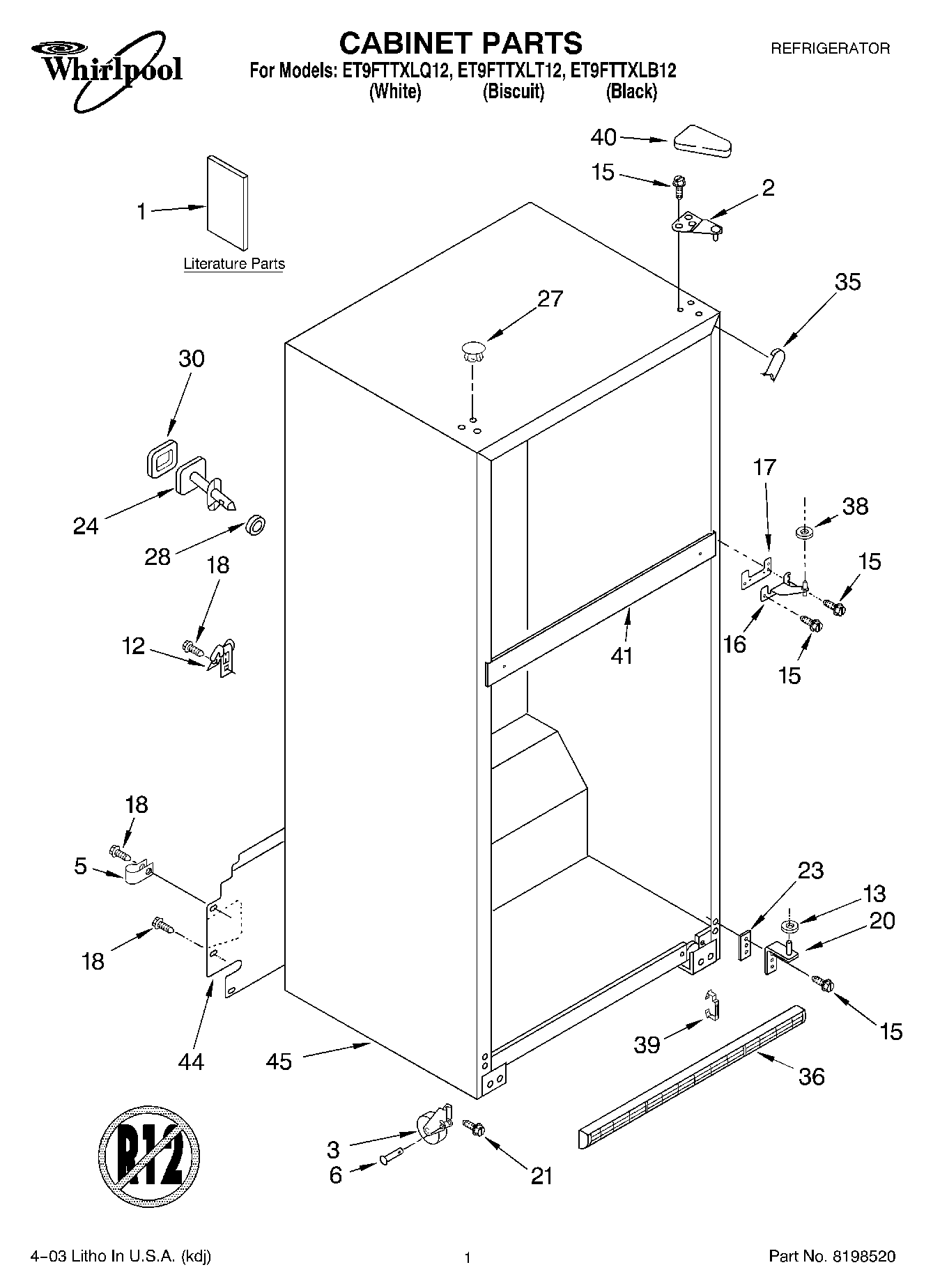

ET9FTTXLT12 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Energy Label)
1Literature Parts (Instruction Sheet, Water Filter)
1Literature Parts (Service & Wiring Sheet)
1Modular Icemaker Service Sheet
1Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1Literature Parts (Customer Instructions)
1Literature Parts (Use & Care Guide)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
12549193 Whirlpool Refrigerator Power Clamp
13WP487576 Whirlpool Washer
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21WP3400504 Whirlpool Refrigerator Screw
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27WP2183998 Whirlpool Refrigerator Button Plug
27Hole Plug (6) (Biscuit)
27WP2151652 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35W10283958 Whirlpool Refrigerator Filler
35WPW10283959 Whirlpool Refrigerator Filler
35W11252732 Whirlpool Refrigerator Filler
36Grille (Black)
36WP2254386 Whirlpool Refrigerator Grille
38WP489467 Whirlpool Hinge Shim
39CLIP, GRILLE
402213364 Whirlpool Refrigerator Cover
40WP2213360 Whirlpool Refrigerator Cover
40WP2213363 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44Cover, Unit
45Cabinet (Not A Serviceable Part)
