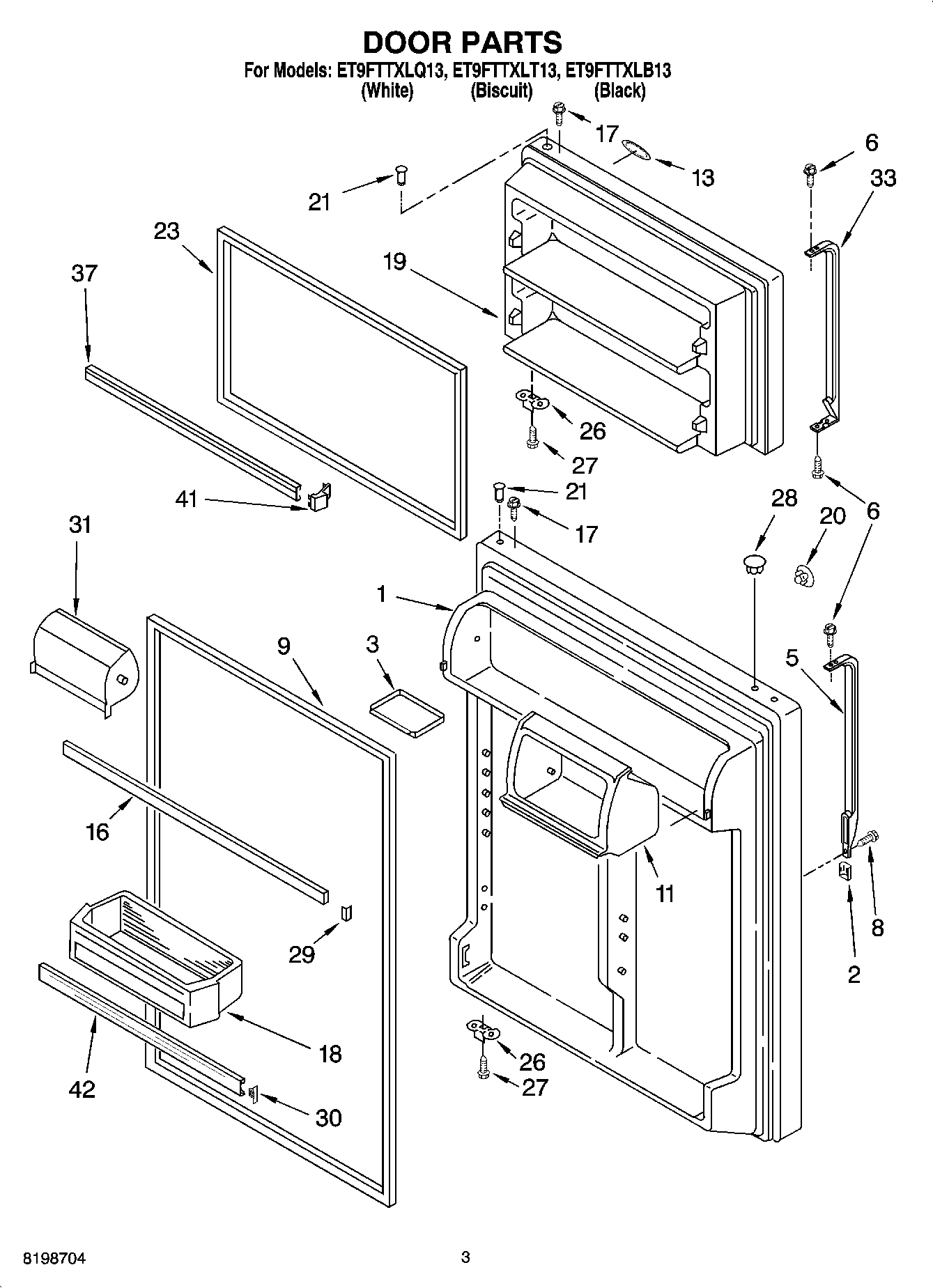

ET9FTTXLT13 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 2,3,6 & 8)
1Refrigerator Door (Includes No.9 & No.21) (Biscuit)
1Refrigerator Door (Includes No.9 & No.21) (Black)
2WP2193353W Whirlpool Refrigerator Trim Handle
2Cover, Trim (Black)
2Cover, Trim (Biscuit)
3Tray, Door
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
11Housing Compartment
13WP2213265 Whirlpool Refrigerator Nameplate
16WP2159312 Whirlpool Refrigerator Door Trim
17WP8281206 Whirlpool Refrigerator Screw
18Bin, Door (4)
19Freezer Door (Includes Illus. 2,6 & 8)
19Freezer Door Panel (Black)
19Freezer Door Panel (Biscuit)
20WP2200936 Whirlpool Refrigerator Handle Plug
20WP2189009 Whirlpool Refrigerator Handle Plug
20WP2189000 Whirlpool Refrigerator Handle Plug
21WP2183003 Whirlpool Thimble
232159327 Whirlpool Refrigerator Door Gasket
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212649 Whirlpool Refrigerator Button Plug
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28WP2212651 Whirlpool Refrigerator Button Plug
29Endcap, Door Trim
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31DOOR-COMP
334388949 Whirlpool Refrigerator Handle
334388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
334388950 Whirlpool Refrigerator Handle
37Trim-Door (2)
41ENDCAP
42WPW10421484 Whirlpool Refrigerator Door Trim
