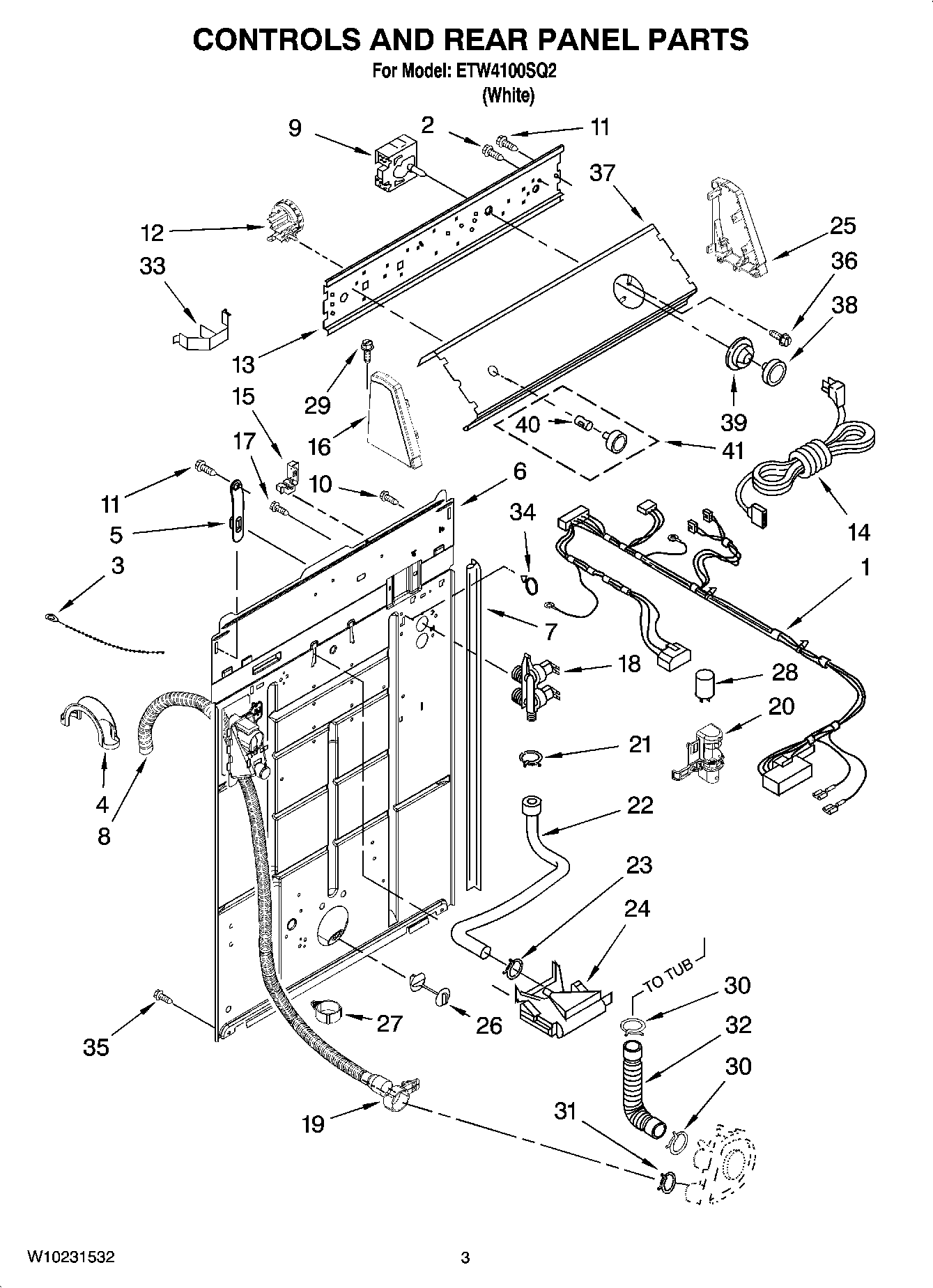

ETW4100SQ2 02 – CONTROLS AND REAR PANEL PARTS

ETW4100SQ2 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

ETW4100SQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Harness, Wiring (For Detail See Pages 9 & 10)
23400073 Whirlpool Screw
3WPW10339879 Whirlpool Wire Tie
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8WPW10096921 Whirlpool Hose
9WP8546681 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339251 Whirlpool Washer Water Level Control Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17WP9740848 Whirlpool Dishwasher Screw
18WPW10113122 Whirlpool Water Valve
198541668 Whirlpool Washer Clamp
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25279960 Whirlpool Endcap Assembly
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
29WP388326 Whirlpool Screw
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
348559320 Whirlpool Clip
35WP3390631 Whirlpool Screw
36WP3400818 Whirlpool Screw
37Panel, Console
38WP8538949 Whirlpool Knob
39WP8538955 Whirlpool Dial
40WP8536939 Whirlpool Spring Clip
41KNOB
