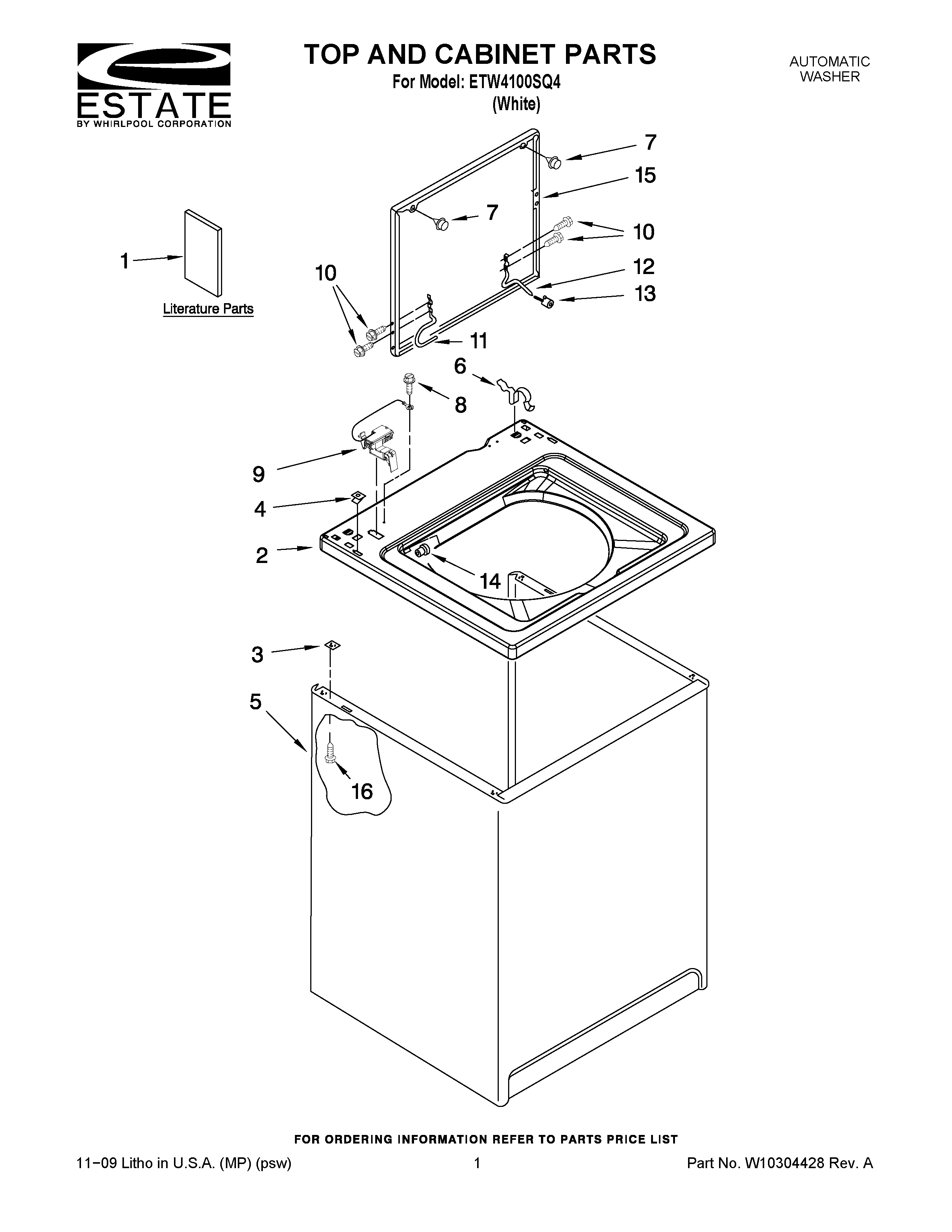

ETW4100SQ4 01 – TOP AND CABINET PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1	Feature Sheet (English/French)
1	Feature Sheet (Spanish)
1	Use & Care Guide (English/French)
1	Use & Care Guide (Spanish)
1	Energy Guide
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP9724509 Whirlpool Bumper
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	SCREW
11	Hinge, Lid (L.H.)
12	WP54583 Whirlpool Hinge
13	Bumper, Lid Hinge
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	WPW10193857 Whirlpool Lid Assembly
16	WP3390631 Whirlpool Screw
