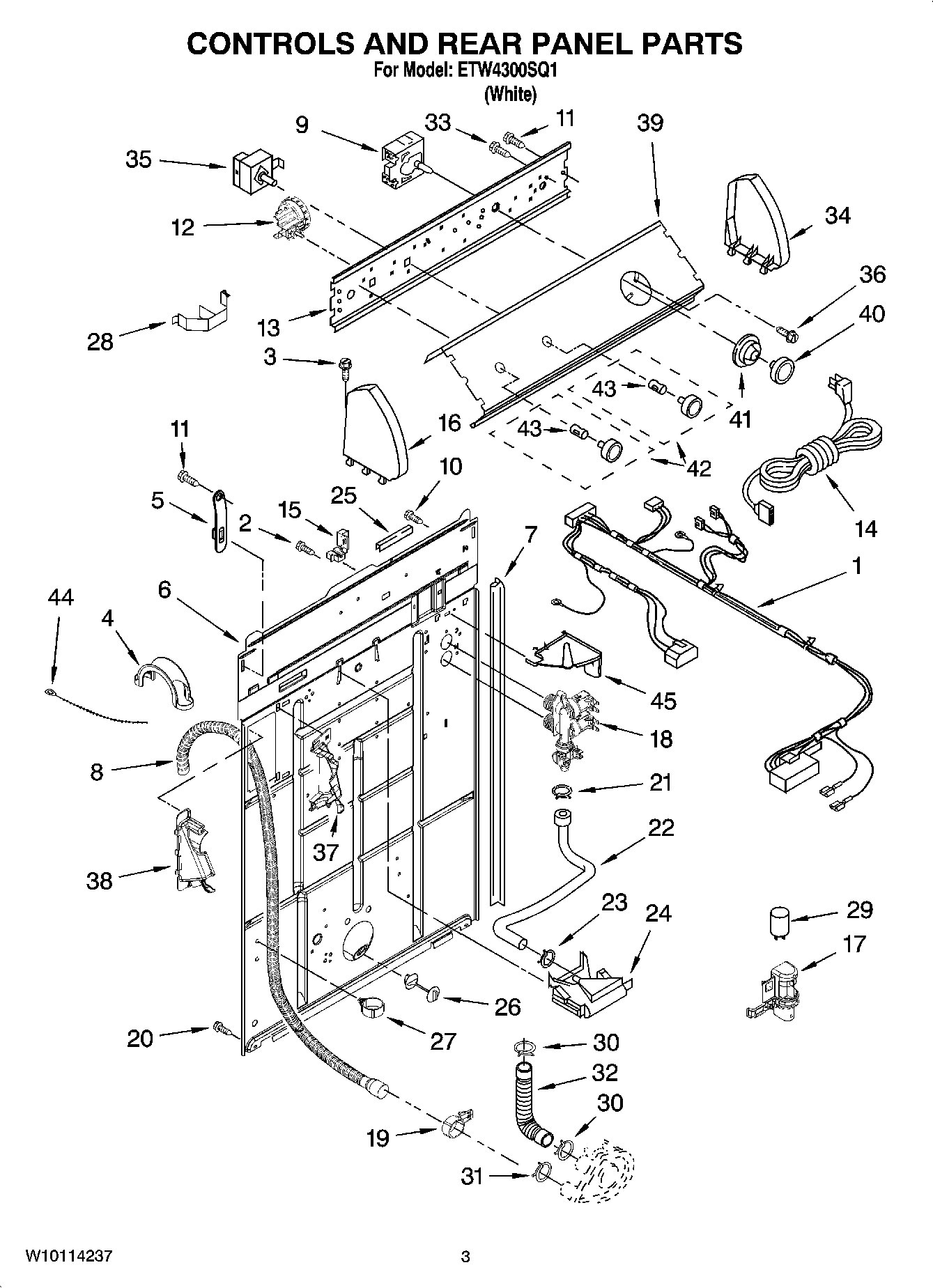

ETW4300SQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Harness, Wiring (For Detail See Pages 9 & 10)
2	WP9740848 Whirlpool Dishwasher Screw
3	WP388326 Whirlpool Screw
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	TIMER-WASHER
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	Clip, Capacitor
18	WP8578340 Whirlpool Valve
19	8541668 Whirlpool Washer Clamp
20	WP3390631 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	Clip, Harness & Pressure Hose
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
34	279960 Whirlpool Endcap Assembly
35	WP8578337 Whirlpool Water Temperature Switch
36	WP3400818 Whirlpool Screw
38	WPW10096921 Whirlpool Hose
39	Panel, Console
40	WP8538949 Whirlpool Knob
41	WP8538955 Whirlpool Dial
42	KNOB
43	WP8536939 Whirlpool Spring Clip
44	WPW10339879 Whirlpool Wire Tie
45	WPL 8539874
