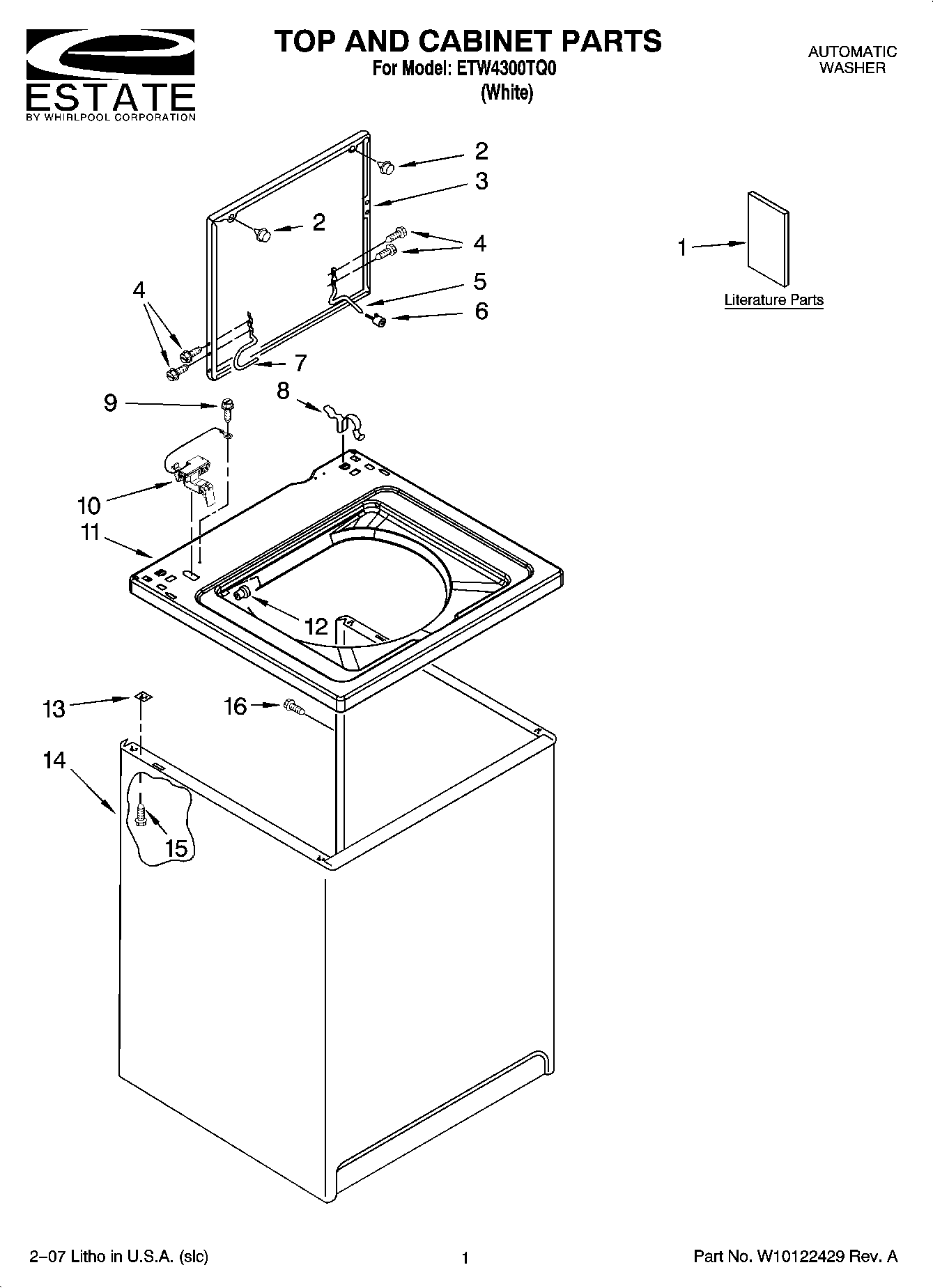

ETW4300TQ0 01 – TOP AND CABINET PARTS

ETW4300TQ0 01 – TOP AND CABINET PARTS

Written by

in

ETW4300TQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
1Installation Instructions
1Energy Guide
2WP9724509 Whirlpool Bumper
3WPW10193857 Whirlpool Lid Assembly
4SCREW
5WP54583 Whirlpool Hinge
6Bumper, Lid Hinge
78318088 Whirlpool Hinge Assembly
8WP62780 Whirlpool Cabinet Clip
9WP3351614 Whirlpool Screw
10WP8318084 Whirlpool Washer Lid Switch Assembly
11TOP
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP62750 Whirlpool Spacer
1463424 Whirlpool Cabinet Assembly
15WP3390631 Whirlpool Screw
16WP308685 Whirlpool Microwave Screw
