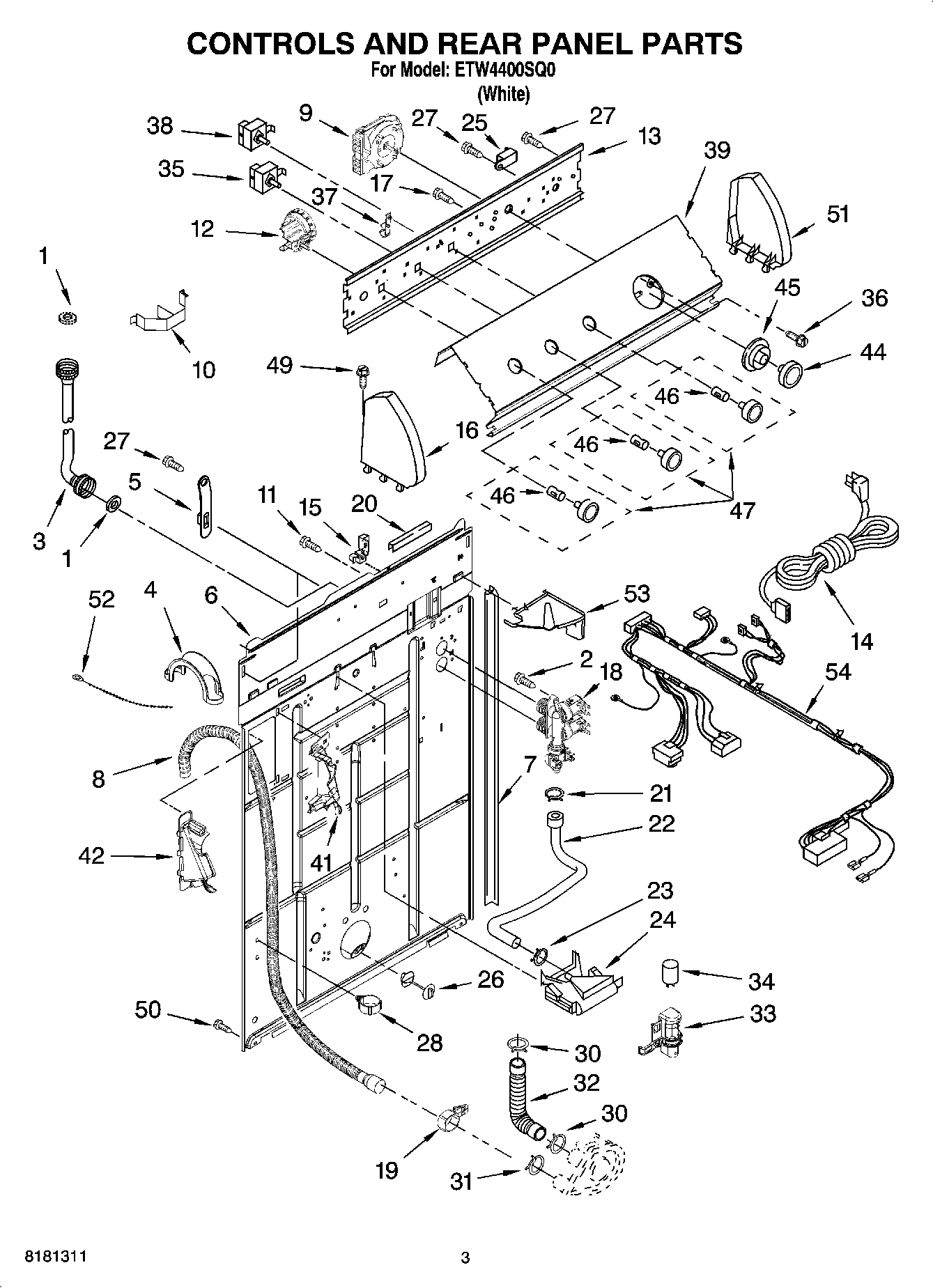

ETW4400SQ0 02 – CONTROLS AND REAR PANEL PARTS

ETW4400SQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

ETW4400SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8577356 Whirlpool Washer Timer
10Clip, Harness & Pressure Hose
11WP3351614 Whirlpool Screw
12W10339251 Whirlpool Washer Water Level Control Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
173400073 Whirlpool Screw
18WP8578341 Whirlpool Valve
198541668 Whirlpool Washer Clamp
20Edge Protector
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP694419 Whirlpool Buzzer Adjuster
26WP8519200 Whirlpool Support Assembly
27WP90767 Whirlpool Screw
28Clamp, Hose
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Capacitor
34CAPACITOR
35WP8578337 Whirlpool Water Temperature Switch
36WP3400818 Whirlpool Screw
37Retainer, Harness
38WPW10168257 Whirlpool Cycle Switch
39Panel, Console
42WPW10096921 Whirlpool Hose
44WP8538949 Whirlpool Knob
45WP8538955 Whirlpool Dial
46WP8536939 Whirlpool Spring Clip
47KNOB
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
52WPW10339879 Whirlpool Wire Tie
53WPL 8539874
54WPL W10039460
