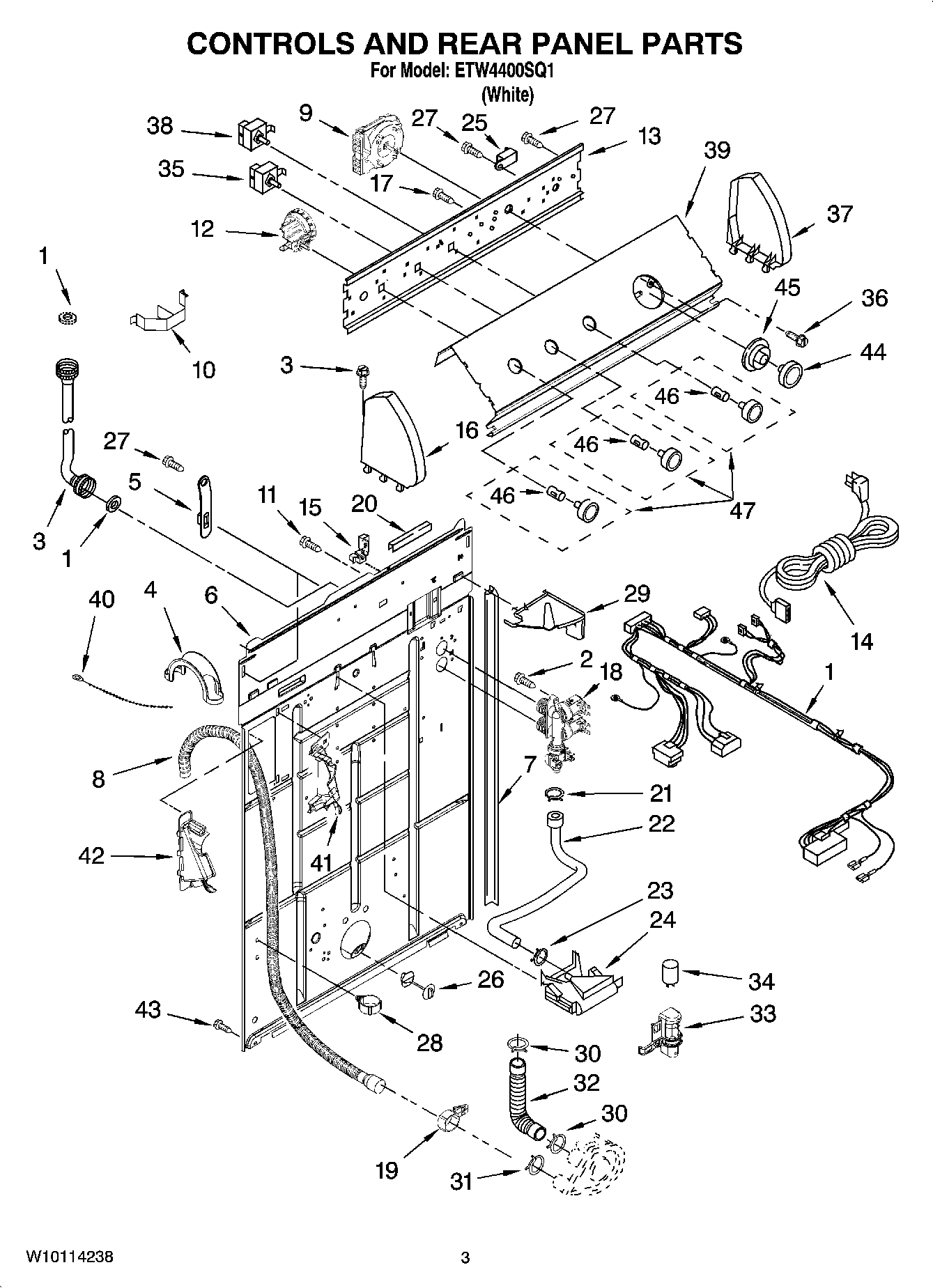

ETW4400SQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WPL W10039460
2	WP9740848 Whirlpool Dishwasher Screw
3	WP388326 Whirlpool Screw
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8577356 Whirlpool Washer Timer
10	Clip, Harness & Pressure Hose
11	WP3351614 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	3400073 Whirlpool Screw
18	WP8578341 Whirlpool Valve
19	8541668 Whirlpool Washer Clamp
20	Edge Protector
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP694419 Whirlpool Buzzer Adjuster
26	WP8519200 Whirlpool Support Assembly
27	WP90767 Whirlpool Screw
28	Clamp, Hose
29	WPL 8539874
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Capacitor
34	CAPACITOR
35	WP8578337 Whirlpool Water Temperature Switch
36	WP3400818 Whirlpool Screw
37	279960 Whirlpool Endcap Assembly
38	WPW10168257 Whirlpool Cycle Switch
39	Panel, Console
40	WPW10339879 Whirlpool Wire Tie
42	WPW10096921 Whirlpool Hose
43	WP3390631 Whirlpool Screw
44	WP8538949 Whirlpool Knob
45	WP8538955 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	KNOB
