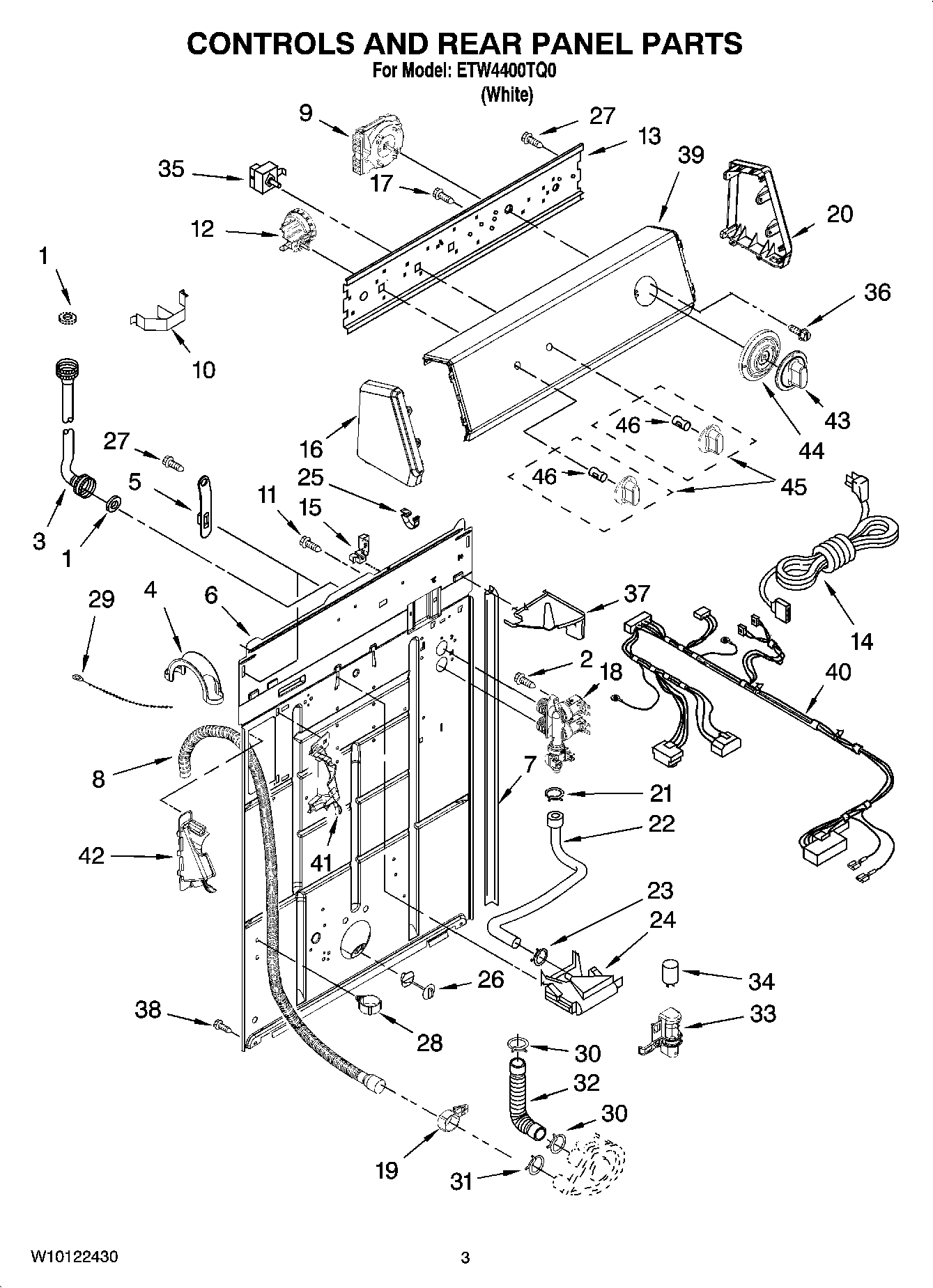

ETW4400TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8546685 Whirlpool Timer
10	Clip, Harness & Pressure Hose
11	WP3351614 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (R.H.)
17	3400073 Whirlpool Screw
18	WP8578343 Whirlpool Valve
19	8541668 Whirlpool Washer Clamp
20	Cap, End (L.H.)
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8312709 Whirlpool Endcap Clip
26	WP8519200 Whirlpool Support Assembly
27	WP90767 Whirlpool Screw
28	Clamp, Hose
29	WPW10339879 Whirlpool Wire Tie
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Capacitor
34	CAPACITOR
35	WP8578338 Whirlpool Dishwasher Temperature Switch
36	WP3400818 Whirlpool Screw
37	WPL 8539874
38	WP3390631 Whirlpool Screw
39	Panel, Console
40	Harness, Wiring (For Detail See Pages 9 & 10)
42	WPW10096921 Whirlpool Hose
43	Knob, Timer
44	Dial, Timer
45	WPW10110063 Whirlpool Knob
46	WP8536939 Whirlpool Spring Clip
