ETW4400VQ2 01 – TOP AND CABINET PARTS

ETW4400VQ2 01 – TOP AND CABINET PARTS

Written by

in

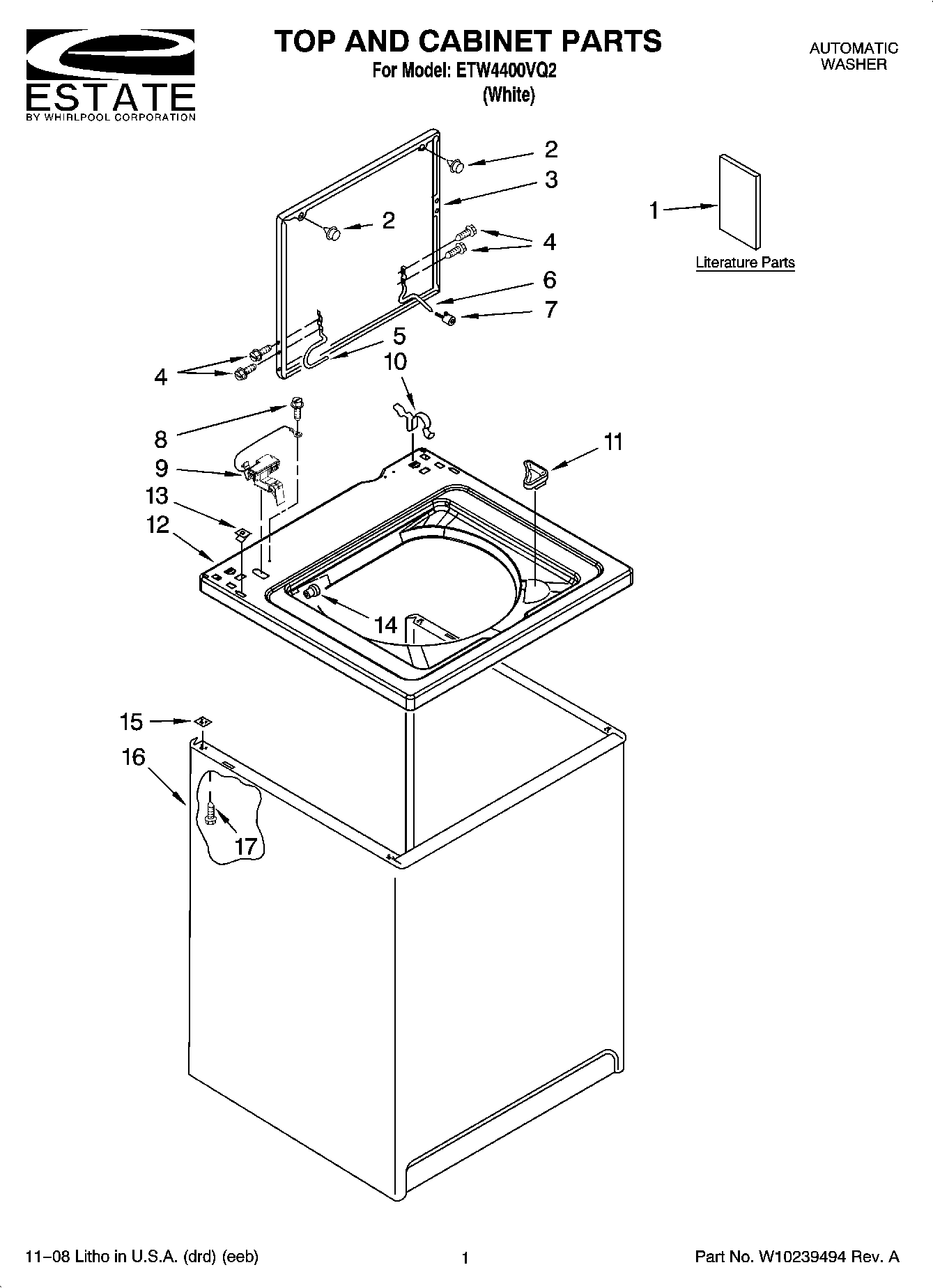

ETW4400VQ2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Installation Instructions (English/French)
1Installation Instructions (Spanish)
1Feature Sheet (English/French)
1Wiring Diagram
1Use & Care Guide (English/French)
1Feature Sheet (Spanish)
1Use & Care Guide (Spanish)
2WP9724509 Whirlpool Bumper
3WPW10193857 Whirlpool Lid Assembly
4SCREW
58318088 Whirlpool Hinge Assembly
6WP54583 Whirlpool Hinge
7Bumper, Lid Hinge
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP62780 Whirlpool Cabinet Clip
11WP3362952 Whirlpool Bezel
12Top (White)
13WP357213 Whirlpool Hinge Stopper
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WP62750 Whirlpool Spacer
1663424 Whirlpool Cabinet Assembly
17WP3390631 Whirlpool Screw
