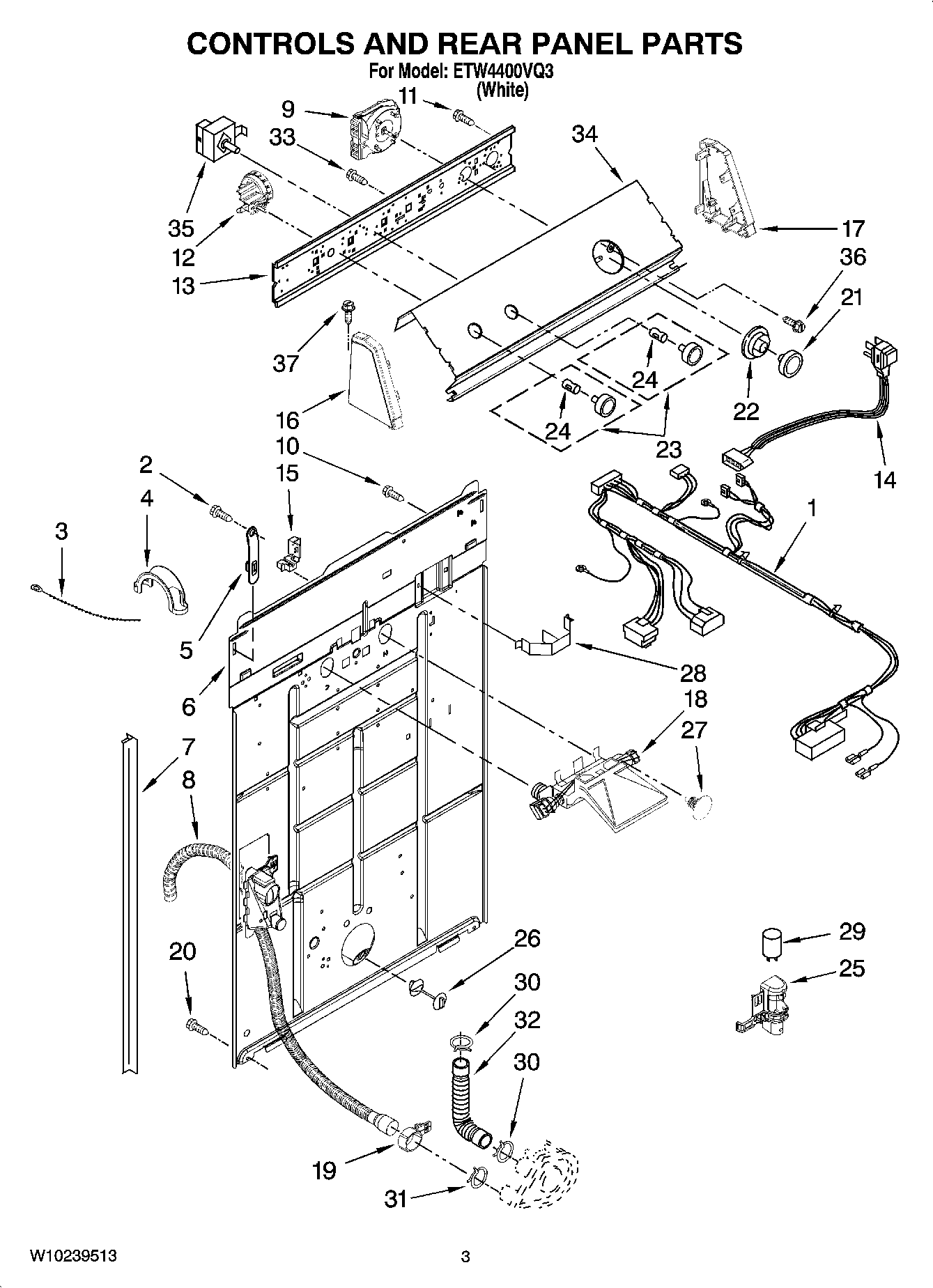

ETW4400VQ3 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Harness, Wiring (For Detail See Pages 9 & 10)
2WP9740848 Whirlpool Dishwasher Screw
3WPW10339879 Whirlpool Wire Tie
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6WPW10194450 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WPW10189267 Whirlpool Drain Hose
9WPW10199989 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339334 Whirlpool Washer Water Level Control Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17279960 Whirlpool Endcap Assembly
18WPW10140917 Whirlpool Valve
198541668 Whirlpool Washer Clamp
20WP3390631 Whirlpool Screw
21WP8538949 Whirlpool Knob
22WP8538955 Whirlpool Dial
23KNOB
24WP8536939 Whirlpool Spring Clip
25Clip, Capacitor
26WP8519200 Whirlpool Support Assembly
27Clip, Push-In Retainer
28Clip, Harness & Pressure Hose
29CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
333400073 Whirlpool Screw
34Panel, Console
35WP8578337 Whirlpool Water Temperature Switch
36WP3400818 Whirlpool Screw
37WP388326 Whirlpool Screw
