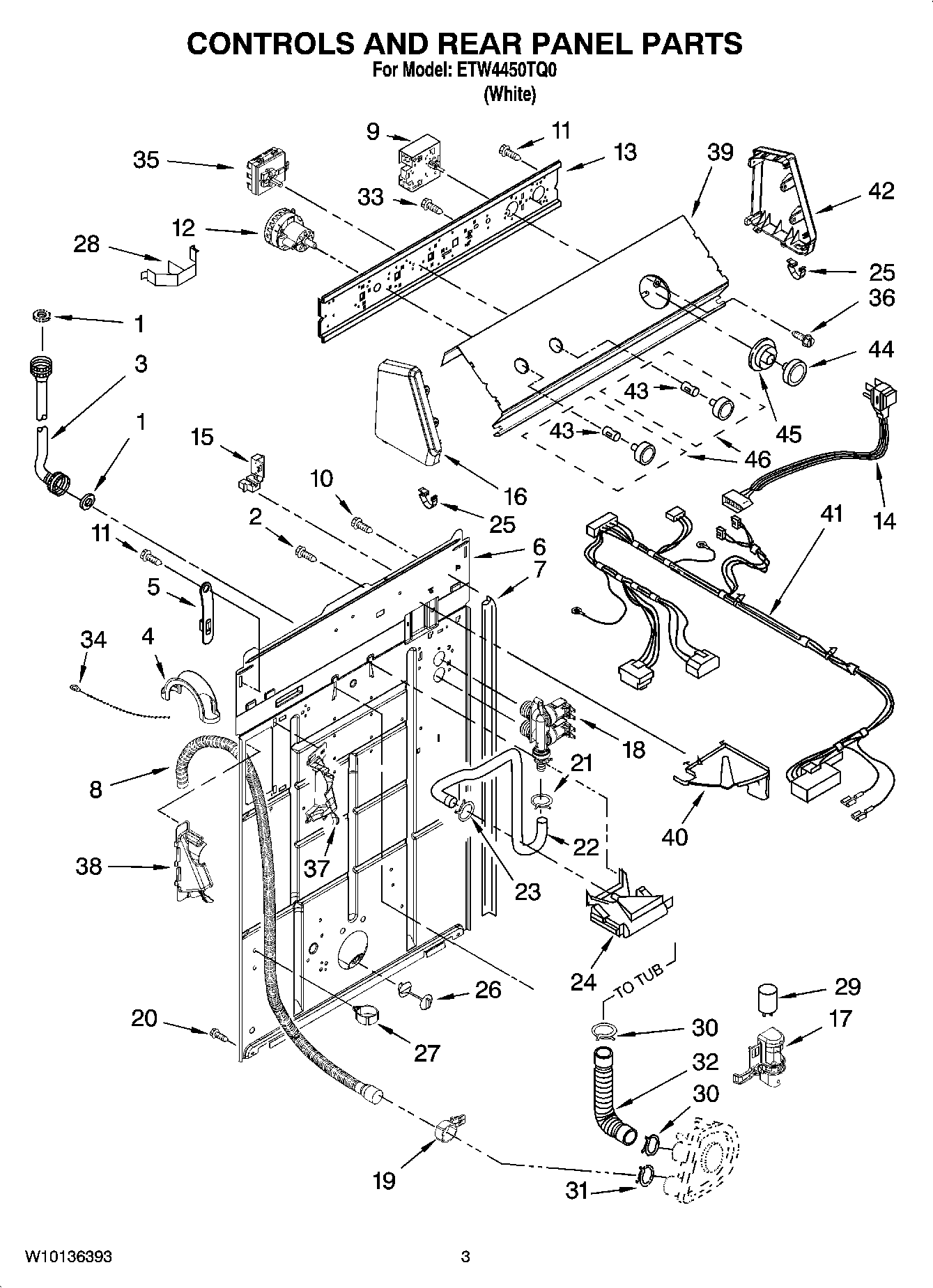

ETW4450TQ0 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
ETW4450TQ0 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP16123 Whirlpool Washer
2
WP9740848 Whirlpool Dishwasher Screw
3
FILL HOSE 5' W/WASHER
3
WP89503 Whirlpool Washer Fill Hose
4
WP8577378 Whirlpool Retainer
5
WP8568314 Whirlpool Strap
6
Panel, Rear
7
WP62747 Whirlpool Pad
9
WP8546685 Whirlpool Timer
10
WP3351614 Whirlpool Screw
11
WP90767 Whirlpool Screw
12
W10339251 Whirlpool Washer Water Level Control Pressure Switch
13
Bracket, Control
14
Cord, Power (Includes Item 15)
15
Strain Relief, Power Cord
16
Cap, End (L.H.)
17
Clip, Capacitor
18
WP3979346 Whirlpool Water Inlet Valve
19
8541668 Whirlpool Washer Clamp
20
WP3390631 Whirlpool Screw
21
WP596669 Whirlpool Hose Clamp
22
HOSE
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
WP8312709 Whirlpool Endcap Clip
26
WP8519200 Whirlpool Support Assembly
27
Clamp, Hose
28
Clip, Harness & Pressure Hose
29
CAPACITOR
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
3400073 Whirlpool Screw
34
WPW10339879 Whirlpool Wire Tie
35
WPW10184148 Whirlpool Temperature Switch
36
WP3400818 Whirlpool Screw
38
WPW10096921 Whirlpool Hose
39
Panel, Console
40
WPL 8539874
41
Harness, Wiring (For Detail See Page 9 & 10)
42
Cap, End (R.H.)
43
WP8536939 Whirlpool Spring Clip
44
Knob, Timer
45
Dial, Timer
46
WPW10110063 Whirlpool Knob
←
