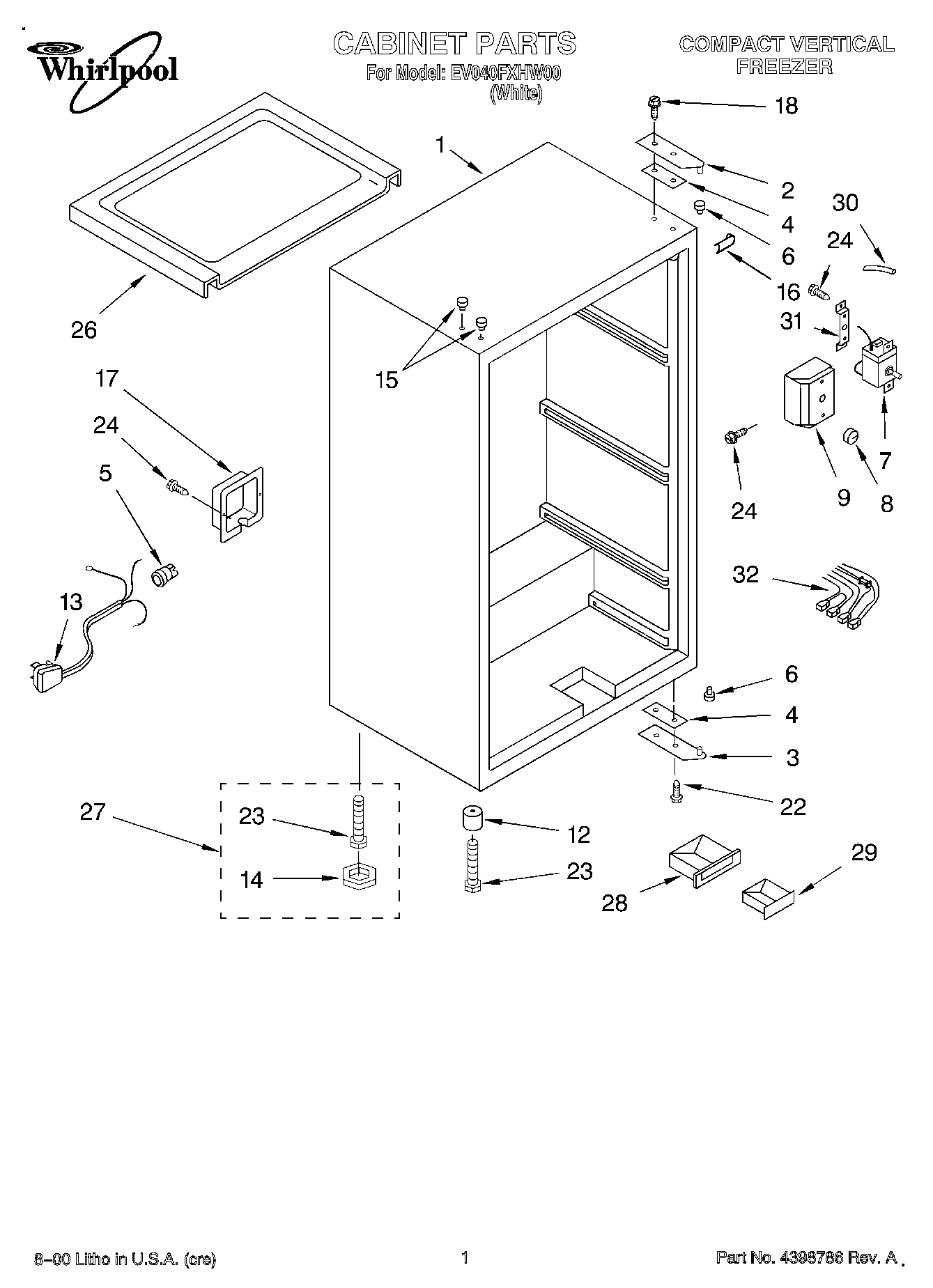

EV040FXHW00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
24312436 Whirlpool Door Hinge
34312505 Whirlpool Refrigerator Door Hinge
4Shim, Hinge
5Strain Relief
6Bushing
7Thermostat
8Knob, Thermostat
9Control Box
124312445 Whirlpool Refrigerator Leveler
13W10080120 Whirlpool Power Cord
14Cap, Leveler
15Hole Plug (White)
16Filler, Wrapper
17Box, Junction
18Screw
22Screw
23Leveler
24Screw
26Cover, Cabinet
27Kit, Leg Leveler
28Cup, Drain
29Cup, Drain Gutter
30Tube, Thermostat Barrier
31Bracket, Thermo.
32Wiring Harness
