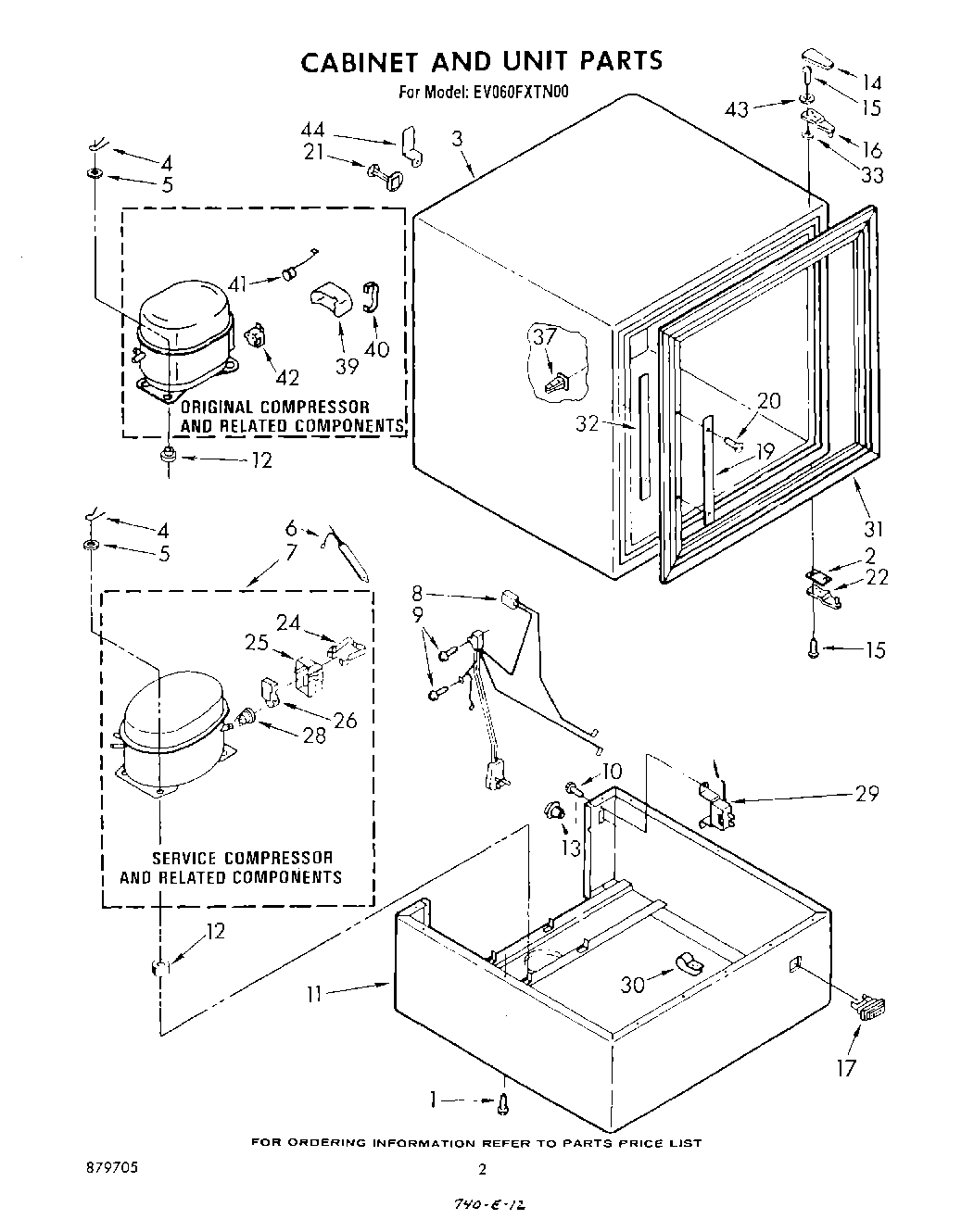

EV060FXTN00 02 – SECTION

Written by

Products

Position	Product
	350956 Whirlpool Spray Assembly
	Leveler (Thinner) (2oz.)
	WPL LIT656493
	WPL LIT728839
	285006 Whirlpool Spray
	WPL LIT730925
	WPL LIT879705
	WPL LIT730638
1	Screw
2	Spacer, Hinge
3	Cabinet (Not A Serviceable Part)
4	Clip (4)
5	Washer
6	Drier
7	Compressor (Service Replacement) (Includes Items 13, 14, 15, 16 & 17)
8	Harness, Wiring
9	Screw
10	Screw
11	Base, Cabinet
12	876811 Whirlpool Grommet
13	Knob, Control
14	Cover, Hinge
15	Screw
16	Hinge, Top
17	Light, Indicator
19	Strike, Door
20	Screw
21	Spacer (2)
22	Hinge, Bottom
23	Grommet
26	Relay
28	Overload
29	Control
30	Clamp, Wire
31	Collar
32	Plate, Strike
33	Lockwasher (3)
37	Grommet
39	Cover
40	Strap
41	Overload (Used W/ Original Compressor)
42	Relay, Start (Used W/ Original Compressor)
43	WP487802 Whirlpool Refrigerator Washer
43	WP487576 Whirlpool Washer
44	WP72107 Whirlpool Touchup
44	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
44	833938 Whirlpool Refrigerator Terminal
44	VALVE, ACCESS (1/2“)
44	Almond (Uncut)
44	72032 Whirlpool Touch Up Paint Black
44	VALVE, ACCESS (5/8“)
44	WP978025 Whirlpool Refrigerator Valve
44	978026 Whirlpool Refrigerator Primary Valve
44	Transformer (115-230 Volt)
44	978027 Whirlpool Refrigerator Primary Valve
44	Enamel, Black (1 Qt. Uncut)
44	606755 Whirlpool Refrigerator Bag
44	978030 Whirlpool Refrigerator Valve
44	WP505587 Whirlpool Refrigerator Sealer
44	212643 Whirlpool Refrigerator Permagum Sealer
44	Kit, Insulation (Door Only)
44	Clip, Cord Plug
