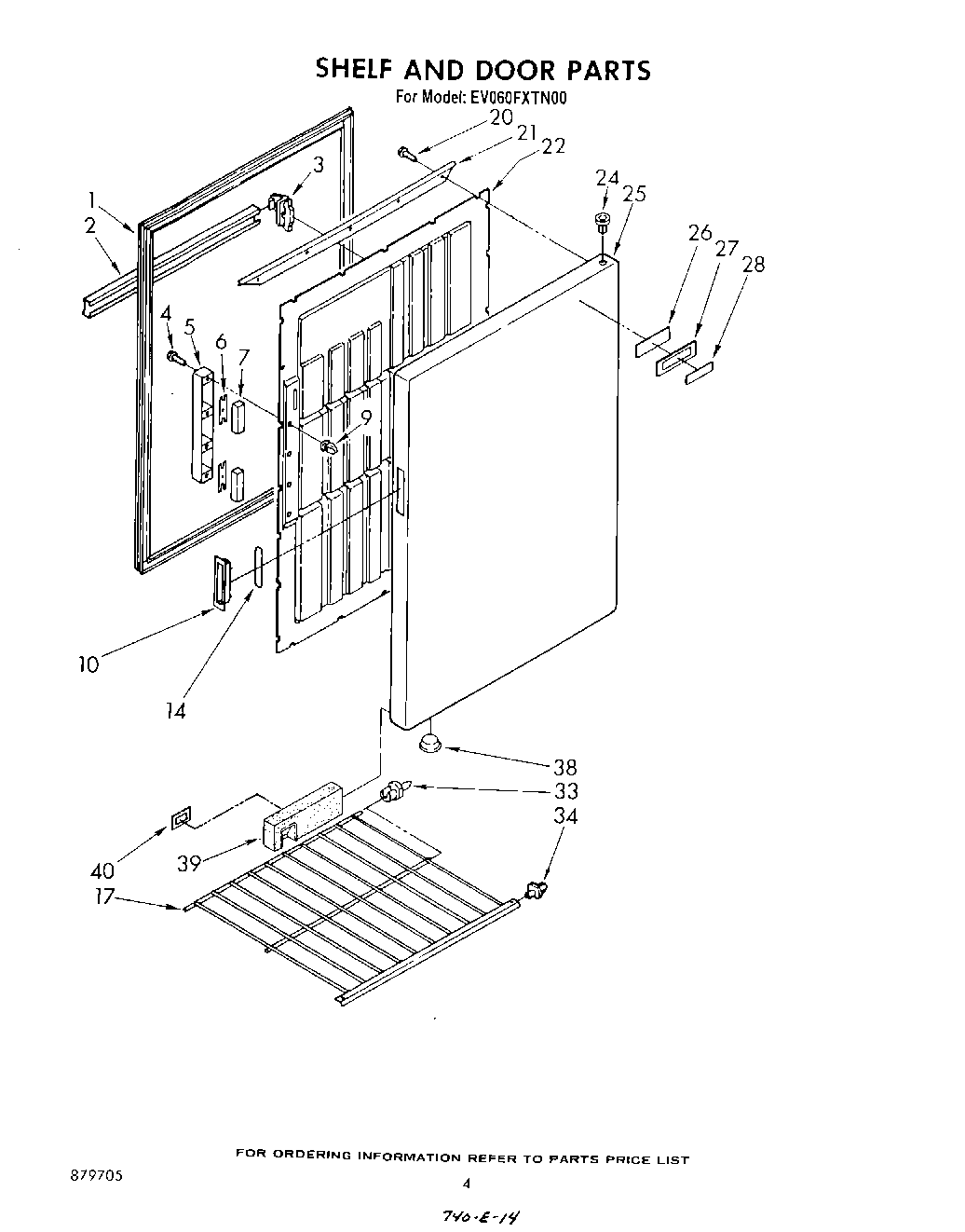

EV060FXTN00 03 – SECTION

Products

PositionProduct
1Gasket, Door
2Trim, Door Shelf (3)
3Retainer, Trim (8)
4Screw
5Cover, Magnet
6Retainer, Magnet (2)
7Magnet (2)
9Grommet
10Handle, Door
14Gasket, Handle
17Shelf, Wire
20W11624204 Whirlpool Screw
21Retainer, Gasket Top & Bottom (2)
22PANEL, INTERIOR Door
24Bearing, Hinge (2)
25Panel, Exterior Door
26Tape Strip
27WPL 849310
28Insert, Nameplate
33Stud, Shelf Back (L.S.) (6)
33Stud, Shelf Back (R.S.) (6)
34Stud, Shelf Front (4)
38Plug, Vent
39Insulation Block (Vented)
40Gasket, Vacuum Relief
