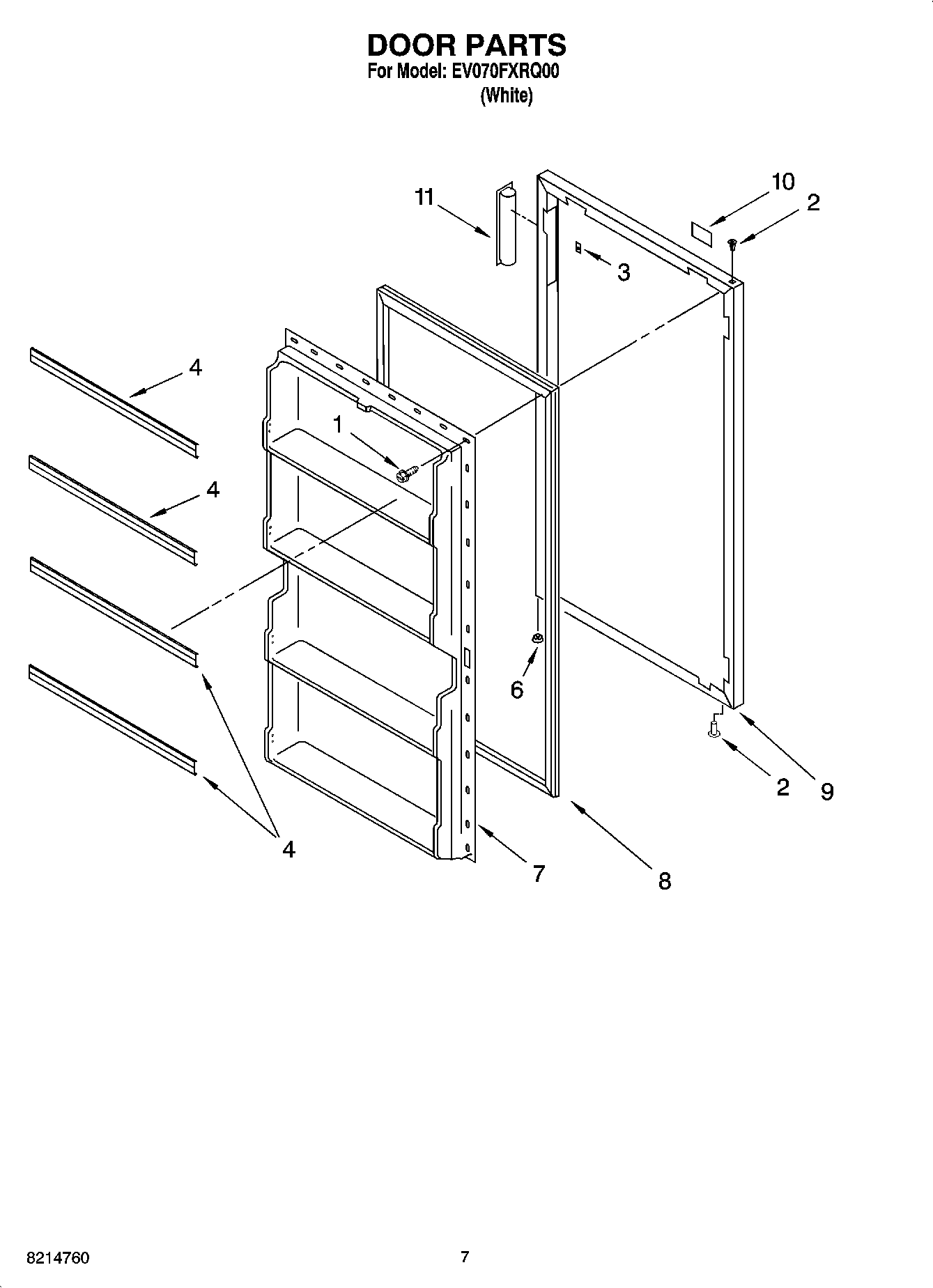

EV070FXRQ00 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

EV070FXRQ00 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

EV070FXRQ00 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350956 Whirlpool Spray Assembly
Miscellaneous
REFINISHING MATERIAL
Customer Touch-Up Material
Parts Not Illustrated and Optional Parts (Not Included)
Enamel (Almond) (1 Qt. Uncut)
TAPE, VINYL (3/4 X 108“)
212643 Whirlpool Refrigerator Permagum Sealer
WP505587 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
WP72107 Whirlpool Touchup
WP503695 Whirlpool Refrigerator Sealer
14390598 Whirlpool Refrigerator Screw
24390731 Whirlpool Refrigerator Hinge Bushing
33-24059-024 Whirlpool Refrigerator Handle Clip
4Rail, Door Shelf (4)
63-24898-007 Whirlpool Refrigerator Vent Plug
7Door, Interior (Includes Item 1)
8Gasket (White)
9Door, Exterior
10Nameplate (White)
11Handle
