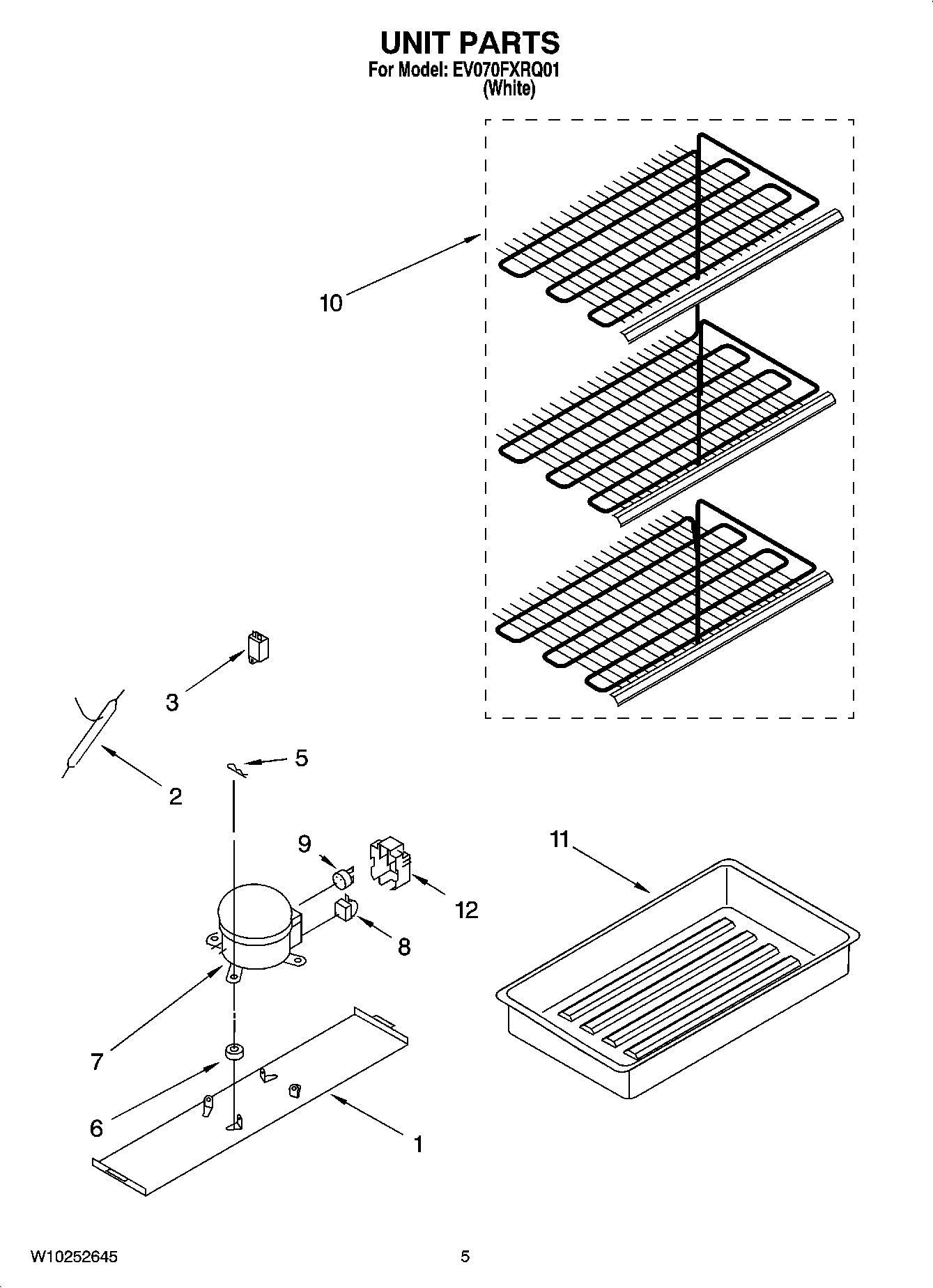

EV070FXRQ01 03 – UNIT PARTS

Written by

Products

Position	Product
1	Compressor Mounting Pan
2	W10843121 Whirlpool Refrigerator Tube
3	Capacitor
5	COMPRESSOR, HITCH PIN
6	Grommet, Mounting Compressor
7	W10823815 Whirlpool Refrigerator Compressor
8	Relay
9	Overload
10	Evaporator Shelf Assembly (Includes All 3 Shelves)
11	Pan, Drain
12	Cover
12	REFRIGERANT CHARGE 5.6 oz. (R-134A)
